Description

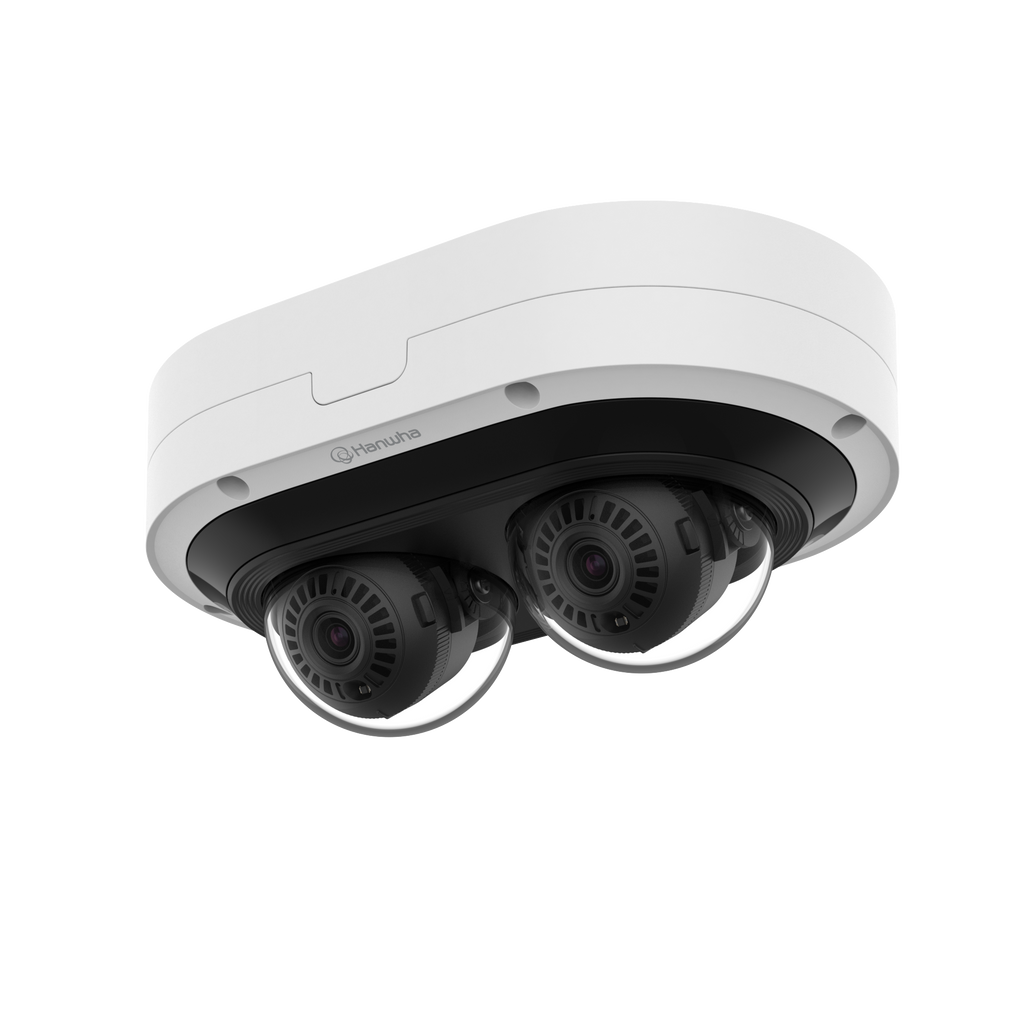

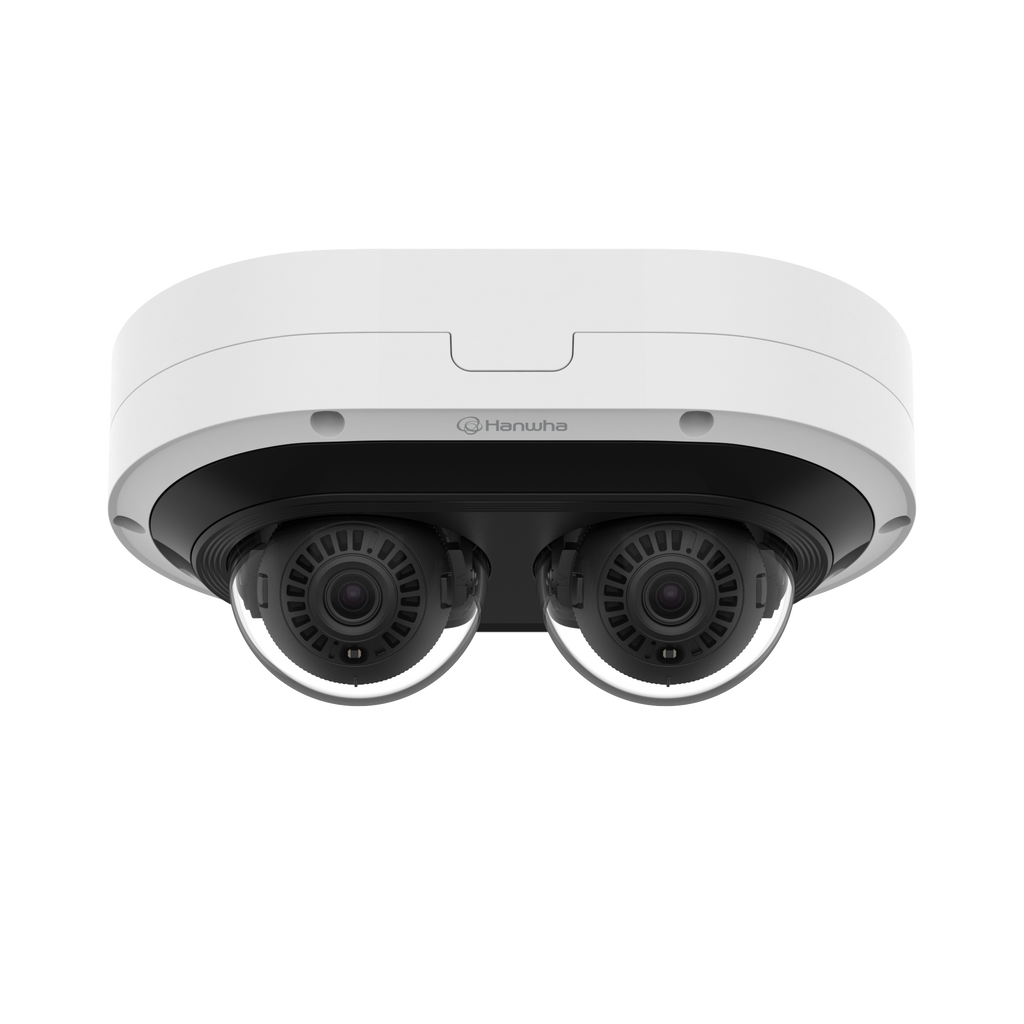

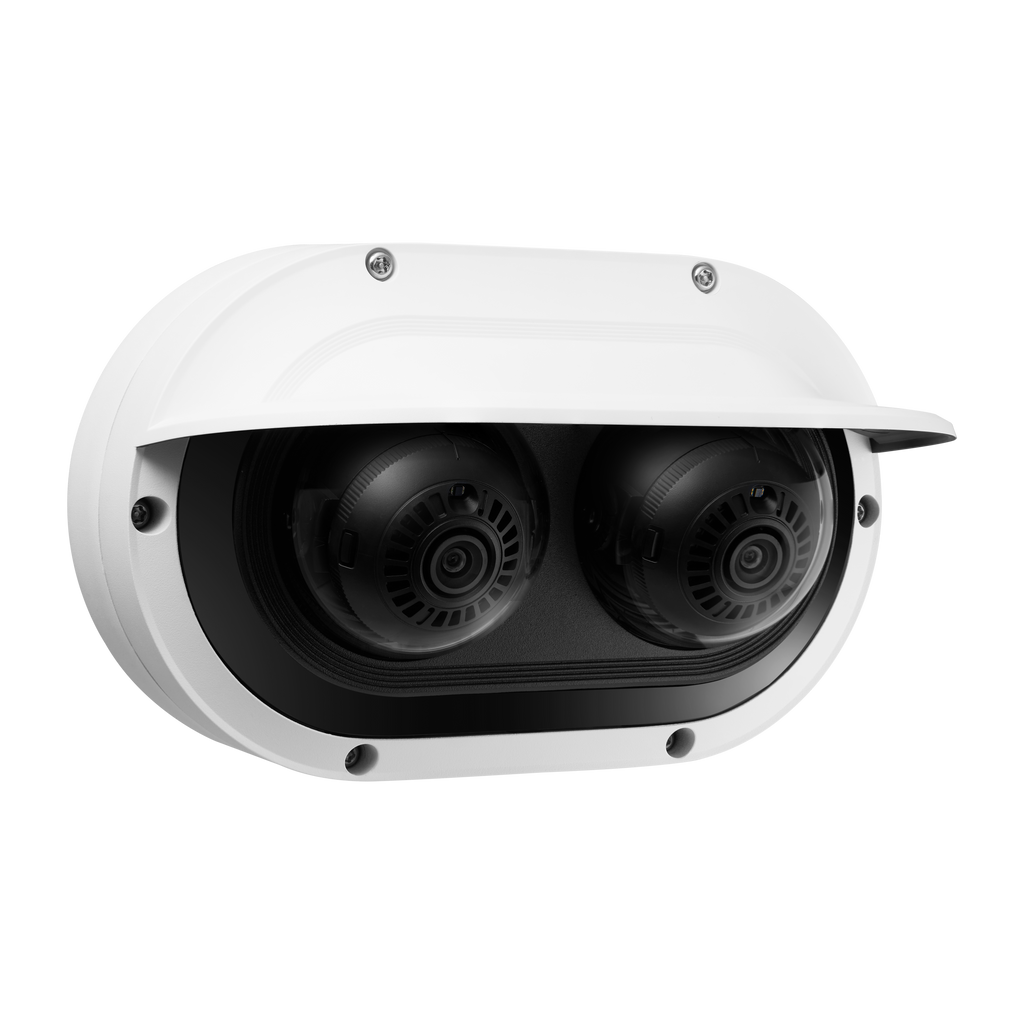

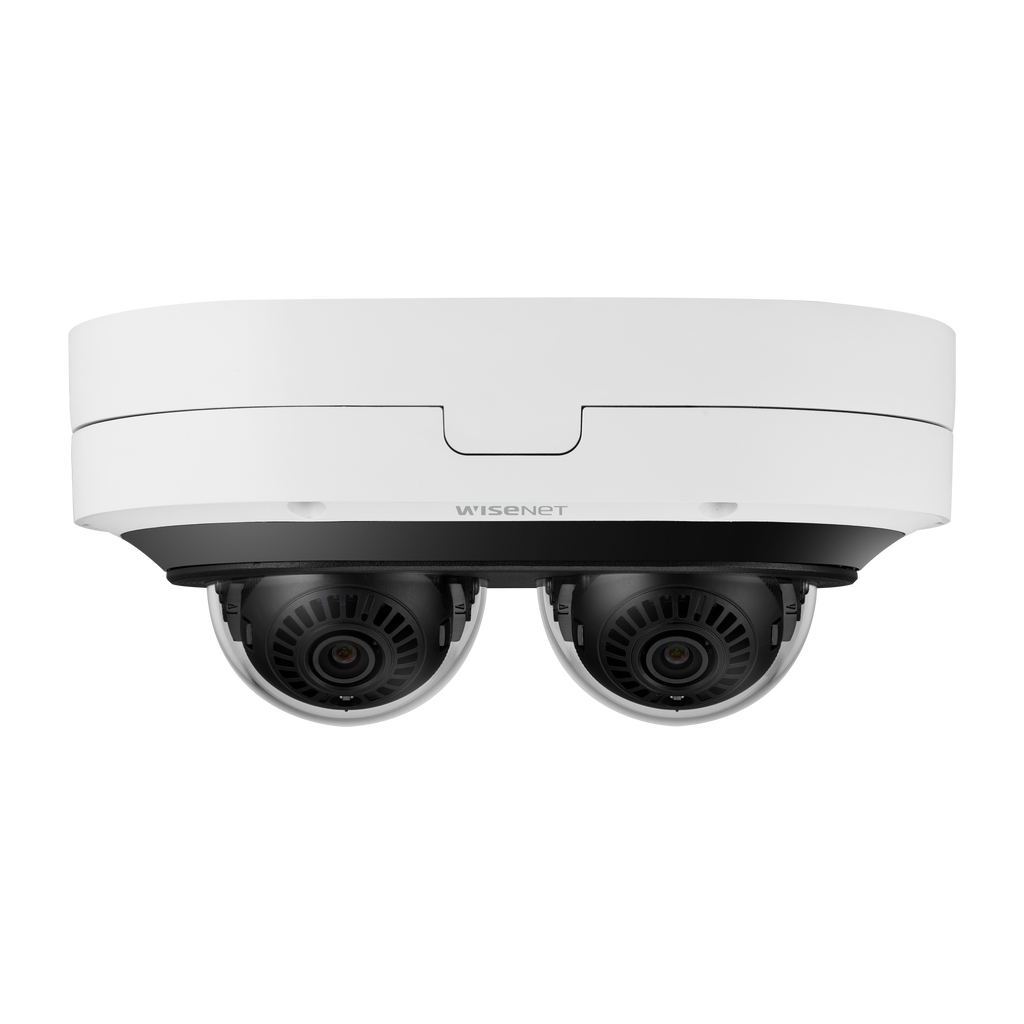

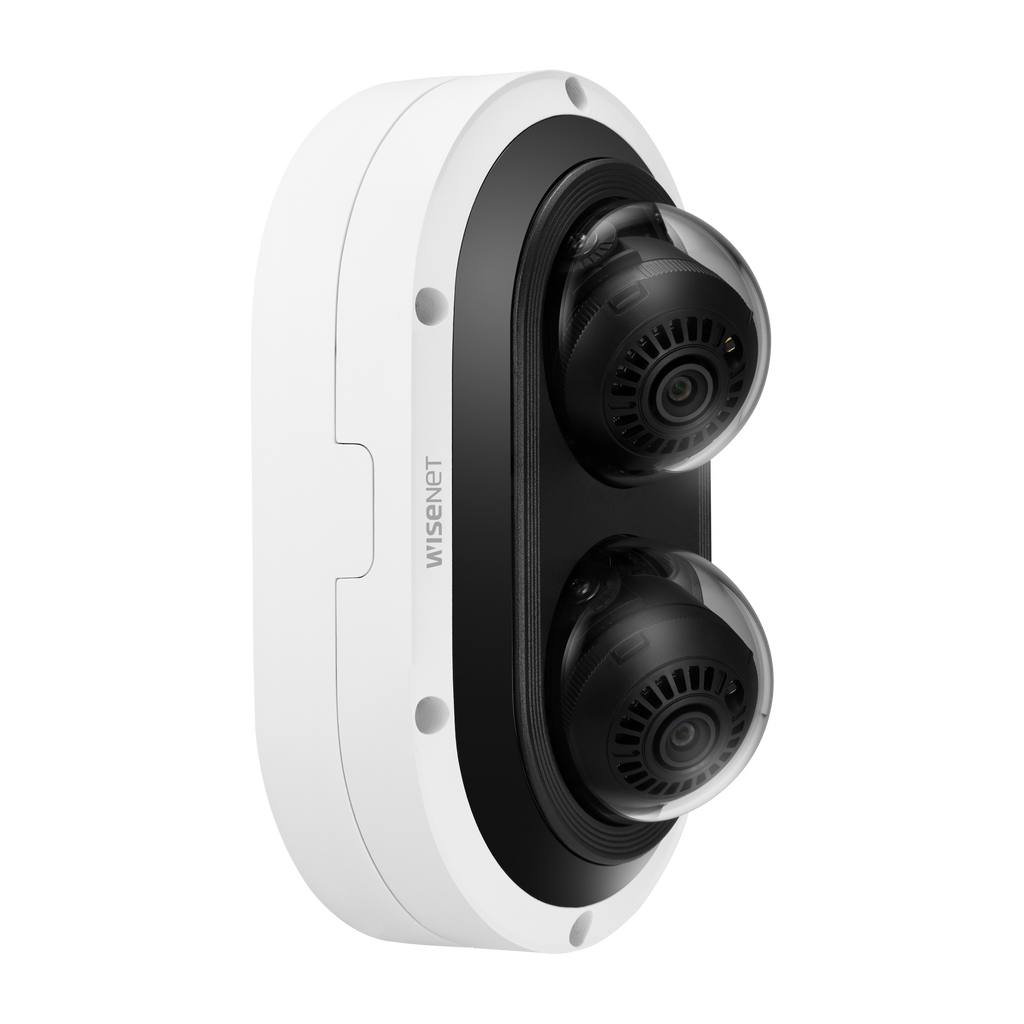

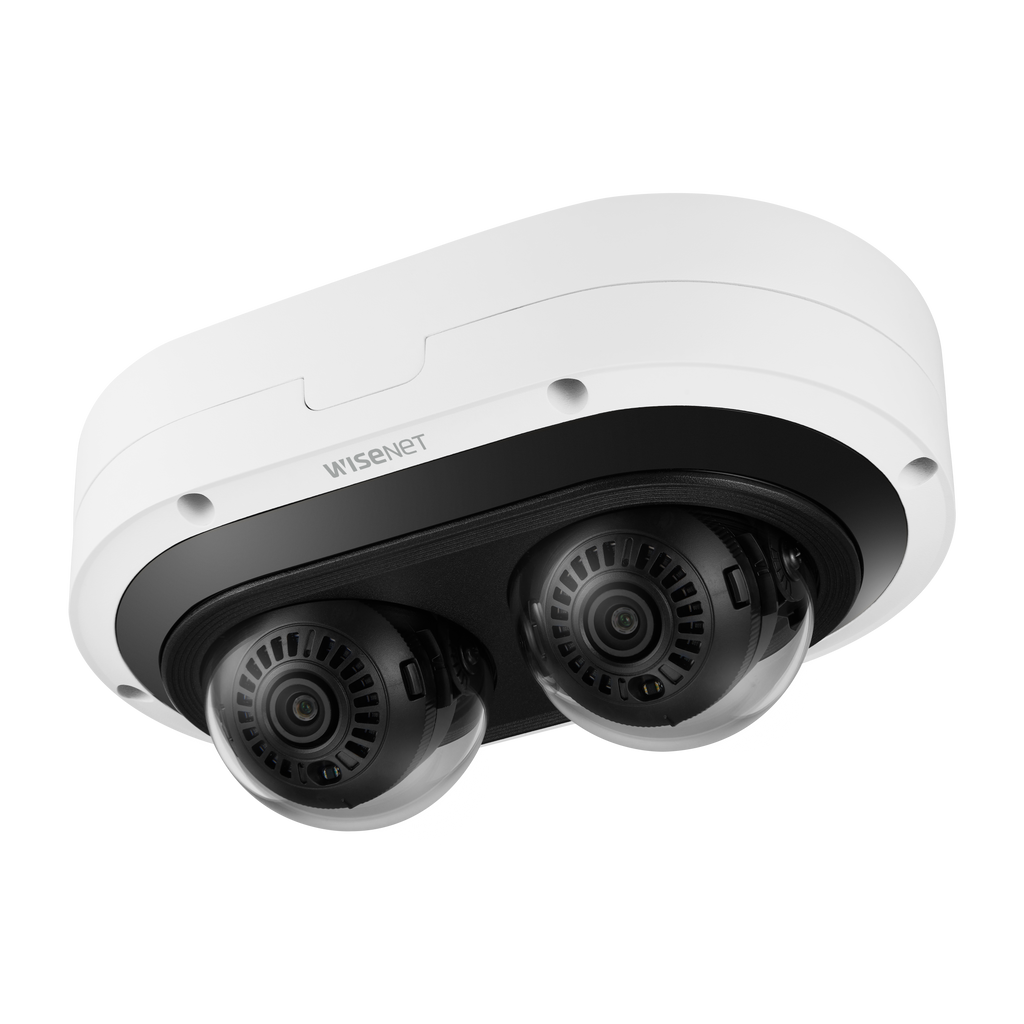

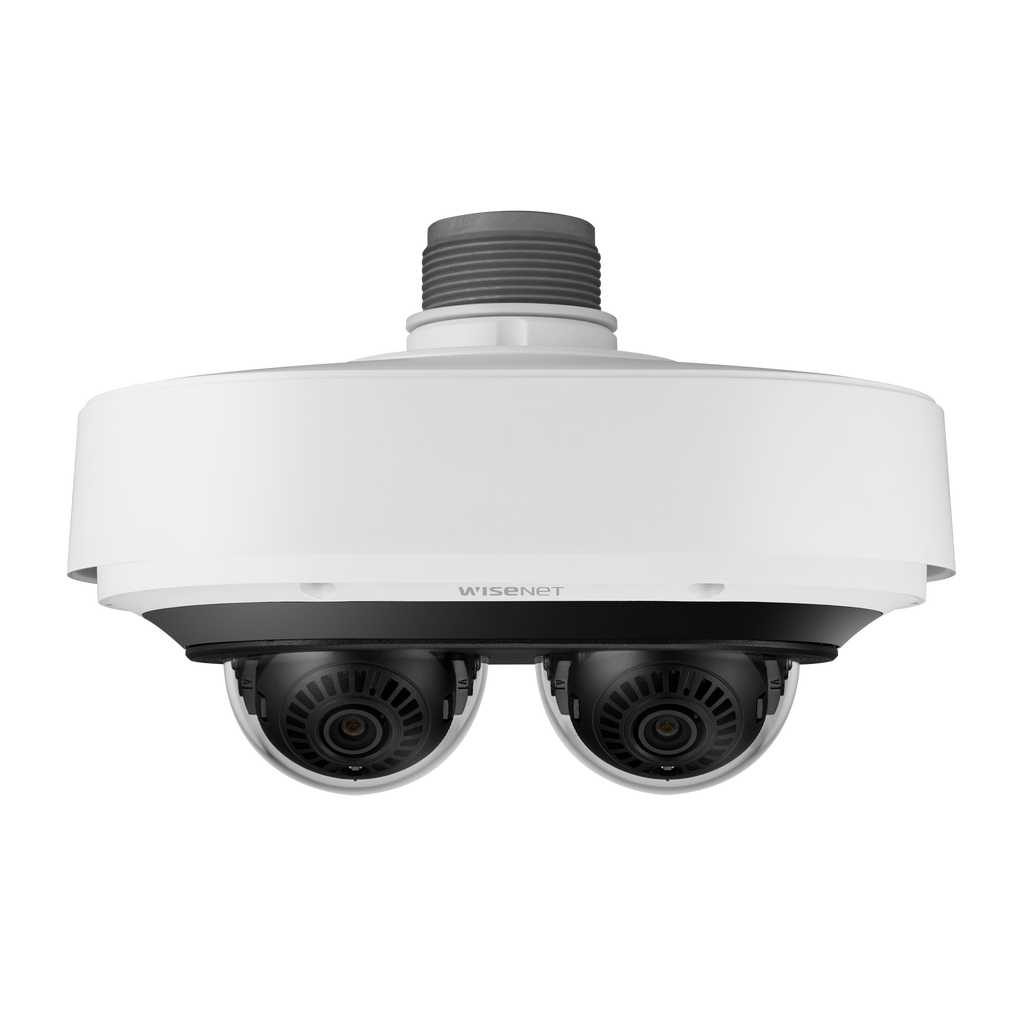

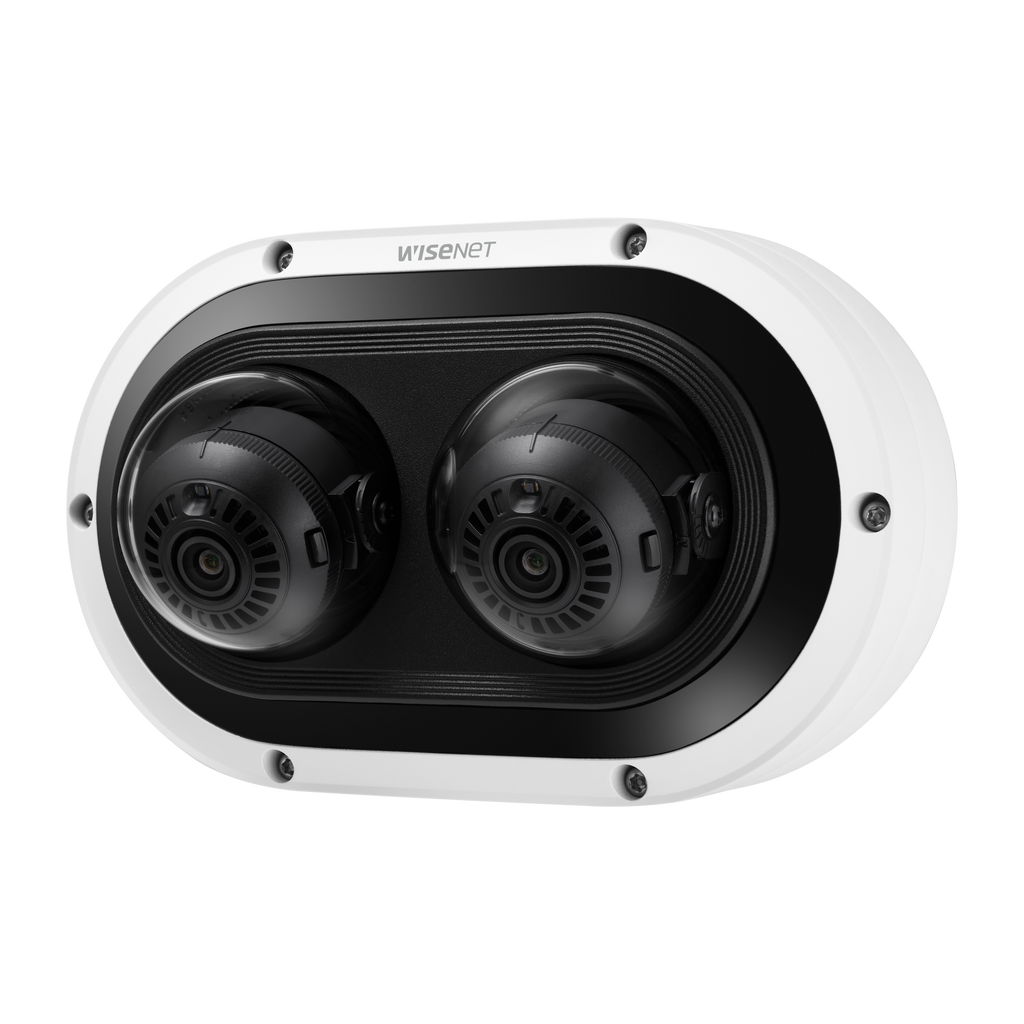

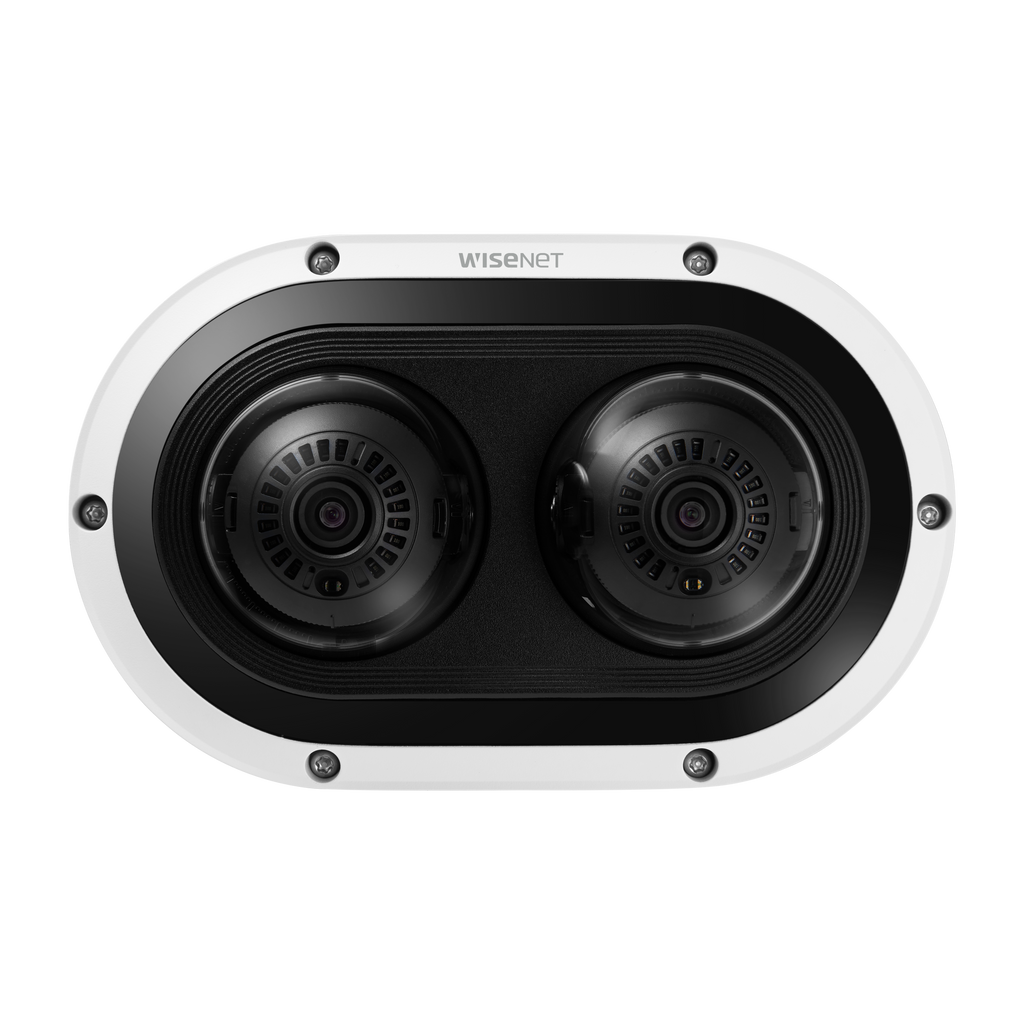

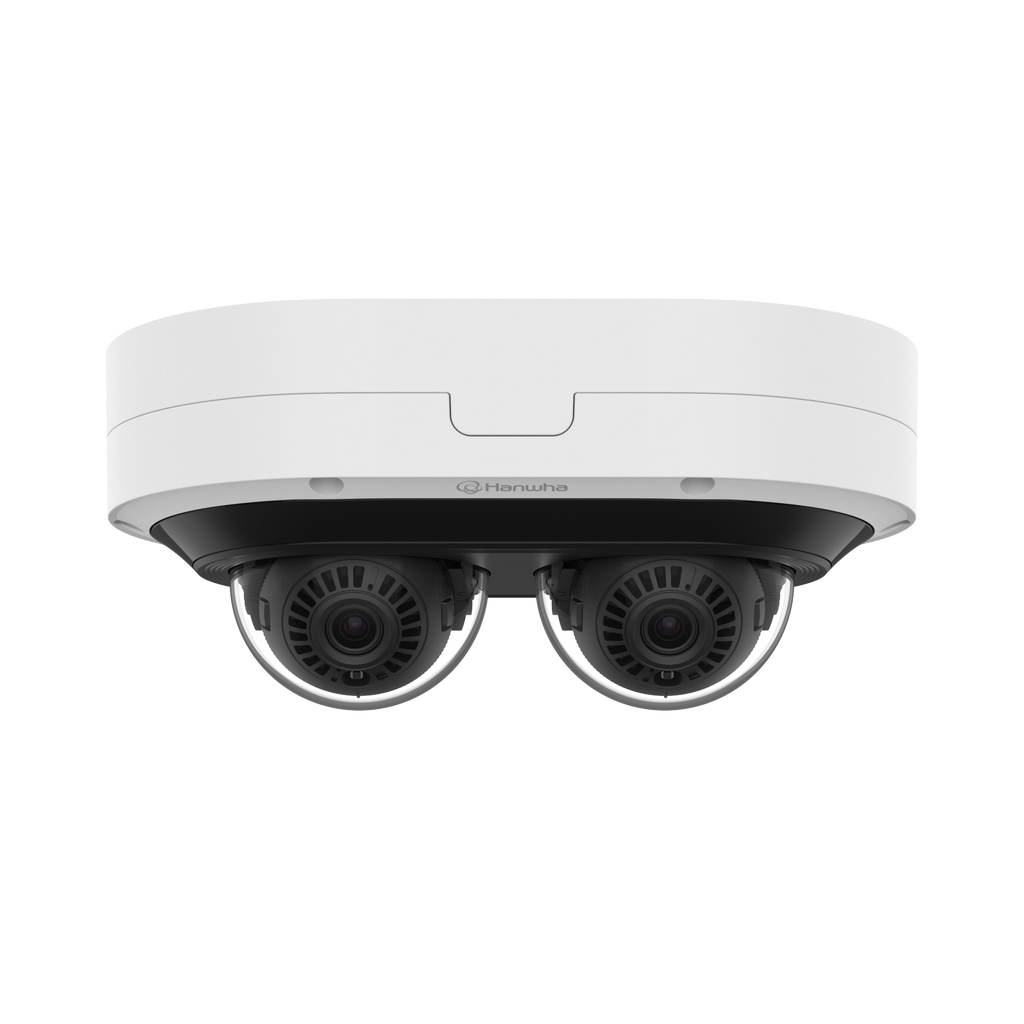

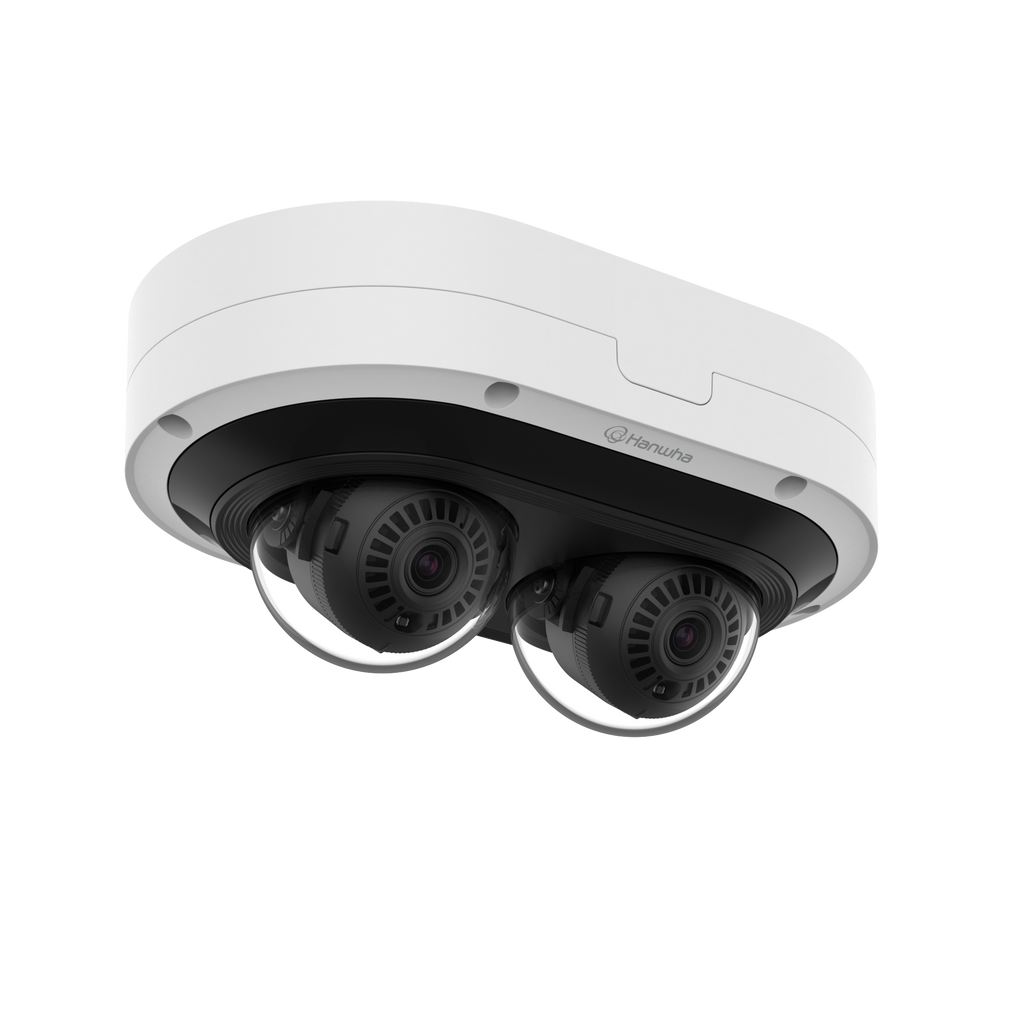

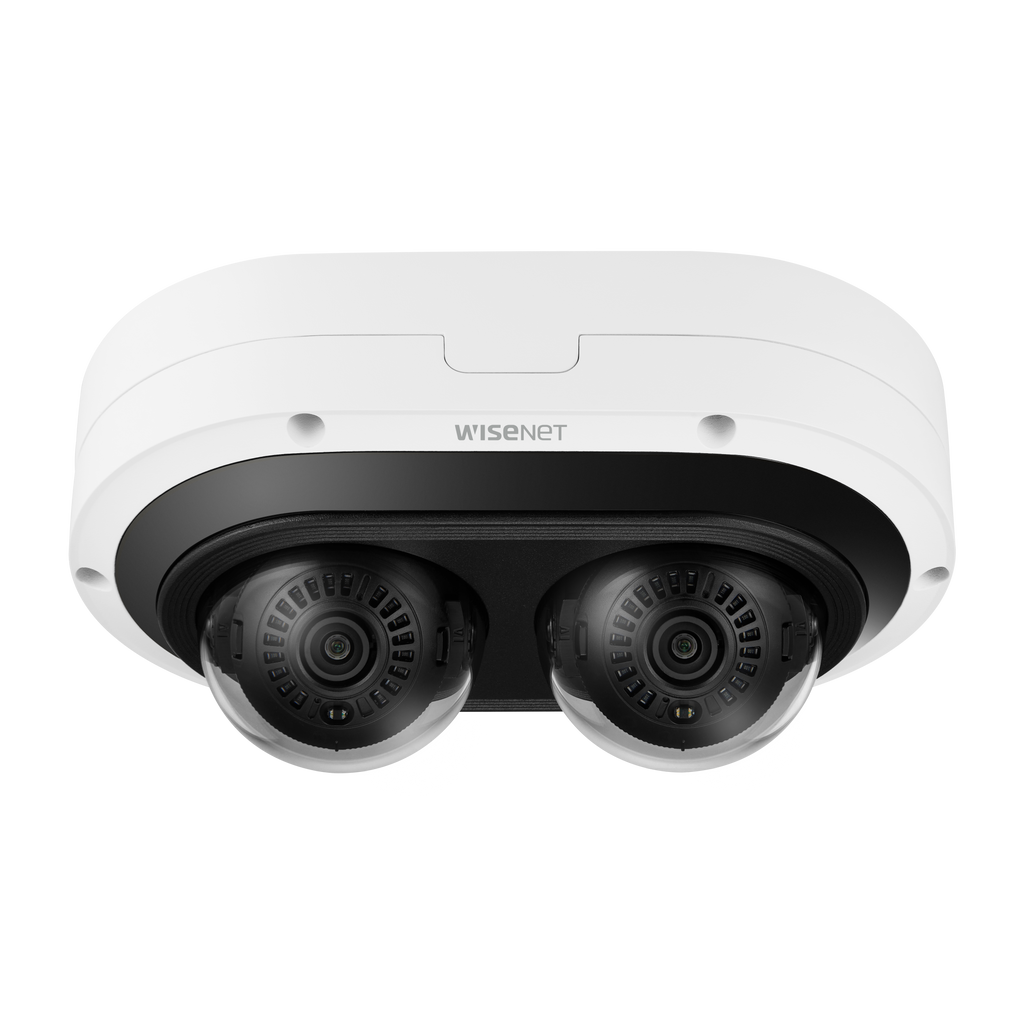

The Hanwha Vision PNM-C12083RVD/KEX is a dual-channel 6MP AI multi-directional camera engineered for high-accuracy object detection, smart analytics, and flexible wide-area coverage. Built with advanced deep-learning AI, it classifies people, faces, vehicles, and license plates, including detailed vehicle attributes such as type and movement behavior.
Designed for professional deployments, each channel delivers up to 3328×1872 resolution at 15fps with powerful imaging enhancements including Extreme WDR (120dB), WiseNR II (AI-based noise reduction), Auto prefer shutter control, and WiseStream III smart codec optimization. Its motorized varifocal lenses and flexible pan/tilt/rotate design allow precise coverage configuration for complex scenes.
With built-in IR up to 25m, robust IP66/IK10/NEMA4X protection, TPM 2.0 with FIPS 140-2 Level 2 security, PoE+ support, and optional I/O/audio expansion, this camera is ideal for government, critical infrastructure, campus, and commercial security environments requiring TAA-compliant and cybersecurity-hardened hardware.
| Category | Specification |
|---|---|
| SKU | PNM-C12083RVD/KEX |
| Camera Type | Dual-channel 6MP AI multi-directional camera |
| Image Sensor | 1/2.8" CMOS (per channel) |
| Max Resolution | 3328×1872 (per channel) |
| Frame Rate | Up to 15fps (H.265/H.264/MJPEG) |
| Min. Illumination | Color: 0.16 lux; B/W: 0.016 lux; 0 lux with IR |
| Lens | 3.54–6.69mm motorized varifocal |
| Horizontal FOV | 96°–47° |
| Vertical FOV | 51°–26° |
| IR Illumination | Up to 25m (per scene) |
| AI Analytics | Person/Face/Vehicle/License Plate classification, Vehicle type attributes, BestShot, line crossing, intrusion, loitering, enter/exit |
| Imaging Enhancements | Extreme WDR 120dB, WiseNR II, SSDR, LDC, Auto ICR |
| Video Compression | H.265, H.264 (Main/Baseline/High), MJPEG |
| Smart Codec | WiseStream III |
| Streaming | Up to 5 profiles, unicast/multicast |
| Network Protocols | IPv4/IPv6, TCP/UDP, RTP/RTSP, HTTP/HTTPS, QoS, SNMP, UPnP, Bonjour, LLDP, SRTP |
| Security Features | Secure boot, signed firmware, encrypted credentials, HTTPS/SRTP, TPM 2.0 (FIPS 140-2) |
| Audio (via optional module) | Audio in/out supported |
| Alarms (via optional module) | Alarm input/output supported |
| Edge Storage | microSD/SDHC/SDXC (up to 512GB), OnCloud up to 1TB |
| Operating Temperature | –40°C to +55°C (–40°F to +131°F) |
| Ingress Protection | IP66, IP67, IK10, NEMA 4X |
| Power Requirements | PoE+ (IEEE 802.3at, Class 4) |
| Power Consumption | Max 21W (typ. 16.5W) |
| Material / Color | Aluminum / White (RAL9003) |
| Dimensions | 215 × 135 × 93.2 mm |
| Weight | 1.33 kg (2.93 lb) |
| Certifications | FCC, CE/UKCA, UL62368-1, IEC62471, RCM, KC, etc. |
