Description

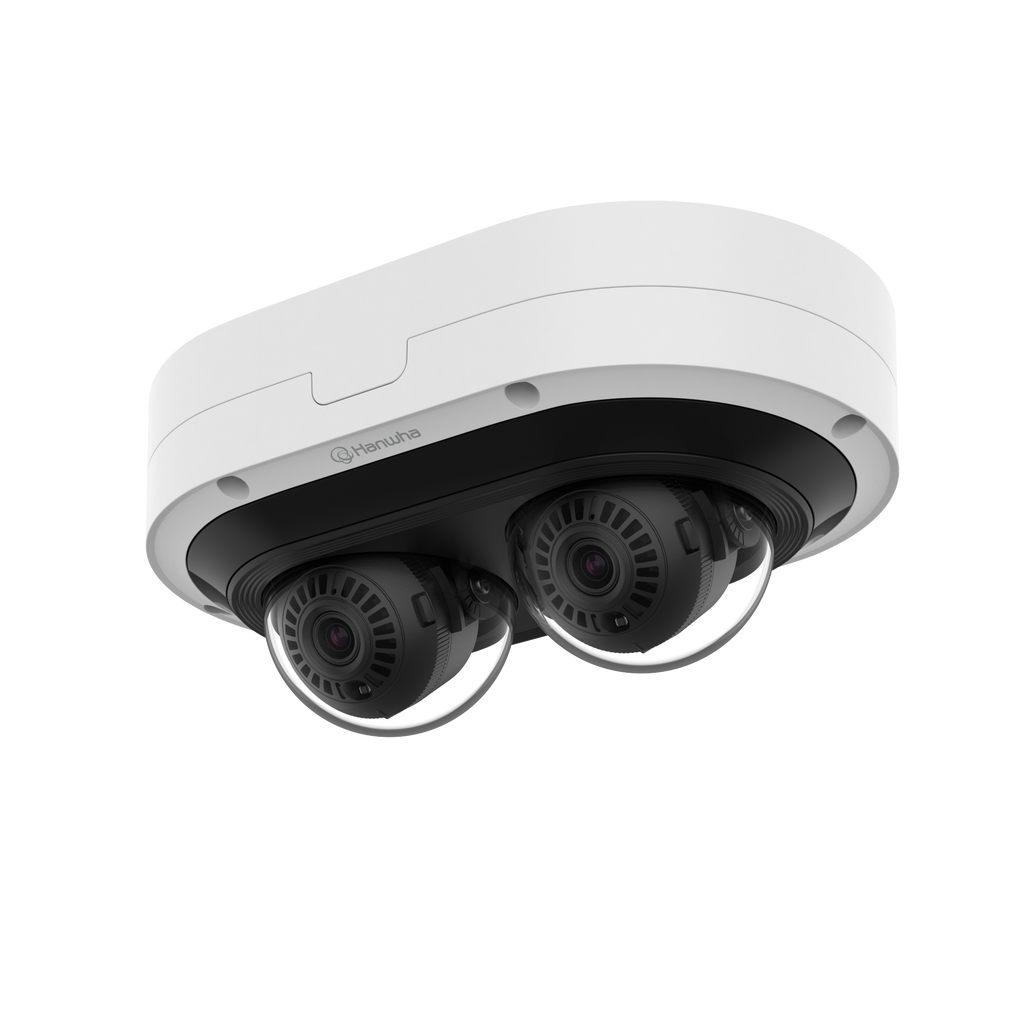

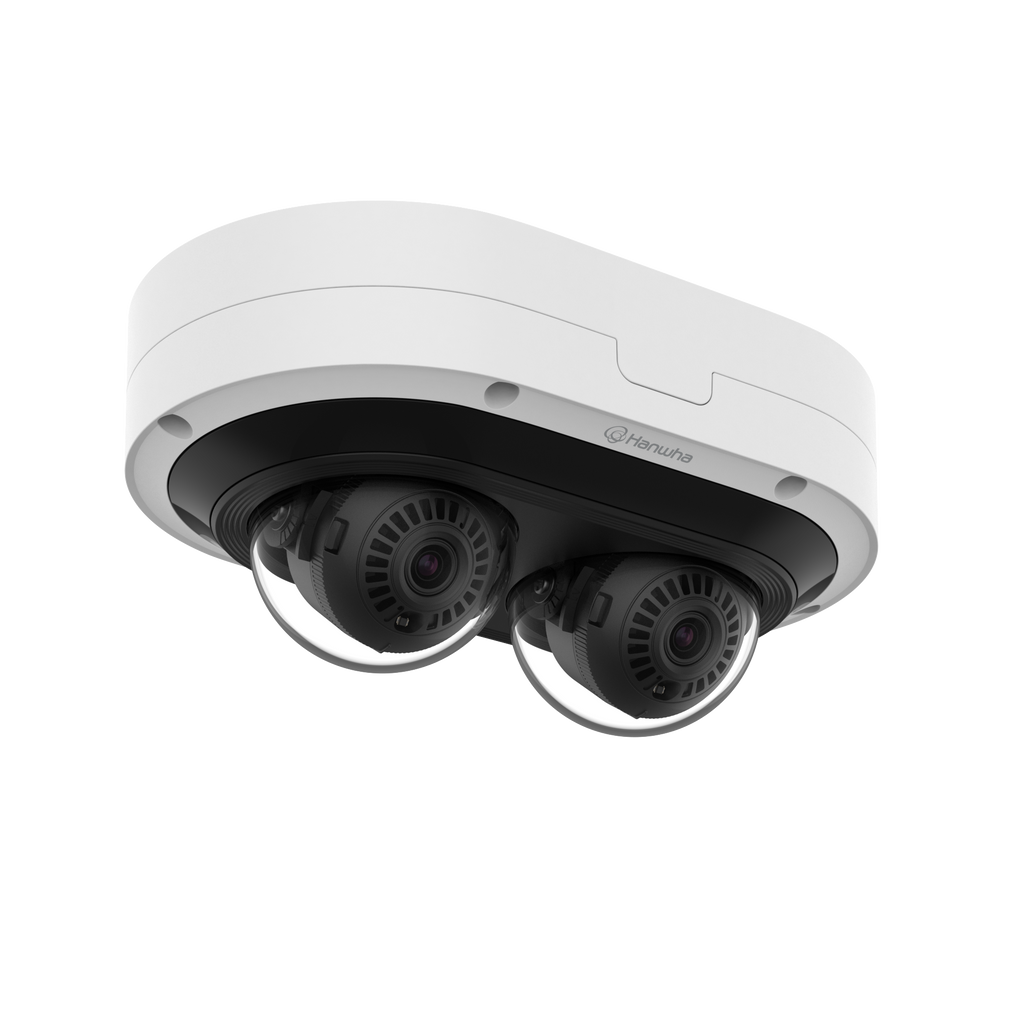

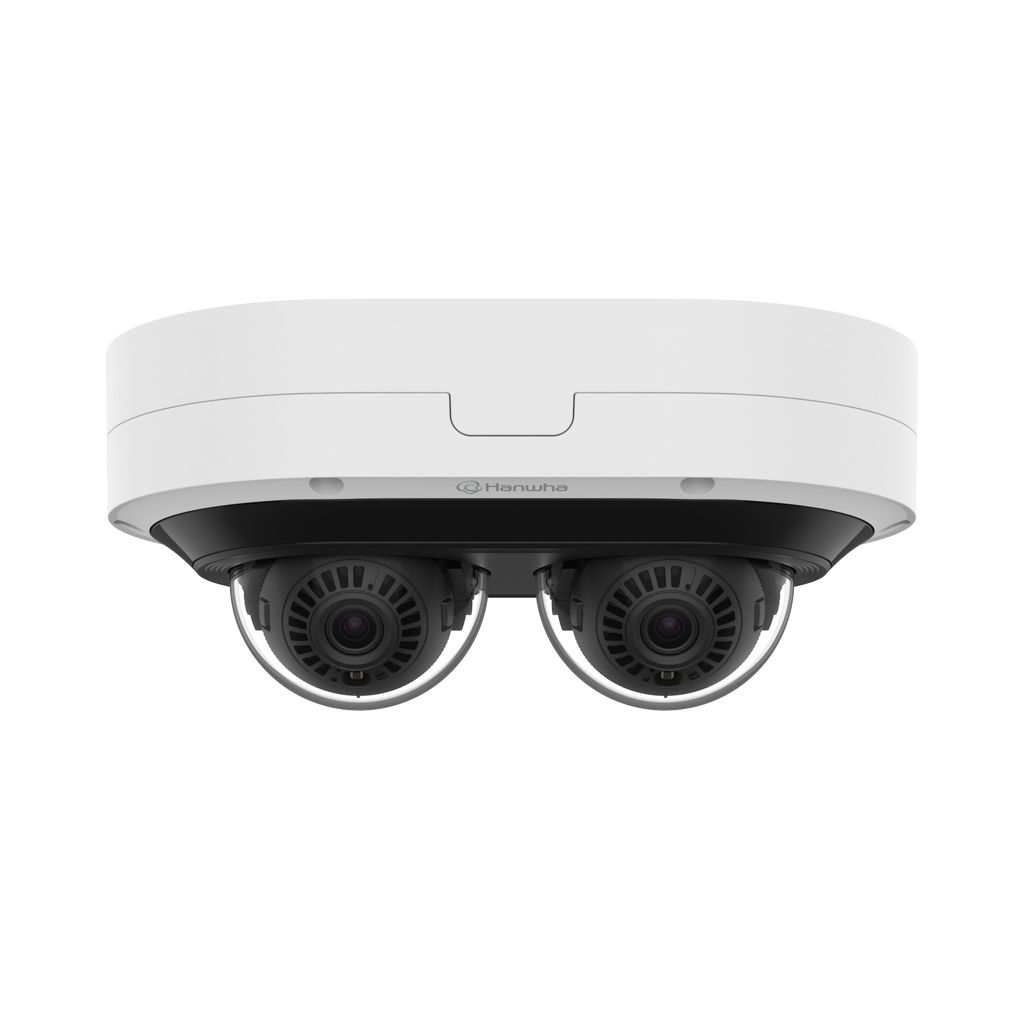

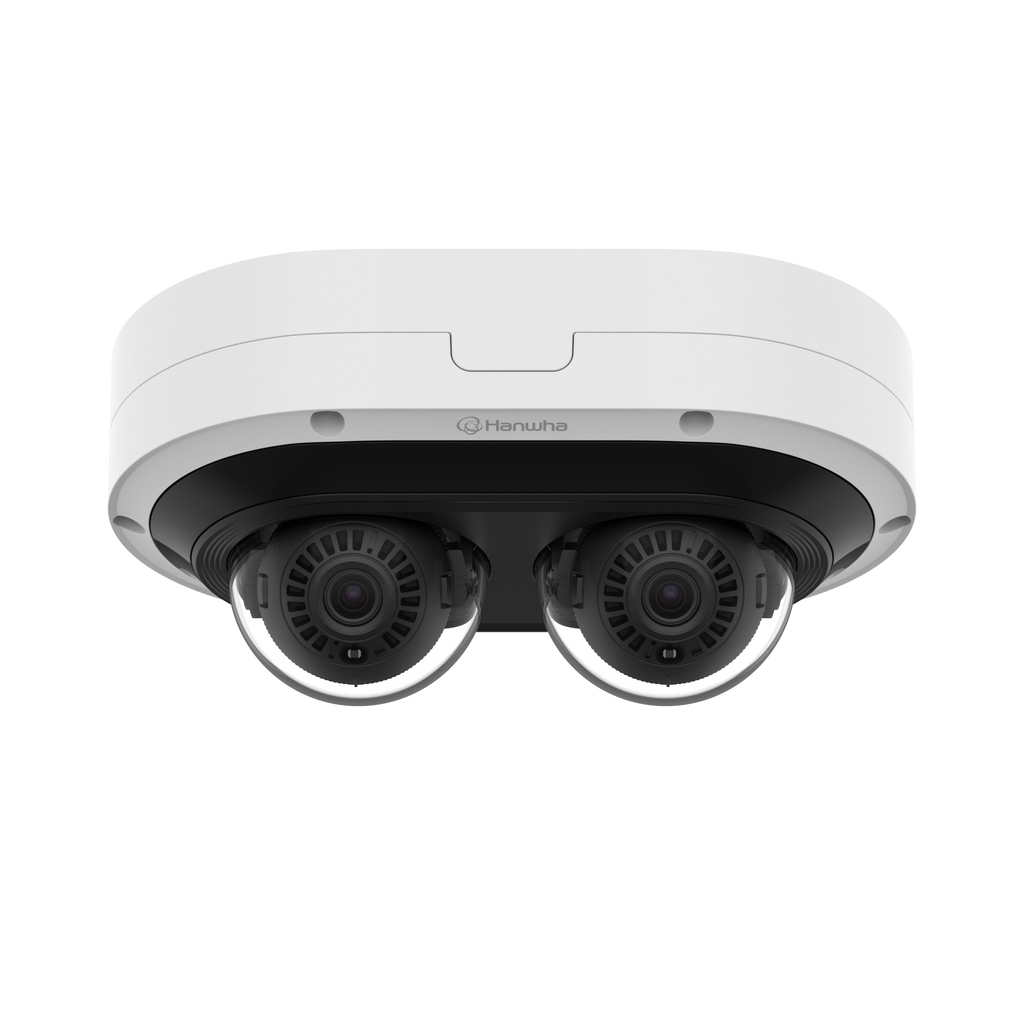

The Hanwha Vision PNM-12082RVD is a high-performance dual-channel multi-directional network camera designed to maximize surveillance coverage with two independent 6MP sensors in a single compact housing. Each sensor features motorized varifocal lenses, delivering crisp detail and flexible viewing angles across wide or focused scenes.
Engineered for demanding environments, the PNM-12082RVD supports extreme WDR (120dB), WiseNR noise reduction, and WiseStream II compression for superior image quality and efficient bandwidth usage. Its integrated IR LEDs provide up to 25m visibility in low-light conditions, while its rugged IP66/IP67, IK10, and NEMA 4X ratings ensure reliable outdoor performance.
With TPM 2.0 (FIPS 140-2 certified), secure boot, encrypted firmware, and comprehensive network protection, this camera is built for modern security standards. Ideal for large areas, public spaces, critical facilities, and multi-angle monitoring, it combines two viewpoints into one cost-effective installation.
| Category | Details |
|---|---|
| Camera Type | Dual-channel 6MP Multi-Directional Network Camera |
| Image Sensors | 1/2.8" CMOS (per channel) |
| Max Resolution | 3328 × 1872 |
| Max Frame Rate | 15fps (H.265/H.264/MJPEG) |
| Min. Illumination | Color: 0.16 lux / B&W: 0.016 lux; 0 lux with IR |
| Lens Type | Motorized Varifocal 3.54–6.69mm |
| Optical Zoom | 1.9x |
| Field of View | H: 96°–47° / V: 51°–26° / D: 113°–54° |
| IR Range | Up to 25m (82 ft) |
| WDR | 120dB Extreme WDR |
| Noise Reduction | WiseNR, SSNRⅤ |
| Day/Night | Auto (ICR) |
| Video Compression | H.265, H.264 (Main/High/Baseline), MJPEG |
| Smart Codec | WiseStream II |
| Edge Storage | microSD/SDHC/SDXC up to 512GB (1TB for OnCloud) |
| Analytics | Motion, Tampering, Defocus, Audio detection, Virtual area events |
| Network Protocols | IPv4/IPv6, TCP/IP, UDP, RTP/RTSP, SNMP, HTTPS, SRTP, ONVIF S/T |
| Security | TPM 2.0 (FIPS 140-2 Level 2), Secure boot, Signed firmware |
| Operating Temperature | −40°C to +55°C (−40°F to +131°F) |
| Ingress Protection | IP66, IP67 |
| Impact Protection | IK10 |
| NEMA Rating | Type 4X |
| Power Input | PoE+ (IEEE 802.3at Class 4) |
| Power Consumption | Max 18.3W |
| Construction | Aluminum (White, RAL9003) |
| Dimensions | 215 × 135 × 93.2 mm |
| Weight | 1.33 kg (2.93 lbs) |
