Description

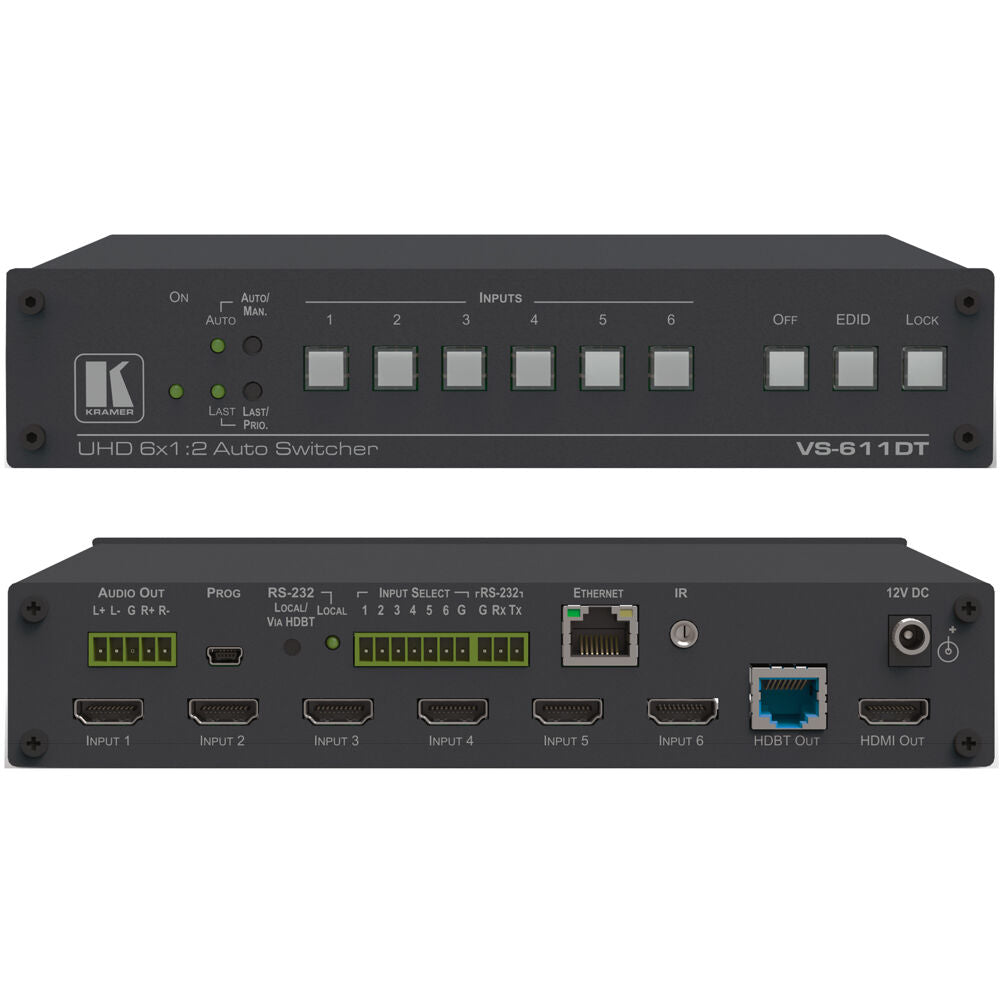

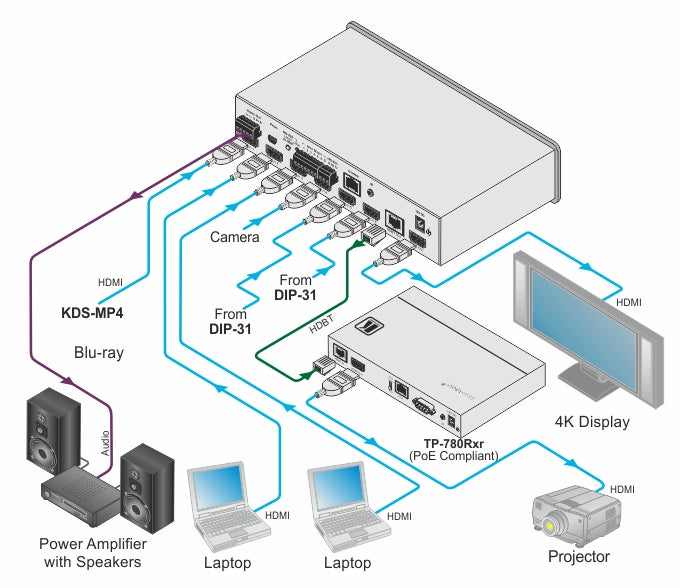

The Kramer VS-611DT is a high-performance 6x1:2 HDMI auto switcher designed for professional AV environments that demand reliable 4K60 (4:2:0) signal distribution. Ideal for conference rooms, classrooms, control centers, and digital signage applications, it automatically selects the last connected or highest-priority input and outputs the signal simultaneously over HDMI and HDBaseT.
Equipped with full HDBaseT certification, the VS-611DT extends 4K signals up to 100 meters while carrying Ethernet, IR, RS-232, and PoE—making it a powerful hub for simplified installations. It also supports audio de-embedding, EDID management, ARC, and Kramer reKlocking™ signal integrity technology.
With multiple control options including RS-232, IR, Ethernet, contact closure, and a built-in web server, this compact switcher delivers flexibility, stability, and seamless automation for modern AV systems.
| Category | Details |
|---|---|
| Inputs | 6 HDMI; 1 IR (3.5mm jack) |
| Outputs | 1 HDMI; 1 HDBaseT (RJ-45); 1 balanced stereo audio (5-pin) |
| Ports | 1 Ethernet (RJ-45); 1 RS-232 (3-pin); 6 contact closures (7-pin); 1 USB mini-A (firmware) |
| Max Data Rate | 8.91Gbps (2.97Gbps per channel) |
| Supported Resolutions | Up to 4K@60Hz (4:2:0), 4K x 2K, UXGA |
| HDMI Compliance | Deep Color, Ethernet, ARC, up to 7.1 audio channels, CEC |
| Switching Modes | Manual or fast auto-switching (last-connected or priority-based) |
| HDBaseT Features | Up to 100m at 4K60 4:2:0; RS-232, IR, Ethernet, PoE |
| Key Features | Auto-power off, EDID configuration, reKlocking™, HDCP on/off |
| Control Options | Front panel, contact closure, Ethernet, RS-232, IR, HDBaseT |
| Software Support | Protocol 3000, K-Router Plus, EDID Designer, K-Upload |
| Operating Temperature | 0°C to +40°C (32°F to 104°F) |
| Storage Temperature | −40°C to +70°C (−40°F to 158°F) |
| Humidity | 10%–90% non-condensing |
| Power Requirement | 12V DC, 750mA |
| Included Accessories | Power adapter |
| Dimensions (W x D x H) | 21.46 × 16.30 × 4.36 cm (8.45" × 6.42" × 1.72") |
| Weight | 1.0 kg (2.3 lbs) |
| Shipping Dimensions | 35.10 × 21.20 × 7.20 cm |
| Shipping Weight | 1.6 kg (3.6 lbs) |
