Description

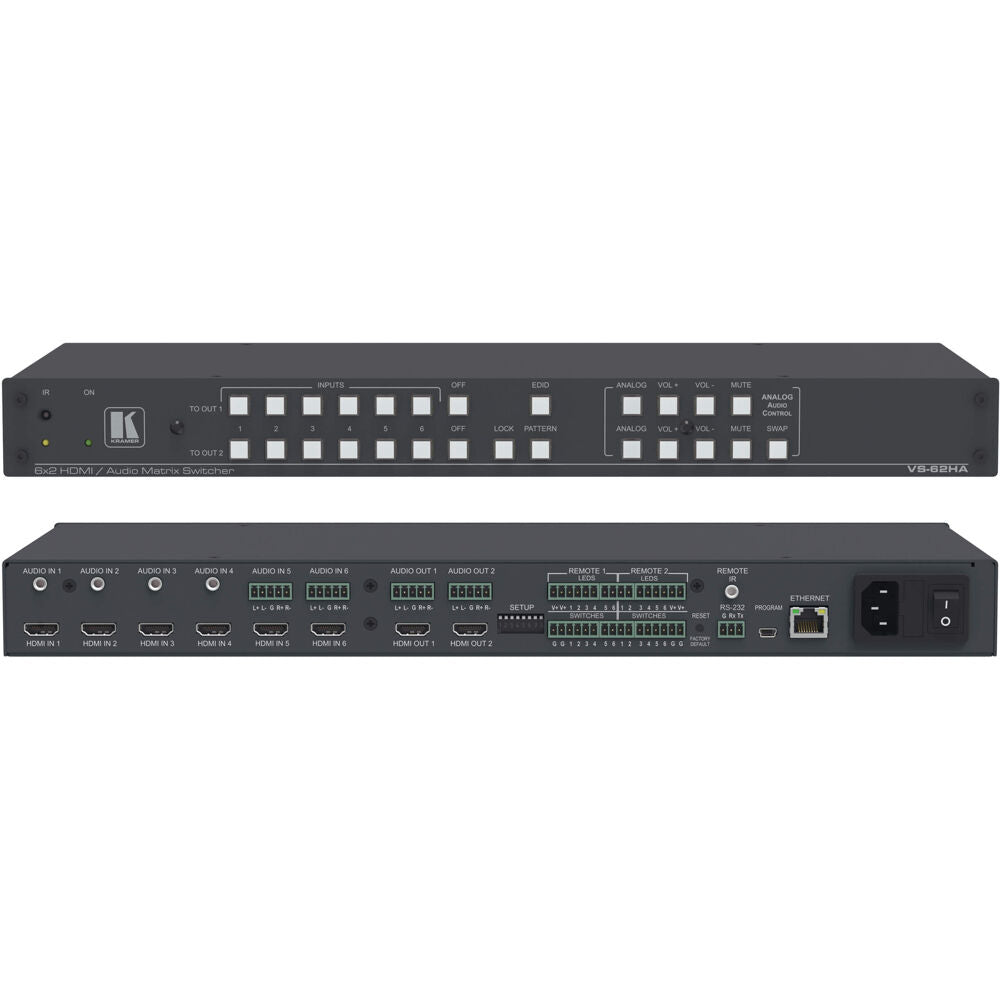

The Kramer VS-62HA is a high-performance 6x2 4K60 (4:2:0) HDMI and analog audio automatic matrix switcher designed for professional AV environments that require flexible routing, seamless switching, and robust control options. Engineered with Kramer’s advanced reKlocking™ and equalization technology, it ensures pristine signal integrity and reliable operation across long cable distances.
This powerful switcher supports 4K@60Hz (4:2:0) resolutions, HDCP compliance, Deep Color, 3D, Dolby® TrueHD, DTS-HD®, and multi-channel PCM audio. With advanced auto-switching, intuitive manual override, independent audio breakaway, and built-in EDID capture, the VS-62HA optimizes connectivity and streamlines any presentation or AV integration workflow.
Ideal for classrooms, meeting rooms, conference centers, digital signage, control rooms, and multi-source environments, it offers broad control flexibility—including front panel, Ethernet, RS-232, IR, contact closure, and embedded web interface—making it a highly adaptable matrix switcher for modern installations.
| Category | Details |
|---|---|
| Inputs | 6 HDMI; 4 unbalanced stereo audio (3.5mm); 2 balanced stereo audio (5-pin terminal blocks) |
| Outputs | 2 HDMI; 2 balanced stereo audio (5-pin terminal blocks) |
| Ports | RS-232 (3-pin), Ethernet (RJ-45), 2×6 remote LED outputs, 2×6 remote contact closures, USB-C, optional remote IR |
| Control Options | Front panel, IR remote, RS-232, Ethernet, contact closure, built-in web server |
| Max Data Rate | Up to 8.91Gbps (2.97Gbps per channel) |
| Max Resolution | Up to 4K@60Hz (4:2:0), WUXGA |
| Compliance | HDMI & HDCP compliant |
| Audio Support | Dolby® TrueHD, Dolby Digital Plus, DTS-HD®, 7.1 PCM; analog/balanced audio breakaway |
| Supported Baud Rates | 9600, 115200bps |
| Supported Browsers/OS | Windows 7/XP (Chrome, Firefox, Opera, IE9), macOS (Chrome, Firefox, Opera, Safari) |
| Power | 100–240V AC, 22VA |
| Operating Temperature | 0°C to +40°C (32°F to 104°F) |
| Storage Temperature | −40°C to +70°C (−40°F to 158°F) |
| Humidity | 10%–90% non-condensing |
| Included Accessories | Power cord, rack ears |
| Optional | External remote IR receiver cable |
| Dimensions (W×D×H) | 19" × 7.20" × 1U (43.6cm × 18.30cm × 4.36cm) |
| Weight | 1.7kg (3.6 lbs) |
| Shipping Dimensions | 55cm × 27.6cm × 10.7cm |
| Shipping Weight | 2.5kg (5.5 lbs) |
