Description

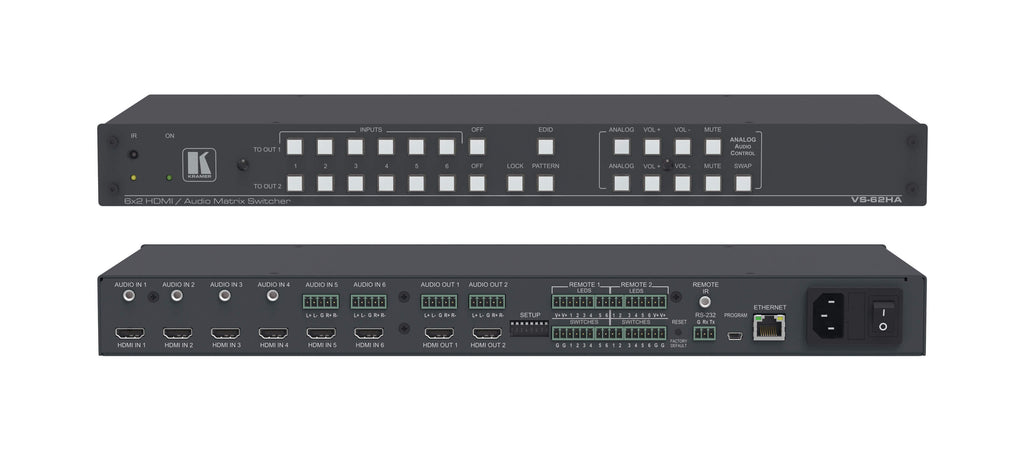

The Kramer VS-62HA/110V is a high-performance 6x2 automatic matrix switcher designed for professional AV environments requiring seamless 4K60 (4:2:0) HDMI routing and advanced audio management. Supporting up to 8.91Gbps data throughput, it reclocks, equalizes, and reliably distributes Ultra-HD video across two simultaneous outputs.
Engineered for flexible operation, the VS-62HA features advanced auto-switching, allowing last-connected or priority-based transitions—ideal for meeting rooms, classrooms, and collaborative spaces. With independent audio breakaway, embedded HDMI audio and analog audio sources can be routed separately to balanced outputs for maximum integration freedom.
Additional functionality includes an internal test pattern generator, non-volatile EDID storage, true video clock detection, and comprehensive control options such as front-panel buttons, IR, RS-232, Ethernet, and embedded web pages. Kramer reKlocking™ ensures clean, stable signal transmission, while HDMI step-in support provides a seamless user experience when used with compatible Kramer interfaces.
Reliable, intuitive, and feature-rich, the VS-62HA/110V is built to streamline multi-source, multi-display AV switching with professional-grade performance.
| Category | Details |
|---|---|
| Inputs | 6 HDMI; 4 unbalanced stereo audio (3.5mm); 2 balanced stereo audio (5-pin terminal block) |
| Outputs | 2 HDMI; 2 balanced stereo audio (5-pin terminal block) |
| Ports | RS-232 (3-pin); Ethernet (RJ-45); 2×6 remote LED outputs; 2×6 contact closure switches; USB-C; optional remote IR |
| Control Options | Front panel buttons, IR remote, RS-232, Ethernet, embedded web server, contact closure |
| Max Data Rate | 8.91Gbps (2.97Gbps per graphics channel) |
| Max Resolution | 4K@60Hz (4:2:0), WUXGA |
| Compliance | HDMI & HDCP |
| HDMI Features | 3D, Deep Color, x.v.Color™, Lip Sync, Dolby® TrueHD, Dolby Digital Plus, DTS-HD®, 7.1 PCM |
| EDID Handling | EDID capture & non-volatile storage |
| Auto-Switching Modes | Last-connected / priority switching; manual override |
| Audio Routing | Independent HDMI & analog audio breakaway routing |
| Network Features | Embedded web pages, DHCP static/dynamic |
| Power | 100–240V AC, 22VA |
| Operating Temperature | 0°C to +40°C (32°F to 104°F) |
| Storage Temperature | −40°C to +70°C (−40°F to 158°F) |
| Humidity | 10%–90% non-condensing |
| Product Dimensions | 19" x 7.20" x 1U (43.6cm x 18.30cm x 4.36cm) |
| Product Weight | 1.7kg (3.6 lbs) |
| Included Accessories | Power cord, rack “ears” |
| Optional Accessories | External remote IR receiver cable |
