Description
The Eaton 93PX8K UPS delivers enterprise-grade power protection for critical IT environments, combining high efficiency, scalability, and advanced monitoring in a compact rackmount design. Built with true online double-conversion technology, it ensures continuous, clean power to sensitive equipment by isolating connected loads from all power disturbances.
Designed for modern data centers, network closets, and edge deployments, this 7.5kVA/7.5kW UPS features unity power factor output for maximum usable capacity and high power density to optimize rack space. Its modular architecture includes an integrated maintenance bypass panel and extended battery capability, allowing seamless scalability and uninterrupted uptime during servicing.
Equipped with a cybersecure network card, the system enables 24/7 remote monitoring, management, and control, enhancing operational visibility and resilience. With plug-and-play deployment, pure sine wave output, and support for multiple extended battery modules, the Eaton 93PX8K is a reliable and flexible solution for mission-critical infrastructure.
| Specification | Details |
|---|---|
| Product Type | Three-Phase Online Double-Conversion UPS |
| Form Factor | 4-Post 19-Inch Rackmount (9U) |
| UPS Topology | Online Double Conversion |
| Output Capacity | 7500 VA / 7500 W |
| Input Voltage | 120/208V AC, 3-Phase Wye |
| Output Voltage | 120/208V AC, 3-Phase Wye |

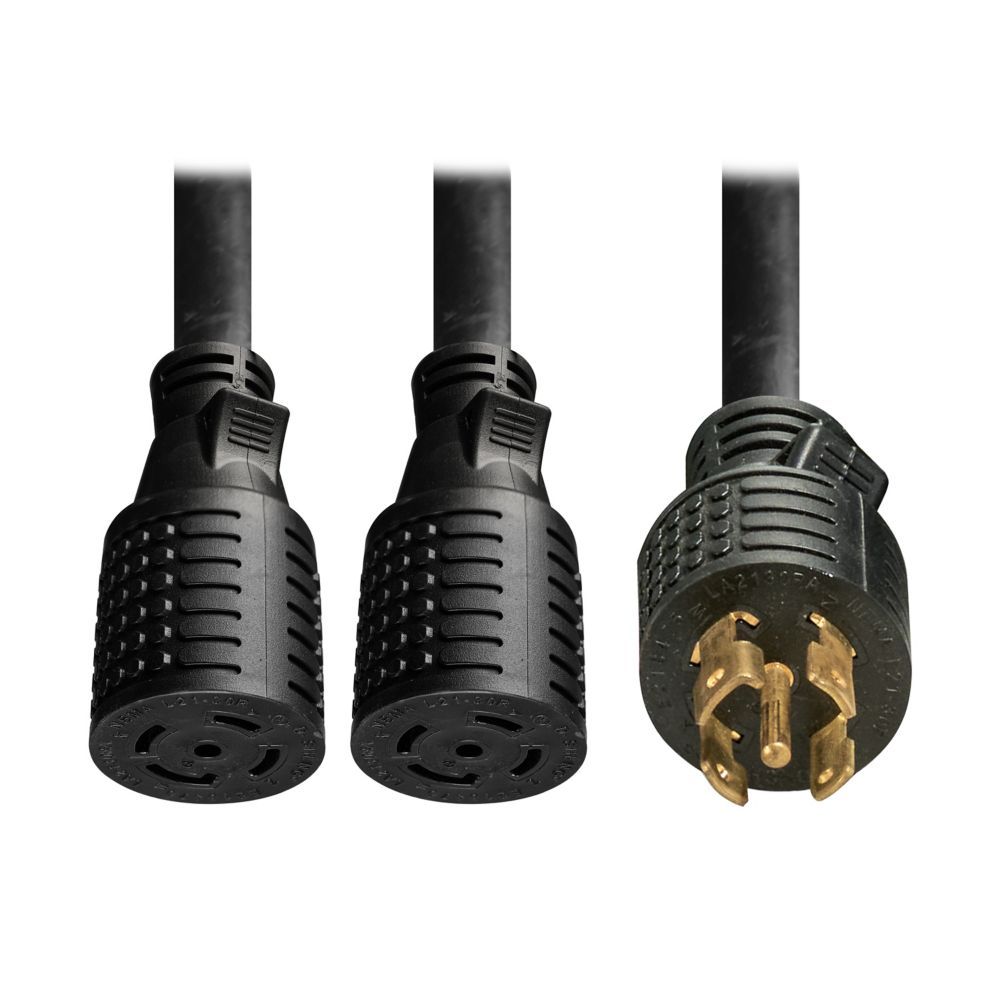

| Input Connection | L21-30P |
| Output Connections | (2) L21-30R |
| Frequency | 50/60 Hz ± 4 Hz |
| Output Waveform | Pure Sine Wave (AC and Battery Mode) |
| Output Voltage Regulation | ±1% |
| Output Power Factor | 1.0 (Unity) |
| Input Power Factor | 1.0 |
| THDi | < 4% |
| Current Crest Ratio | 3:1 |
| Transfer Time (Economy Mode) | < 10 ms |
| DC Voltage | ±120 VDC |
| Battery Type | External Extended Battery Modules (EBM) |
| Extended Runtime | Supports up to 5 EBMs |
| Typical Battery Life | 3.5 to 6 years (environment dependent) |
| Maintenance Bypass | Included (93PXMBP8K) |
| Network Management | NETWORK-M3 Cybersecure Gigabit Card |
| Input Protection | 40A via Maintenance Bypass Panel |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | 5°F to 104°F (-15°C to 40°C) |
| Operating Humidity | 0–95% non-condensing |
| Operating Elevation | Up to 3000 m (derating above 1000 m) |
| Dimensions (D x H x W) | 32.14 in x 15.43 in x 17.24 in |
| Weight | 292.11 lb |
| Package Contents | Power module, network card, EBM, maintenance bypass panel, rack hardware, cabling, documentation |
| Key Features | Expandable runtime, plug-and-play deployment, high efficiency, remote monitoring, maintenance bypass for continuous uptime |
