Description

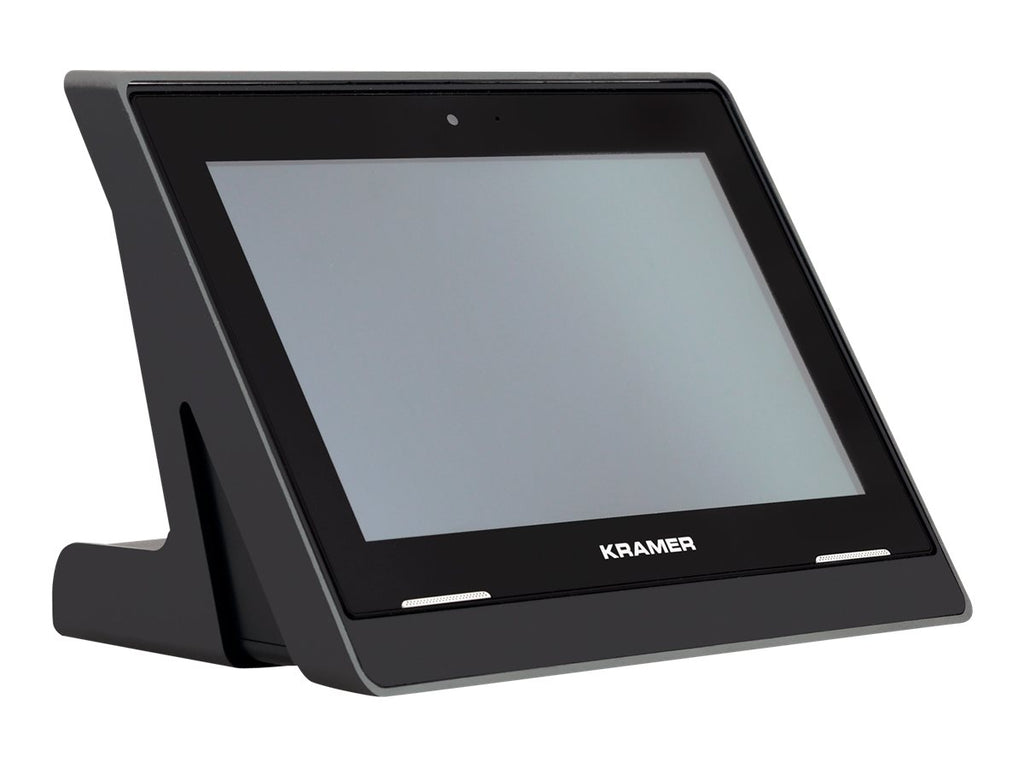

The Kramer KT-107 is a premium 7-inch IPS multi-touch touch panel designed for professional AV control, automation, and room scheduling applications. Engineered for 24/7 commercial use, it delivers an elegant user experience with a high-resolution 1280×800 display, advanced 10-point touch, wide viewing angles, and responsive performance powered by a 1.6GHz quad-core processor with 2GB RAM and 16GB flash storage.
This Android-based touch panel supports Power over Ethernet (PoE), Wi-Fi 802.11 b/g/n/ac, Bluetooth 4.0, and optional USB connectivity, making installation flexible across tabletop or wall-mounted environments. A built-in 2MP HD front camera, microphone, speakers, and adjustable brightness sensor make the KT-107 an ideal user interface for conference rooms, classrooms, control systems, and smart building environments.
Secure, customizable, and easy to deploy, the KT-107 includes mounting accessories and supports advanced features such as password-protected control buttons, auto-boot application selection, firmware upgrade via USB, and status LEDs for camera and charging indication.
| Category | Details |
|---|---|
| Display | 7" IPS panel, 1280×800 resolution, 16:10 aspect ratio, ±85° viewing angles, 400 cd/m² brightness, 800:1 contrast ratio |
| Touch Technology | 10-point capacitive multi-touch with 2-finger gesture support |
| Processor & Memory | 1.6GHz Quad-Core CPU, GPU, 2GB RAM, 16GB flash storage |
| Operating System | Android 6.0.1 |
| Camera | 2MP front camera, HD 720p |
| Audio | Built-in microphone and 2×1W speakers (8Ω) |
| Networking | 10/100/1000 Mbps Ethernet with auto-sensing; PoE (IEEE 802.3af/at); Wi-Fi 802.11 b/g/n/ac; Bluetooth 4.0 |
| Power Options | PoE, 5V DC power supply, rechargeable internal battery (approx. 3 hours Wi-Fi use) |
| Controls | Power button, volume-up button, hidden reset button; control button for system/menu access |
| Status Indicators | LED flashes green (charging), steady green (charged), red (camera active) |

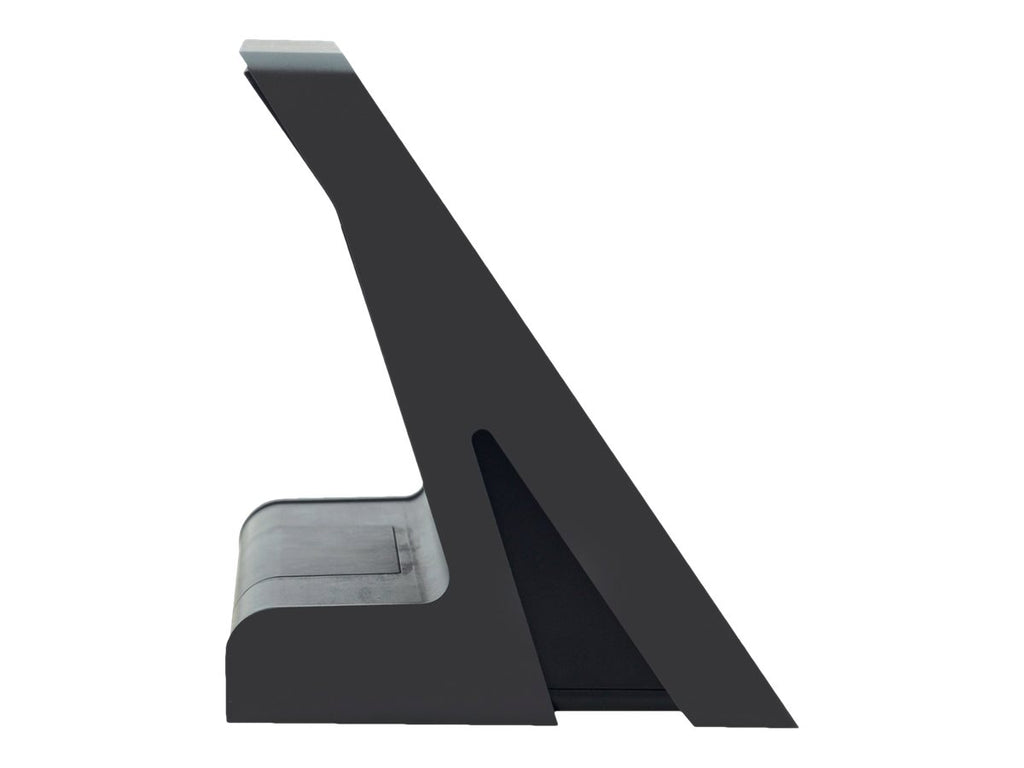

| Mounting Options | Tabletop mount, on-wall mount, panel-mount plate (all included) |
| Ports (Mounts) | RJ-45 Ethernet (PoE); micro-USB; 2-pin DC power terminal |
| Wireless Notes | KT-107RB model: 5GHz Wi-Fi limited to 5.35GHz |
| Environmental | Operating: 0°–40°C; Storage: –10°–55°C; Humidity: 10–90% non-condensing |
| Dimensions | Touch panel: 17.8 × 1.3 × 13 cm (7" × 0.51" × 5.12") |
| Weight | Touch panel: approx. 0.37 kg (0.8 lb) |
| Certifications | CE/CB, FCC, ROHS, REACH |
| Included Accessories | Tabletop and wall mounts, panel-mount plate, power adapter (5V, 4.0A), OTG USB cable, installation screws, on-wall security lock |
