Description

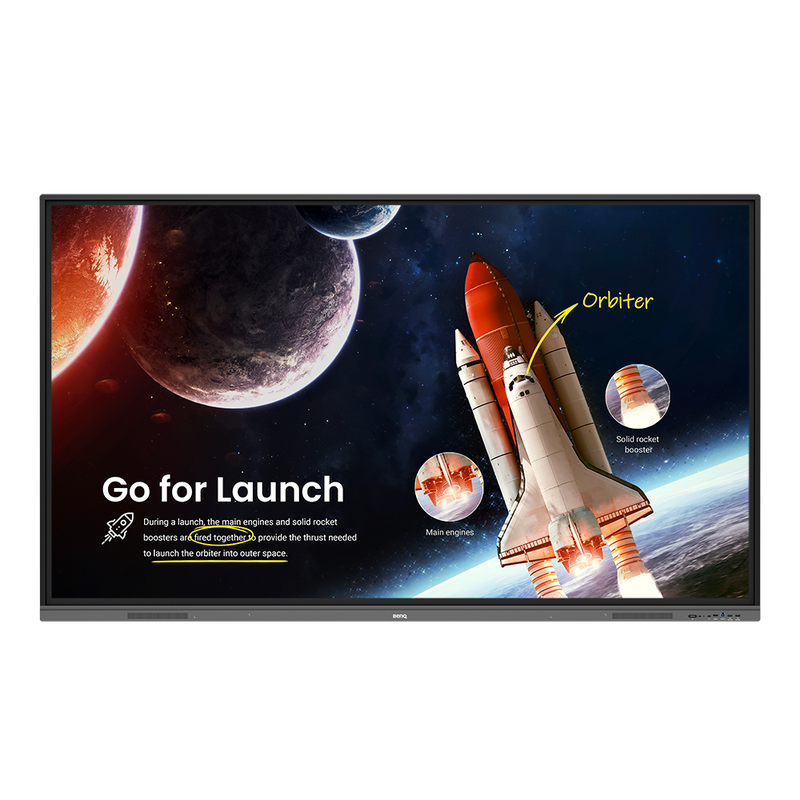

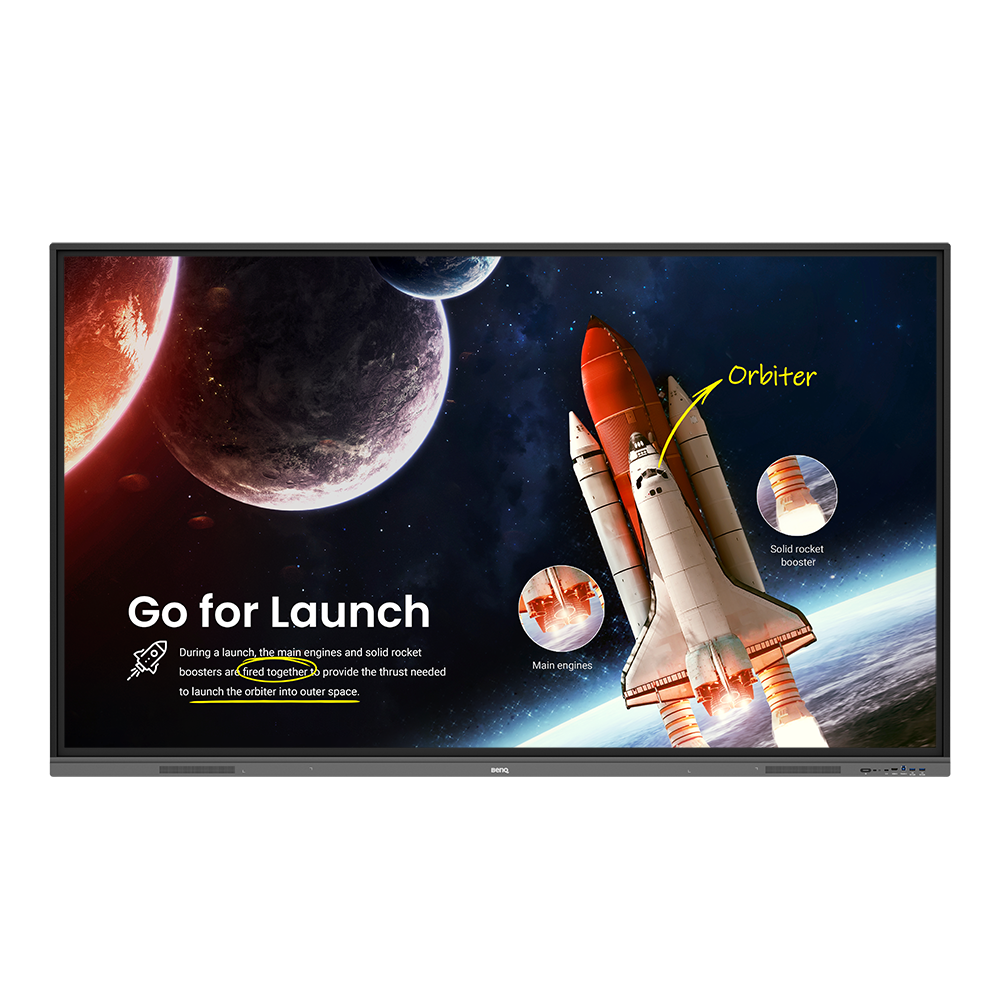

The BenQ Board Essential RE7501 is a 75-inch 4K UHD interactive display designed to enhance classroom engagement and collaborative learning. Built specifically for education environments, this all-in-one smart board combines advanced touch technology, germ-resistant protection, and eye-care features to support safe, interactive, and effective instruction.
Powered by Android 8.0 and equipped with built-in whiteboarding, wireless screen sharing, and digital broadcasting tools, the RE7501 enables seamless collaboration between teachers and students. The IPS panel delivers vibrant visuals with 550 nits brightness, while infrared touch supports up to 20 simultaneous touch points for dynamic multi-user interaction.
With integrated EZWrite 5.0, InstaShare, X-Sign Broadcast, and display management tools, schools can streamline lesson delivery, device management, and digital communication across classrooms.
Designed for reliability, durability, and long daily operation cycles, the RE7501 is your caring mate for enhanced interactive learning.
| Category | Specification |
|---|---|
| Model | RE7501 |
| Screen Size | 75 inches |
| Panel Type | IPS |
| Resolution | UHD 3840 × 2160 |
| Aspect Ratio | 16:9 |
| Brightness (Typical) | 550 nits |
| Contrast Ratio (Typical) | 1200:1 |
| Dynamic Contrast Ratio | 30,000:1 |
| Color Depth | 10-bit |
| Color Gamut | 72% NTSC |
| Response Time | 8 ms |
| Backlight Life | 50,000 hours |
| Operation Hours | 18 hours / 7 days |
| Glass Type | 9H Tempered, Anti-glare |
| Germ-Resistant Technology | Integrated antimicrobial screen |
| Touch Technology | Infrared (IR) |
| Touch Points | 20-point multi-touch |
| Touch Response Time | < 10 ms |
| CPU | A73 × 2 + A53 × 2 |
| GPU | Mali-G51MP2 |
| Memory / Storage | 3GB RAM / 32GB Storage |
| Operating System | Android 8.0 |
| HDMI | 3 × HDMI 2.0 (In) / 1 × HDMI 2.0 (Out) |
| DisplayPort | 1 × 1.2 |
| USB-A | 2 × USB 2.0 + 2 × USB 3.0 (OPS) |
| USB-B (Touch) | 2 × USB 2.0 |
| VGA | 1 |
| Ethernet | 2 × 10/100 Mbps |
| OPS Slot | 1 |
| RS-232 | 1 |
| Audio Output | 3.5mm Line Out / Optical S/PDIF |
| Speakers | 2 × 15W |
| Power Supply | AC 100–240V, 50/60Hz |
| Typical Power Consumption | 166.2W |
| Standby Power | < 0.5W |
| Dimensions (W × H × D) | 1735.9 × 1034.5 × 103.8 mm |
| Weight (Product / Shipping) | 58 kg / 77 kg |
| VESA Mount | 600 × 400 mm |
| Operating Temperature | 0°C to 40°C |
| Whiteboarding Software | EZWrite 5.0 |
| Wireless Screen Sharing | InstaShare |
| Device Management | DMS |
| Account Management | AMS |
| Broadcast System | X-Sign Broadcast |
| Eye-Care Technology | Flicker-Free & Low Blue Light |
| Included Accessories | VGA Cable, HDMI Cable, USB-B Cable, Wall Mount, 2 Pens, Remote Control |
