Description

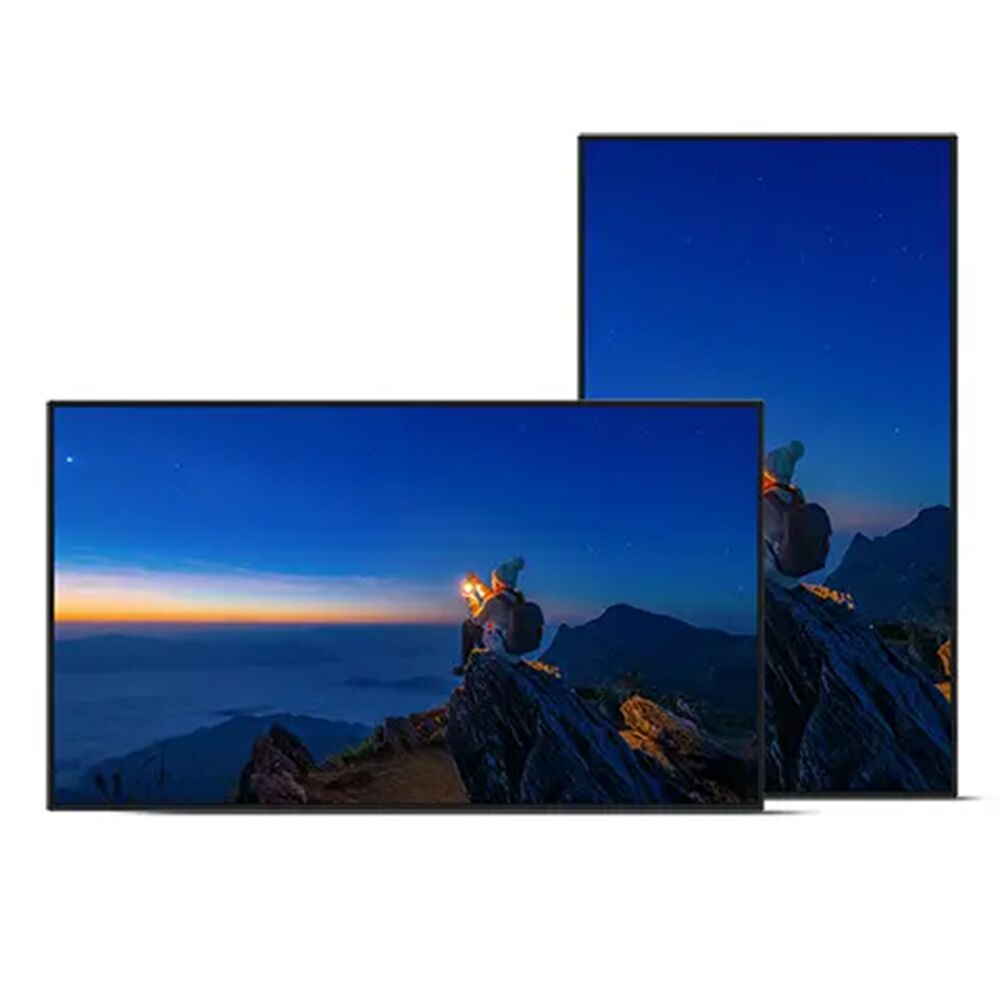

The Sharp MultiSync® PN-M752 is a premium 75-inch 4K UHD large-format display designed for professional signage and mission-critical environments. Engineered for reliability and visual excellence, it delivers stunning 3840 x 2160 resolution with 550 cd/m² brightness and anti-glare glass for vivid content in high-ambient light.
Featuring the SpectraView™ Engine with factory calibration, the PN-M752 ensures consistent, lifelike color accuracy across all installations. Modular by design, it supports Intel® Smart Display Modules (SDM-L/SDM-S) and Raspberry Pi Compute Module 4, enabling seamless upgrades and embedded intelligence without external gear.
With commercial-grade toughness, a full-metal chassis, integrated cooling, and advanced connectivity—including HDMI 2.0, DisplayPort 1.4, and USB-C with 65W Power Delivery—the PN-M752 is built to perform 24/7 in retail, corporate, healthcare, control rooms, and more. IT administrators benefit from advanced security features, NaViSet Administrator 2 remote management, and smart input prioritization for zero downtime.
The PN-M752 is more than just a display—it’s a powerful, reliable, and flexible signage solution that ensures your message shines brilliantly at all times.
| Category | Specification |
|---|---|
| Model | PN-M752 |
| Display Technology | IPS LCD |
| Screen Size | 74.5" viewable |
| Native Resolution | 3840 x 2160 (4K UHD) |
| Brightness (Typical) | 550 cd/m² |
| Contrast Ratio | 1200:1 |
| Viewing Angle | 178° (H/V) |
| Aspect Ratio | 16:9 |
| Color Gamut | 72% NTSC |
| Displayable Colors | Over 1.07 billion (10-bit dithered) |
| Orientation | Landscape / Portrait (CCW rotation) |
| Panel Haze | 25% |
| Input Terminals | 2x HDMI 2.0, 2x DP 1.4, 1x USB-C (DP-Alt Mode + 65W PD) |
| Output Terminals | 1x HDMI, 1x DisplayPort, 3.5mm Audio Out |
| Control Interfaces | LAN, RS-232C, IR Remote |
| USB Hub | 1x USB-A 2.0 (Service), 1x USB-A 3.2 (Downstream), 1x USB-C (Downstream) |
| Speakers | Integrated 10W x2 |
| Power Consumption | 140W (Typ) / 215W (Max Brightness) / 410W (All Max) |
| Standby Power | 0.5W (Network) / 2W (Normal) |
| Dimensions (W x H x D) | 66.2 x 37.8 x 3.3 in (1682.3 x 961.1 x 83.2 mm) |
| Net Weight | 38.0 kg / 83.8 lbs |
| Bezel Width | 15.9mm (all sides) |
| Mounting Options | VESA 600 x 400 (M8) |
| Sensors | Ambient light, temperature (programmable), optional human sensor |
| Operating Conditions | 0–40°C, 20–80% humidity, up to 3000m altitude |
| Warranty | 3 years Advanced Replacement |
| Optional Accessories | SP-RM3a speakers, ST-801 stand, WMK-7598T wall mount, SDM option cards, Raspberry Pi CM4 kit, PN-KTRC3 human sensor |
