Description

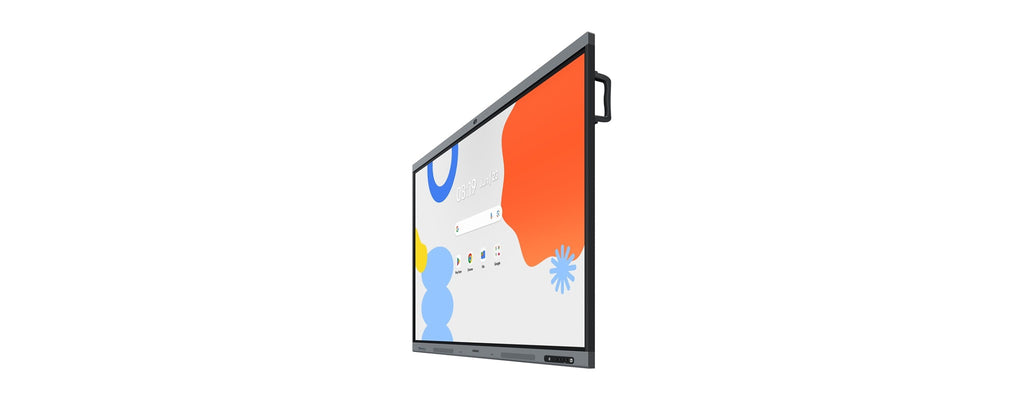

The Samsung WA75FX-P is a 75-inch interactive UHD smart signage display designed for classrooms, meeting rooms, collaboration spaces, and professional presentation environments. With 4K resolution, IPS panel technology, responsive IR touch, and a large-format 75-inch screen, it delivers clear visuals and a natural writing experience for interactive whiteboarding, presentations, and group collaboration.
Powered by Android 15 with a high-performance octa-core processor, 16GB RAM, and 128GB storage, this display supports smooth app usage, screen sharing, and modern productivity workflows. Built-in collaboration features include a 48MP UHD webcam, 8-array microphone system, WiFi 6, Bluetooth 5.0, USB-C with 65W power delivery, and an integrated 60W 2.1 speaker system for all-in-one communication and engagement.
| Specification | Details |
|---|---|
| Brand | Samsung |
| Product Type | Interactive UHD Smart Signage Display |
| Series | WAFX-P |
| Screen Size | 75 inches |
| Display Technology | IPS Panel |
| Backlight Technology | Direct LED |
| Resolution | 3840 x 2160 UHD |
| Aspect Ratio | 16:9 |
| Brightness | 450 cd/m² typical without glass |
| Contrast Ratio | 1,200:1 typical without glass |
| Response Time | 8 ms |
| Viewing Angle | 178° horizontal / 178° vertical |
| Touch Capability | Integrated IR touch support |
| Multi-Touch Support | Up to 50 touch points externally and up to 40 touch points through SoC |
| Touch Latency | Less than 45 ms |
| Writing Input | Passive pen support with 2 pens included |
| Operating System | Android 15 |
| Processor | Octa-core ARM Cortex A74 + A55 |
| Memory | 16GB RAM |
| Internal Storage | 128GB eMMC |
| Graphics | ARM Mali-G57 MC5 |
| Camera | Integrated 48MP camera |
| Camera Field of View | 114.9° diagonal |
| Microphone | Integrated 8-array microphone system |
| Microphone Pickup Range | Up to 10 m with 180° coverage |
| Audio System | Integrated 2.1 speaker system with 20W x 2 channels and 20W woofer |
| Wireless Connectivity | WiFi 6 and Bluetooth 5.0 |
| Screen Mirroring | Supported |
| HDMI Connectivity | 3 HDMI ports with 2 inputs and 1 output |
| USB-C | USB-C input with 65W power delivery |
| DisplayPort | 1 DP 1.2 input |
| USB Ports | 2 USB 3.0 ports and 3 USB 2.0 ports |
| Touch Out | 2 USB-B touch out ports |
| Audio Ports | 3.5 mm audio input, 3.5 mm audio output, and optical audio output |
| Control Ports | RS-232C input and RJ45 Ethernet |
| OPS Slot | Supported |
| Software Compatibility | VXT CMS supported |
| Google Services | EDLA certified for supported Google services and apps |
| Protective Glass | 3.2 mm protective glass with 9H hardness |
| Operating Hours | Designed for 16/7 operation |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 10% to 80% |
| Dimensions Without Stand | 1705 x 1036 x 87.1 mm |
| Package Dimensions | 1860 x 1125 x 185 mm |
| Weight Without Stand | 50.3 kg |
| Package Weight | 59.1 kg |
| VESA Mounting | 800 x 400 mm |
| Included Accessories | Power cable, remote control, HDMI cable, touch pen, USB cable, warranty card, and quick setup guide |
| Warranty | 3-year device warranty with extension options available |
