Description

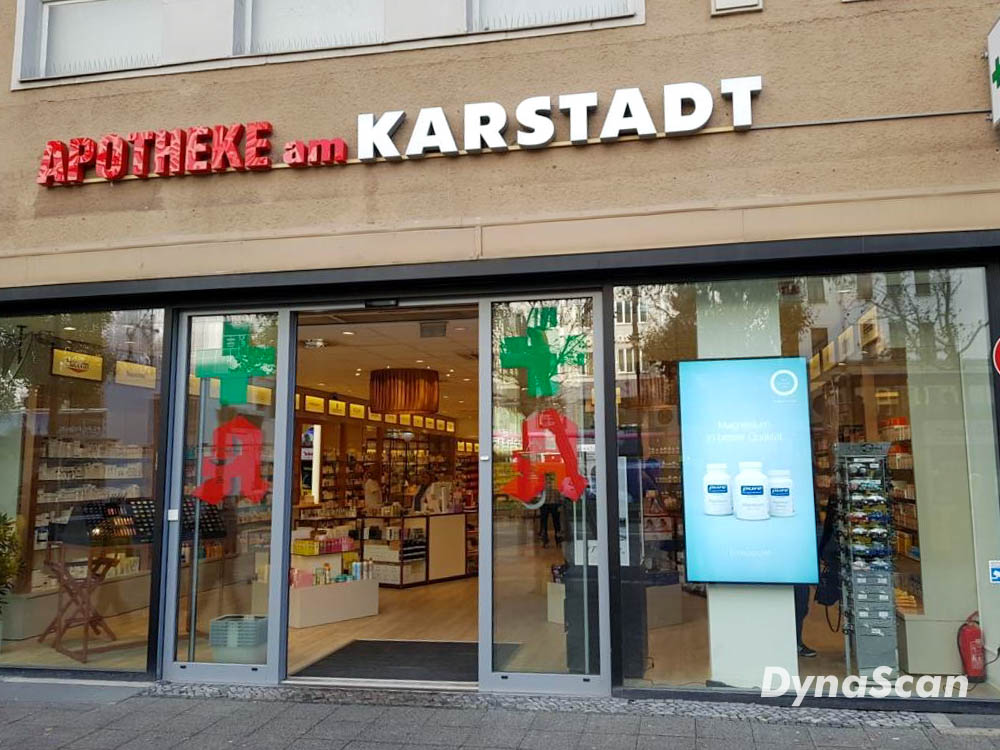

The DynaScan DS752LT5 is a professional 75-inch high-brightness display engineered for demanding digital signage environments. With an impressive 4,500 nits of brightness, this display delivers a sunlight-viewable image perfect for storefront windows, transportation hubs, and outdoor-facing installations.
Equipped with 4K UHD resolution (3840 × 2160), a 3,000:1 contrast ratio, and TrueColor™ factory calibration, it ensures outstanding image clarity and color uniformity. The integrated Android 8.0 media player with 16GB storage and wireless support enables seamless playback and content management without requiring external devices.
The DS752LT5 also features intelligent thermal management, auto-orientation sensing, and ambient light detection for optimized performance. Its fanless cooling design ensures quiet, reliable 24/7 operation. With multiple inputs including HDMI, DisplayPort, USB, RS-232, RJ45, and MicroSD, this display is built for professional, always-on applications.
| Category | Specification |
|---|---|
| Model | DS752LT5 |
| Panel Size | 74.52" (75" class) |
| Resolution | 3840 × 2160 (4K UHD) |
| Brightness | 4,500 nits |
| Color Depth | 10-bit |
| Contrast Ratio | 3,000:1 |
| Response Time | 8 ms (typ.) |
| Viewing Angle | 178° / 178° |
| Light Lifetime | 100,000 hrs (typ.) |
| Polarized Lens Viewable | Yes |
| Operating System | Android 8.0.0 |
| Processor | Dual-core A73 + dual-core A53, 1.5 GHz |
| Graphics | Quad-core Mali-G51 |
| Memory | 2GB DDR4 |
| Internal Storage | 16GB eMMC (expandable via MicroSD up to 128GB) |
| Multimedia Support | 4K 10-bit VP9/H.265/H.264 up to 60fps; 1080p VC-1, MPEG-1/2/4, VP8 |
| Inputs | HDMI 2.1 (x2), DisplayPort 1.2 (x1), USB 3.0 (x1), MicroSD Slot (x1), Audio In |
| Outputs | Audio Out, RS-232, RJ-45 (x2), ETK Port (Thermal), ESK Port (IR, Ambient) |
| Power Supply | 100–240V ~ 50/60Hz |
| Power Consumption | 420 W (typ.) / 800 W (max) |
| Power Saving Mode | <1W |
| AC Out | <100 W |
| Dimensions (W × H × D) | 1688 × 967.5 × 93.6 mm |
| Bezel Width | 17.0 / 17.0 / 16.5 / 16.5 mm |
| Weight | 58 kg |
| Orientation | Portrait / Landscape |
| VESA Mounting | 800 × 400 mm |
| Operating Temp. | 0°–45°C |
| Storage Temp. | -20°–60°C |
| Humidity | 10% – 80% RH (non-condensing) |
| Certifications | CE / FCC / RoHS |
| Special Features | TrueColor™ Calibration, Sunlight Viewable, Ambient Light Sensor, Auto Orientation Sensor, OSD Rotation, Image Retention Protection, Scheduling |
