Description

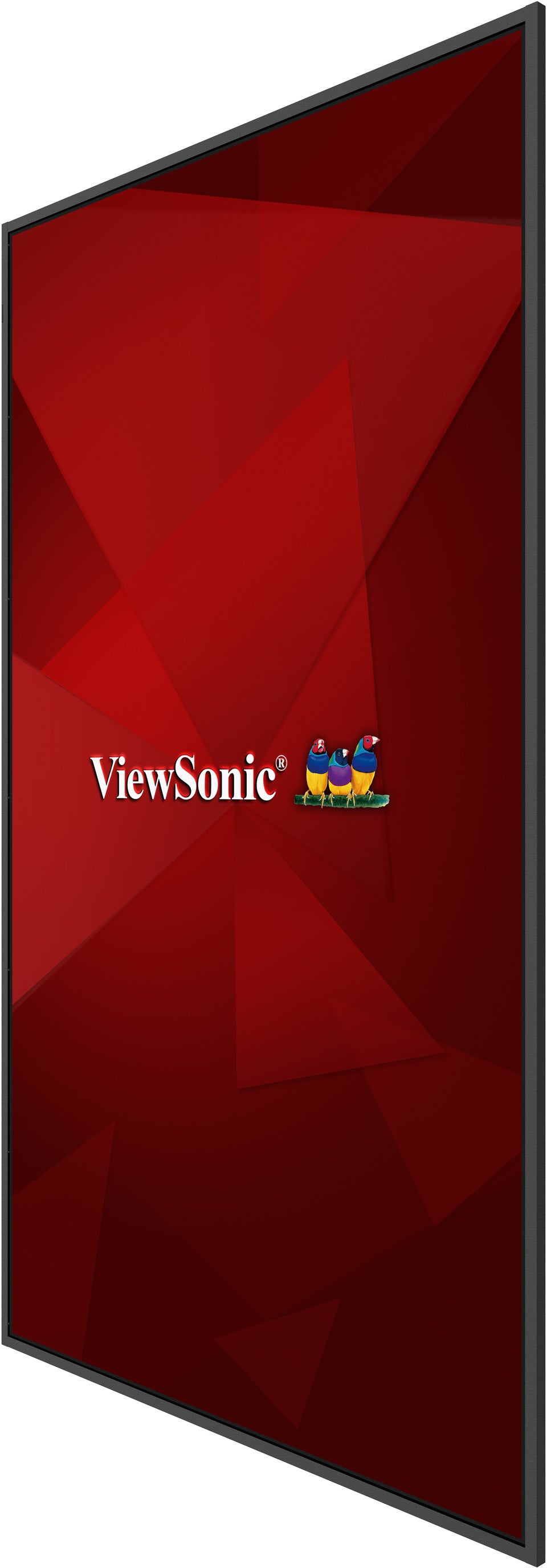

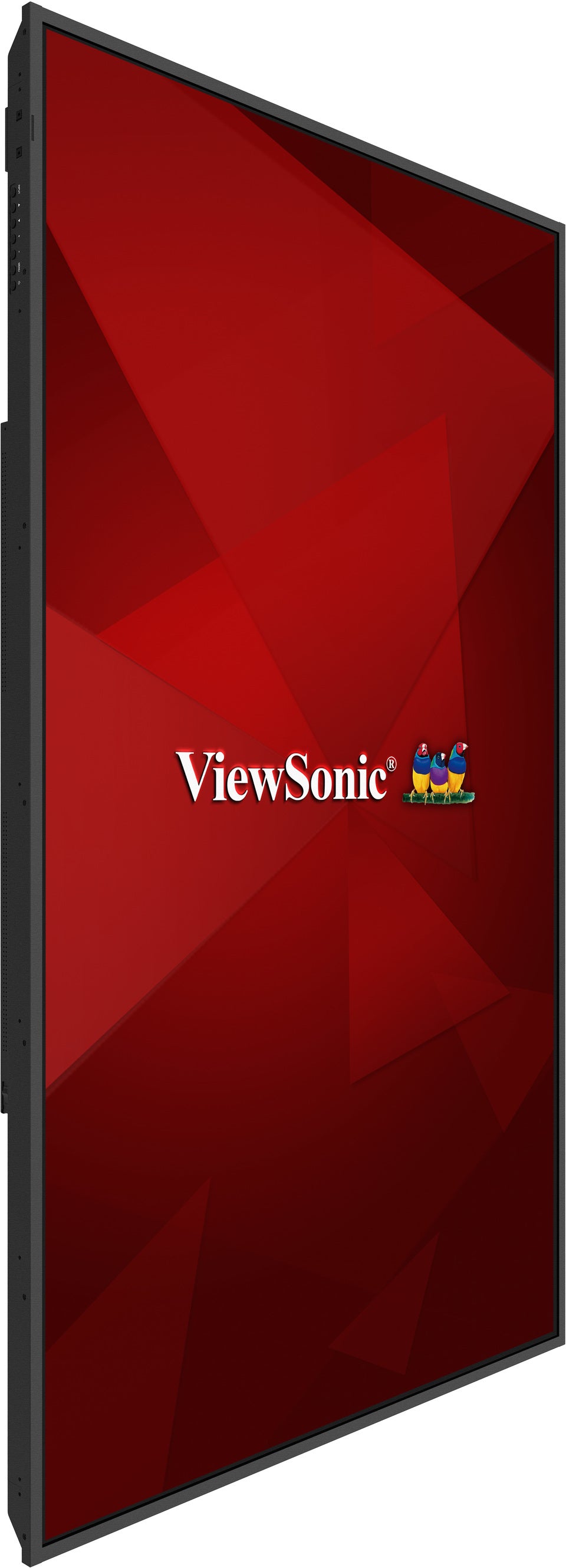

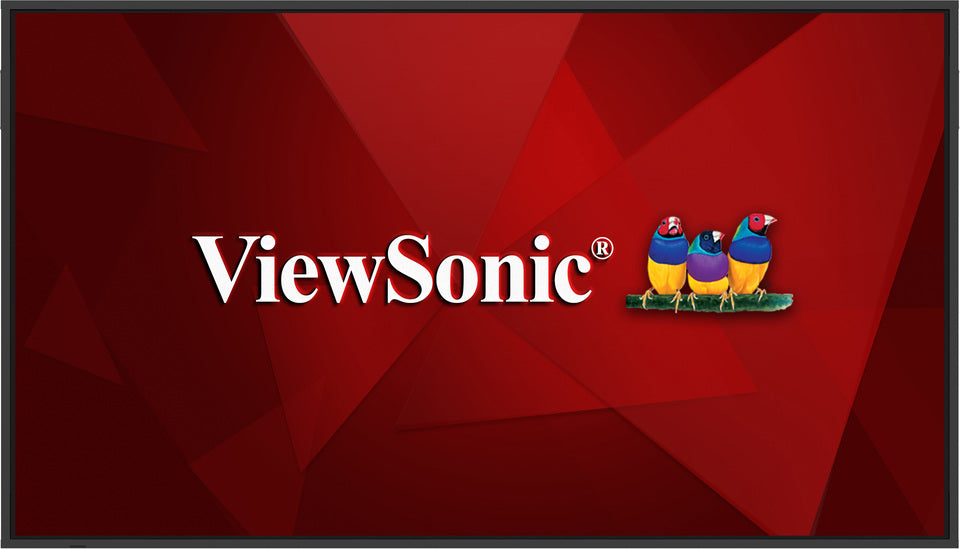

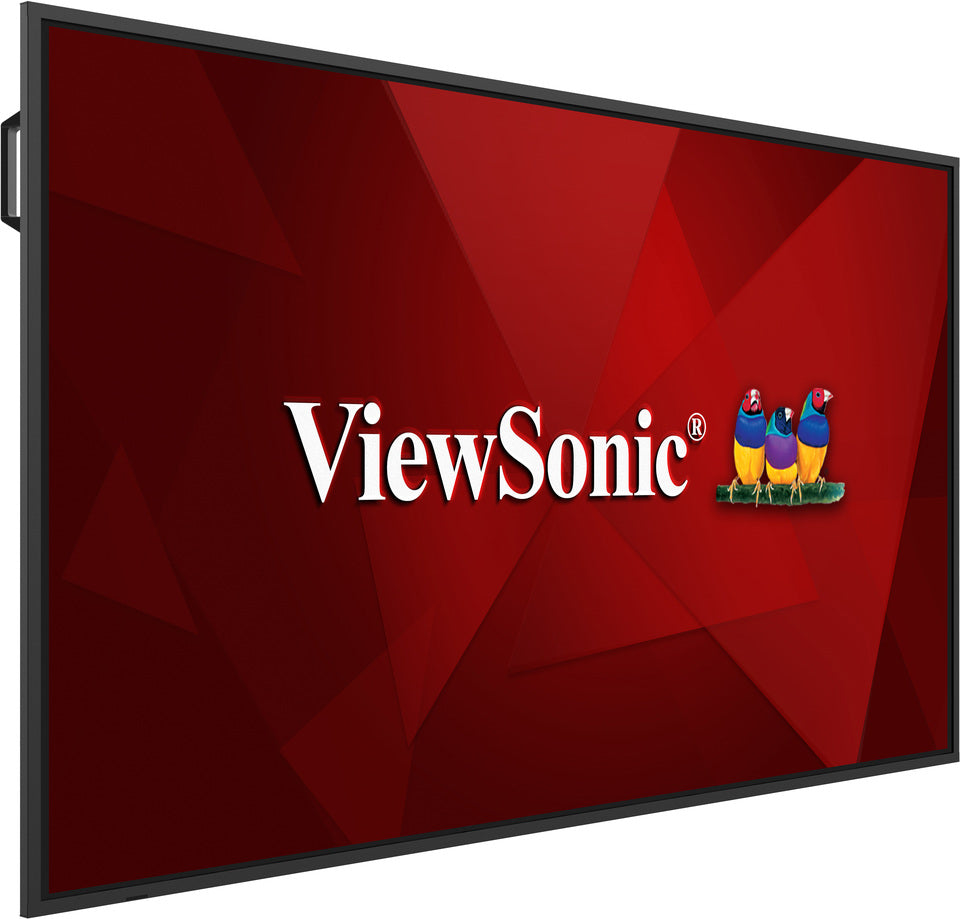

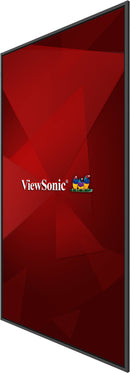

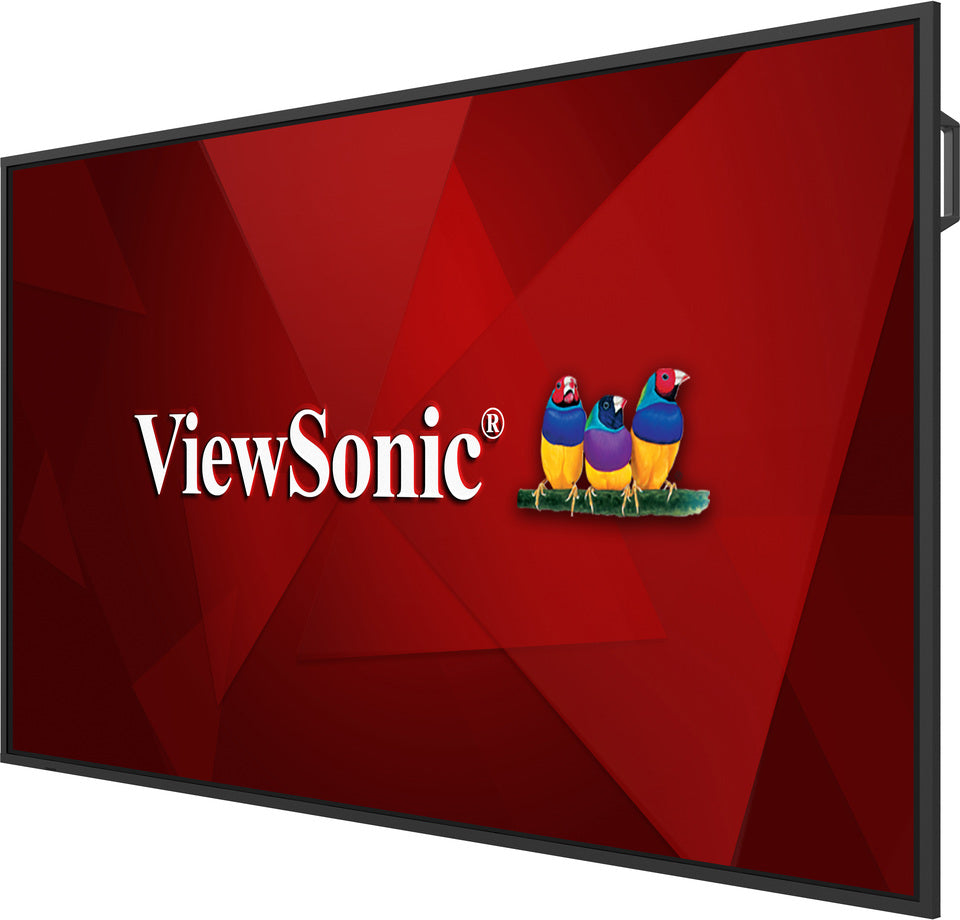

The ViewSonic CDE75G3 from the CDEG3 Series is a secure, OS-free commercial display engineered for 24/7 performance in high-demand environments such as corporate offices, government facilities, educational institutions, and healthcare centers. Its OS-free architecture minimizes security risks by eliminating pre-installed applications and background services, reducing the attack surface and simplifying IT management.
Featuring native 4K UHD resolution, 500-nit brightness, and wide 178° viewing angles, the CDE75G3 ensures crisp, high-visibility content in any lighting condition. It supports both landscape and portrait orientations, ideal for digital signage or meeting room use. The display’s USB-C and HDMI 2.1 ports deliver flexible connectivity for BYOD applications without the need for additional adapters, while ProAV integration and remote management capabilities streamline control across multiple units.

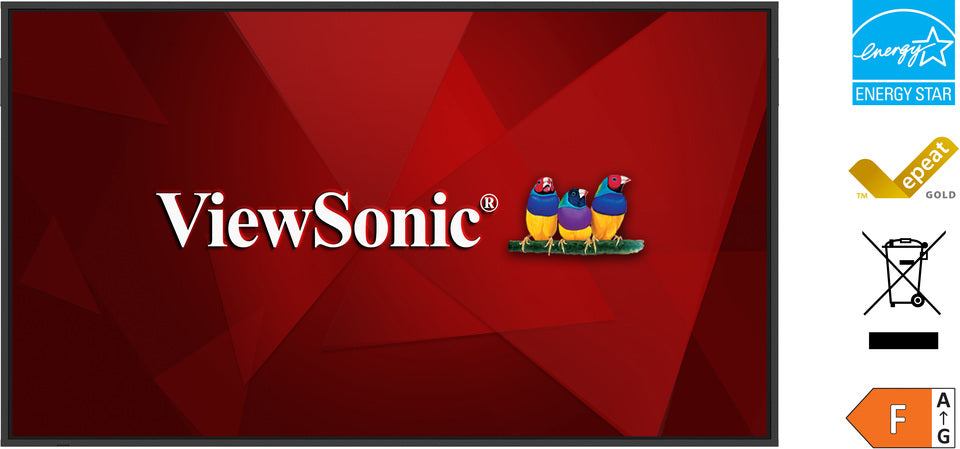

Designed for sustainability and reliability, the CDE75G3 is EPEAT® Gold certified, energy-efficient, and built to operate continuously around the clock. Its robust feature set—complete with USB media playback, RS-232 control, and a VESA-compatible mount—makes it an excellent choice for mission-critical and high-traffic professional environments.
| Category | Specification |
|---|---|
| Display | 75" TFT LCD module with DLED backlight |
| Display Area (mm) | 1650.24 (H) × 928.26 (V) (74.6" diagonal) |
| Native Resolution | 3840 × 2160 (4K UHD) |
| Aspect Ratio | 16:9 |
| Brightness | 500 nits (typical) |
| Contrast Ratio | 5500:1 |
| Colors | 8-bit + FRC |
| Response Time | 8ms |
| Viewing Angles | 178° (H) / 178° (V) |
| Backlight Life | 50,000 hours |
| Surface Treatment | 3H Hardness, Anti-glare coating, 25% haze |
| Orientation | Landscape & Portrait |

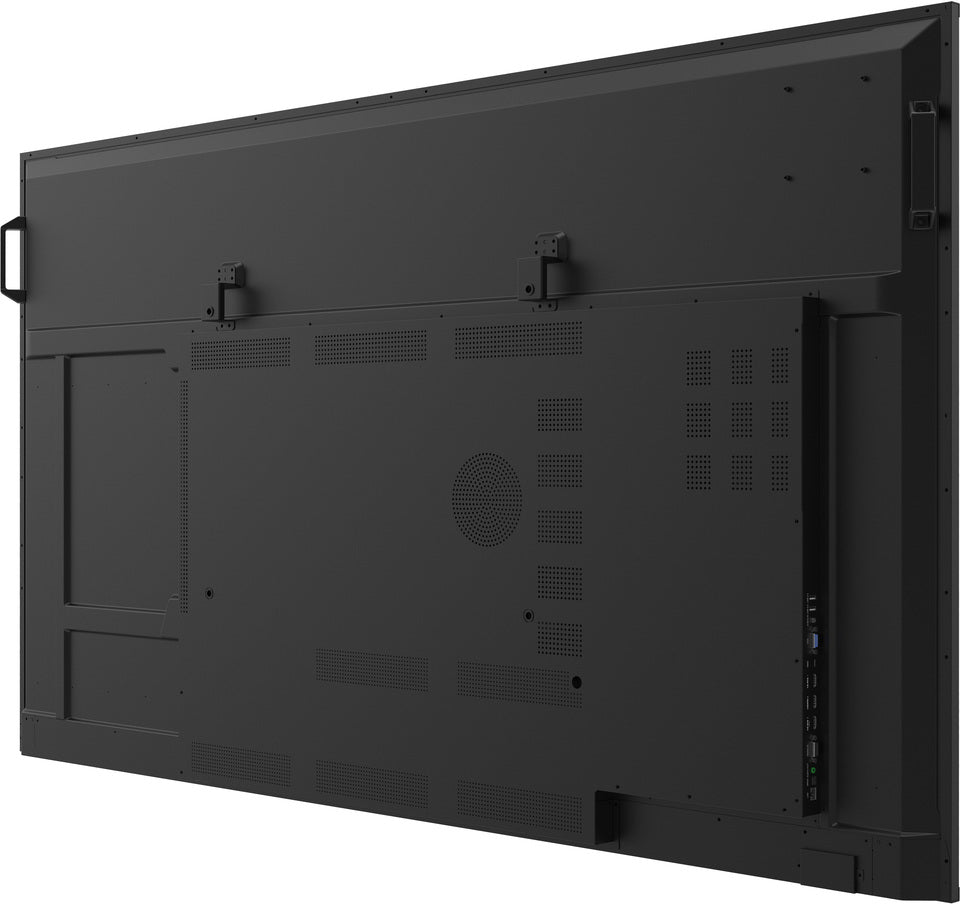

| Inputs | 3 × HDMI (HDCP 1.4/2.2, HDMI 2.1, ARC on HDMI 3), 1 × VGA (1080p@60Hz), 1 × PC Audio In (3.5mm), 1 × RS-232 |
| Outputs | 1 × Audio Out (3.5mm), 1 × SPDIF |
| USB Ports | 2 × USB-A (media playback/system update), 1 × USB-C (DP1.2, HDCP 1.4/2.2 + Data 2.0) |
| LAN | RJ45 × 1 (Supports Wake-on-LAN) |
| Speakers | 10W × 2 |
| Power Supply | 100–240V AC ±10% |
| Power Consumption | 119.6W (Energy Star Certified) |

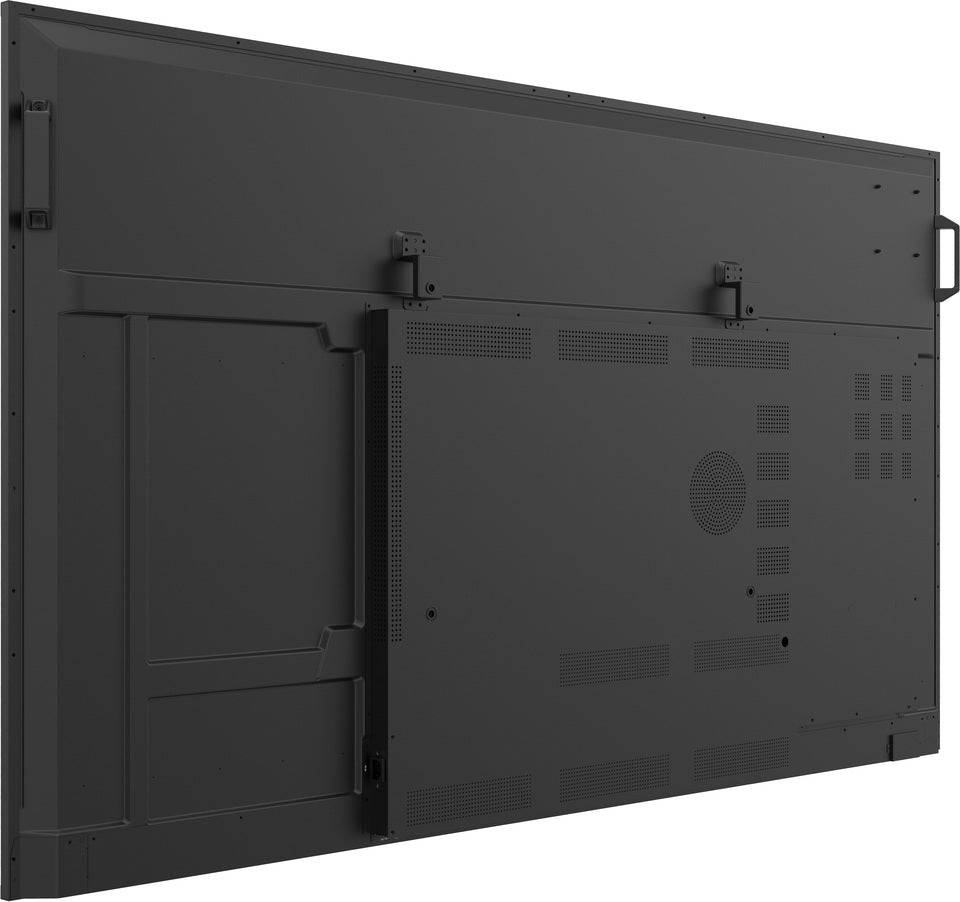

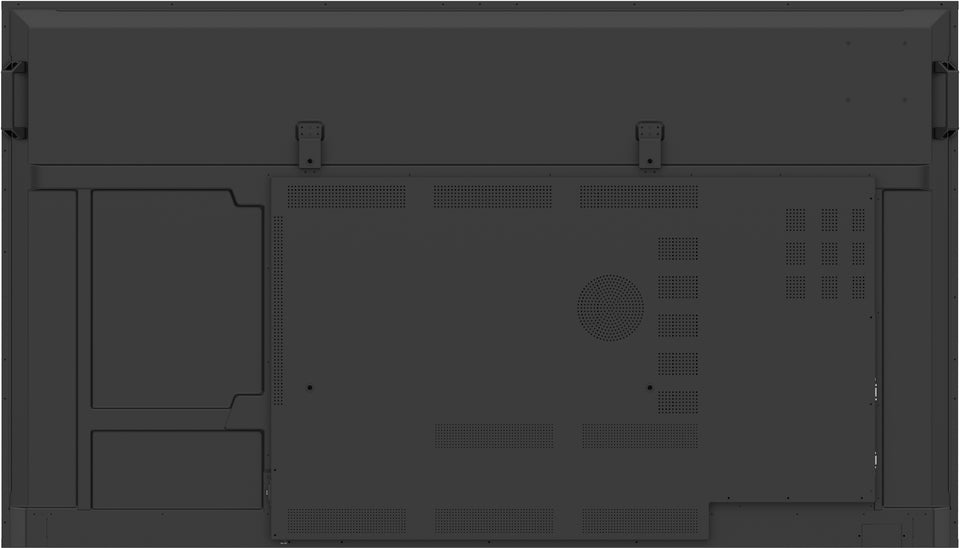

| VESA Mount | 600 × 400 mm |
| Operating Conditions | Temperature: 0–40°C, Humidity: 20–80% RH (non-condensing) |
| Operating Hours | 24/7 Continuous Operation |
| Dimensions (W × H × D) | 1688.4 × 966.02 × 79.8 mm (66.47" × 38.03" × 3.14") |
| Weight | Net: 31.75 kg / 70 lb, Gross: 42.1 kg / 92.81 lb |
| Regulatory Compliance | TÜV SÜD, FCC, Energy Star 8.0, EPEAT Gold, CE, CB, RoHS, ErP, REACH, WEEE, CA Prop 65 |
| Package Contents | Power Cord (3m), Remote Control, AAA Batteries (x2), Quick Start Guide, RS232 Adapter, Clamps (x5), Screws (x4), HDMI Cable (3m, LA Certified), Compliance Statement |
