Description

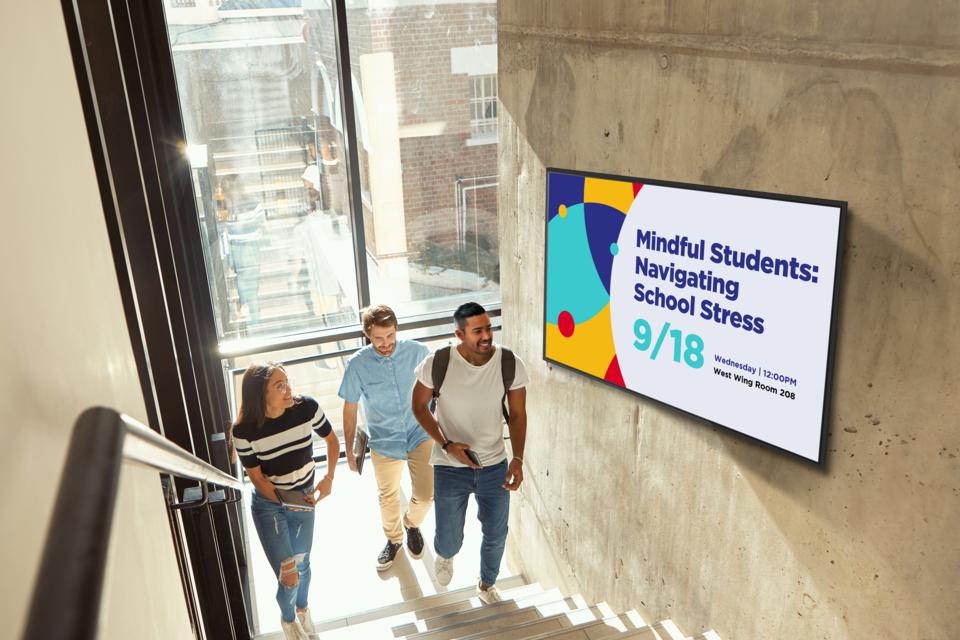

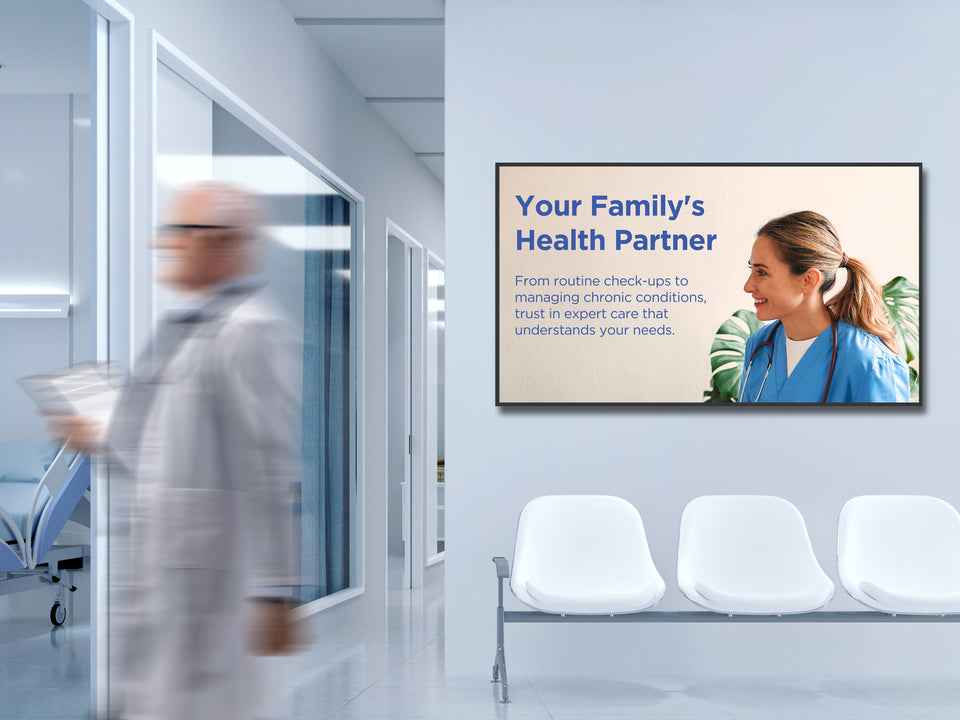

The ViewSonic® CDE7531 is a professional-grade 75-inch 4K UHD display designed for impactful visual communication in business, retail, education, and healthcare environments. Delivering vivid clarity and superior reliability, it supports both landscape and portrait orientations for versatile signage applications.

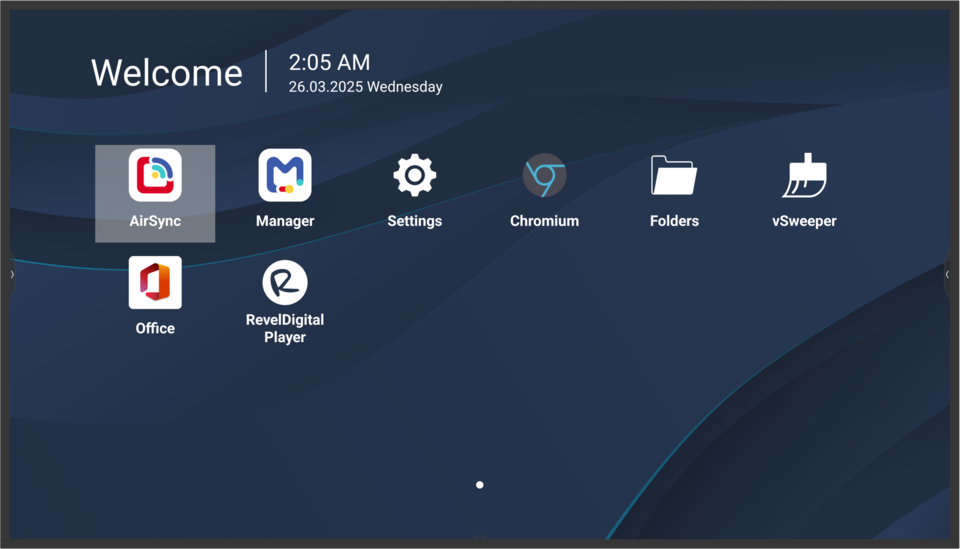

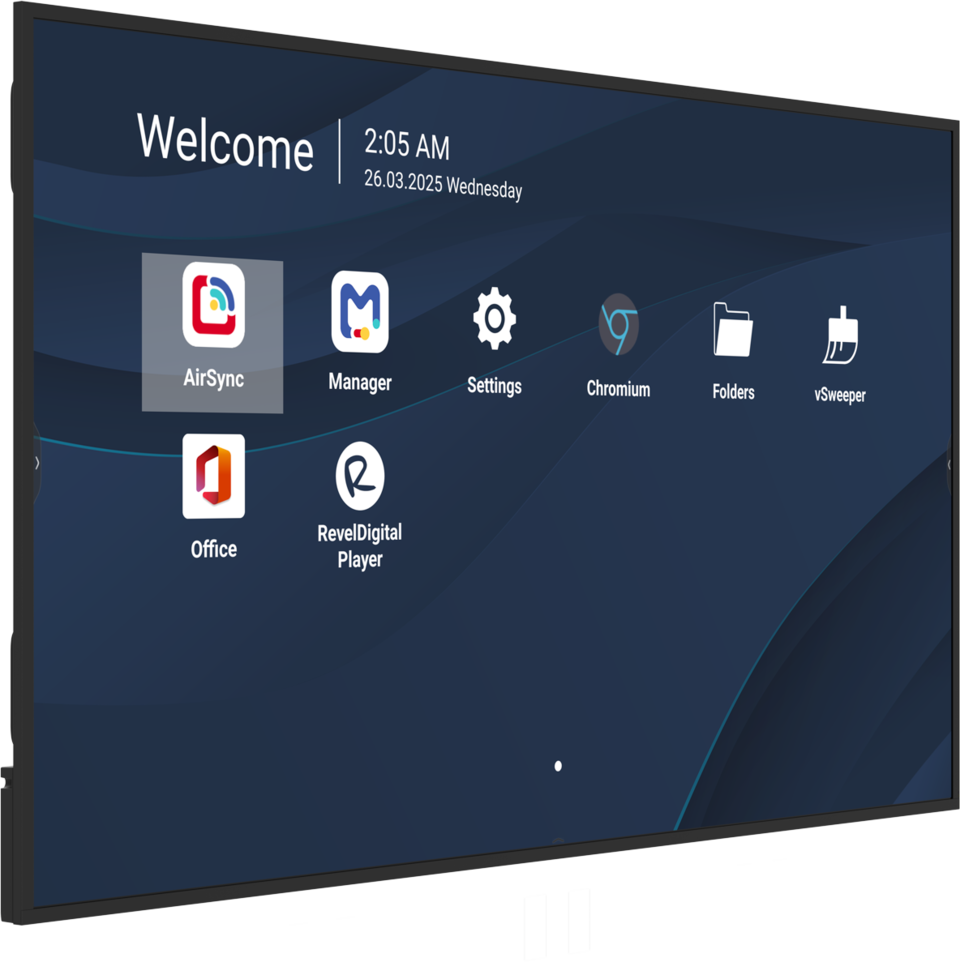

Equipped with Android 14 AOSP and a next-generation quad-core ARM Cortex-A73 processor with 8GB RAM, the CDE7531 ensures smooth multimedia performance, rapid response, and efficient playback scheduling. Its Fast Warm Boot enables content to launch in under 7 seconds, minimizing downtime. With USB media playback and auto failover, it guarantees continuous content display—even without network connectivity.
Designed for 24/7 operation, the CDE7531 combines commercial-grade brightness (500 nits), a 50,000-hour backlight life, and anti-glare coating for clear visuals in any environment. ProAV integration and centralized control via Web UI, RS232, and ViewSonic Manager software provide effortless remote management. Featuring triple HDMI inputs, USB-C connectivity with 65W power delivery, and dual 16W speakers, it offers seamless integration into modern digital ecosystems.
| Category | Specification |
|---|---|
| Display | 75” TFT LCD module with DLED backlight |
| Display Area (mm) | 1650.24 (H) × 928.26 (V); 74.6” diagonal |
| Resolution | 3840 × 2160 (4K UHD) |
| Aspect Ratio | 16:9 |
| Brightness | 500 nits |
| Contrast Ratio | 1200:1 (typical) / 5000:1 (DCR) |
| Viewing Angle | 178° (H) / 178° (V) |
| Response Time | 6.5ms |
| Backlight Life | 50,000 hours |
| Surface Treatment | Anti-glare, 3H hardness, 25% haze |

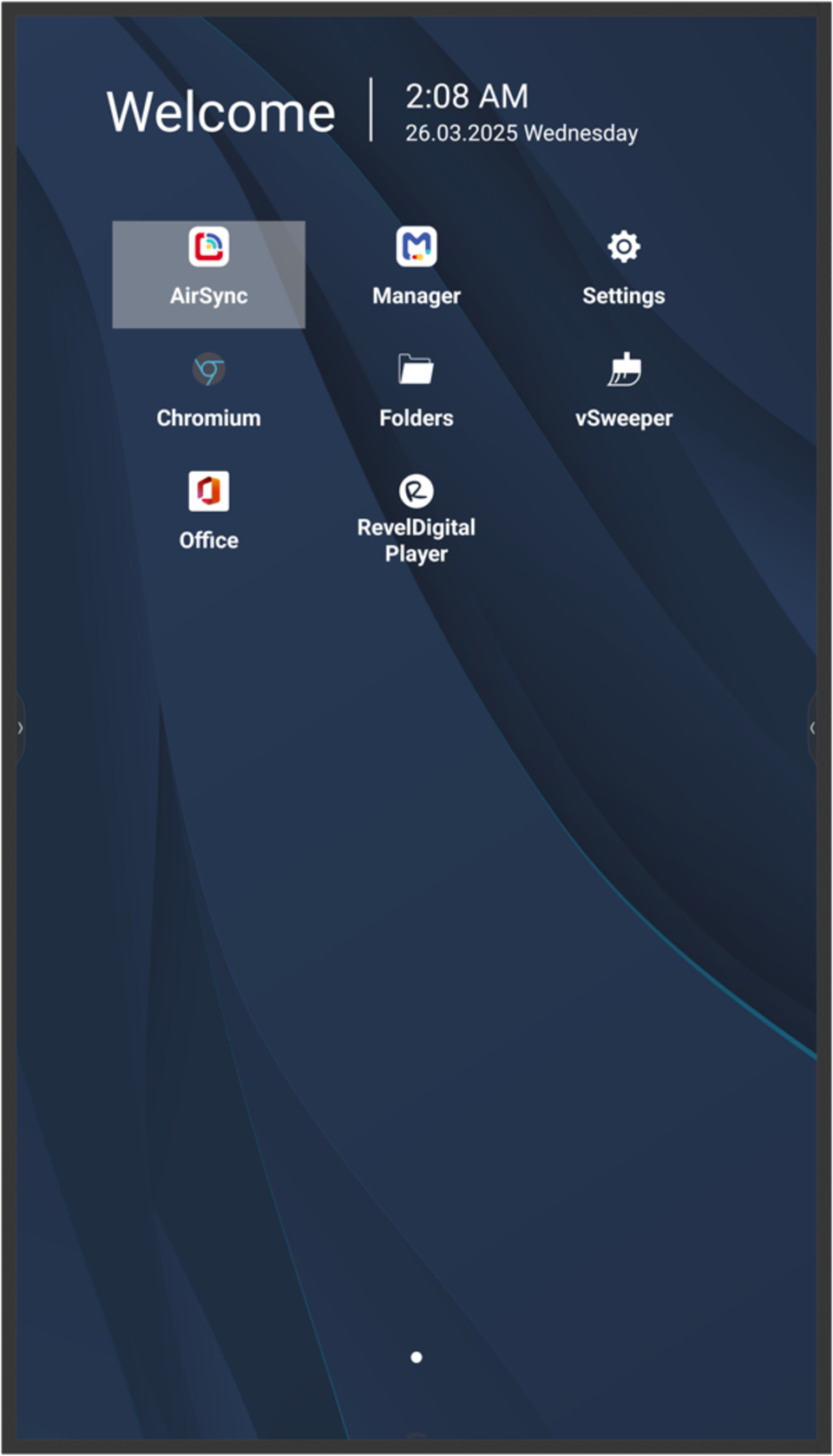

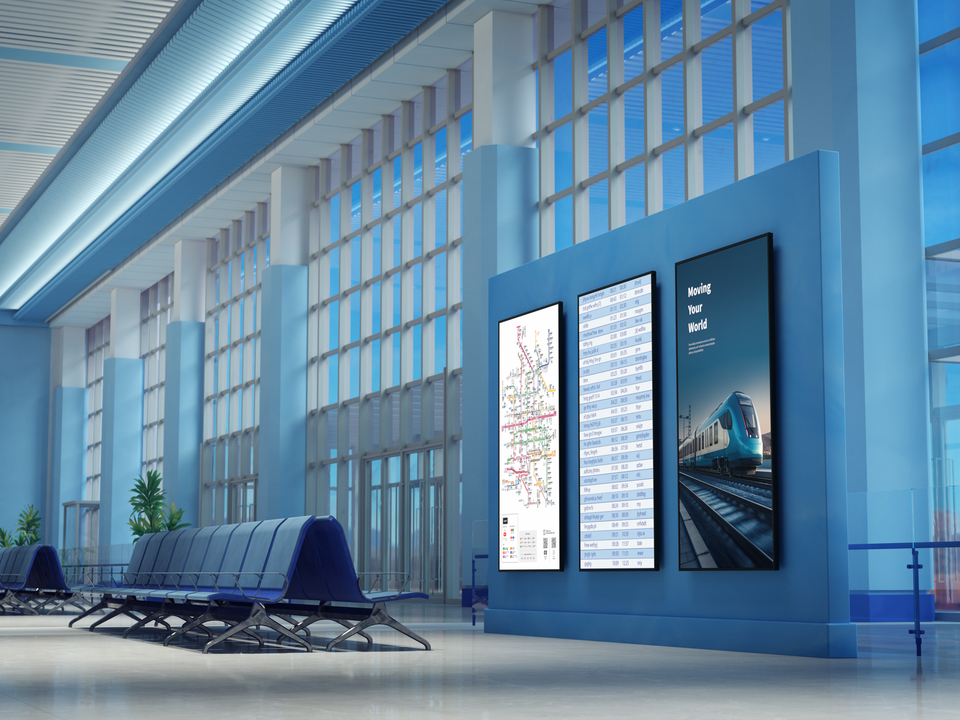

| Orientation | Landscape / Portrait |
| Bezel Width | 15.9mm (all sides) |
| Processor | Quad-core ARM Cortex-A73 |
| RAM / Storage | 8GB DDR4 / 32GB internal |
| Operating System | Android 14 AOSP (upgradeable to Android 16) |

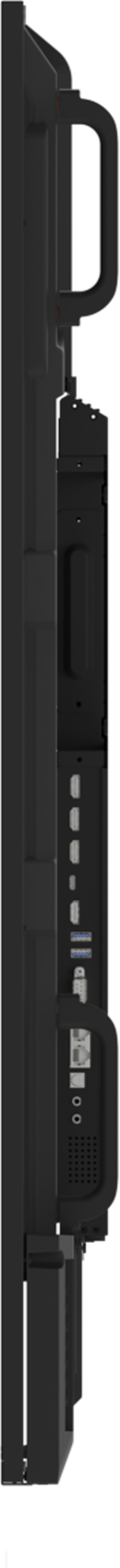

| Inputs | 3× HDMI 2.0 (HDMI1 supports ARC), 1× Audio In (3.5mm), 1× RS232, 1× OPS slot, 1× WiFi slot |
| Outputs | 1× HDMI Out, 1× Audio Out (3.5mm), 1× SPDIF |
| USB Ports | 2× Type-A (USB 2.0 ×1, USB 3.2 Gen1 ×1), 1× Type-C (PD 65W, DP1.2, USB 2.0 data) |
| LAN | 2× RJ45 (LAN-In 10/100M, LAN-Out 1000M) |
| Speakers | Dual 16W |
| Power Supply | 100–240 VAC ±10% |
| Power Consumption | 89.19W (Energy Star certified) |
| Operating Conditions | Temperature: 0–40°C / Humidity: 20–80% RH |

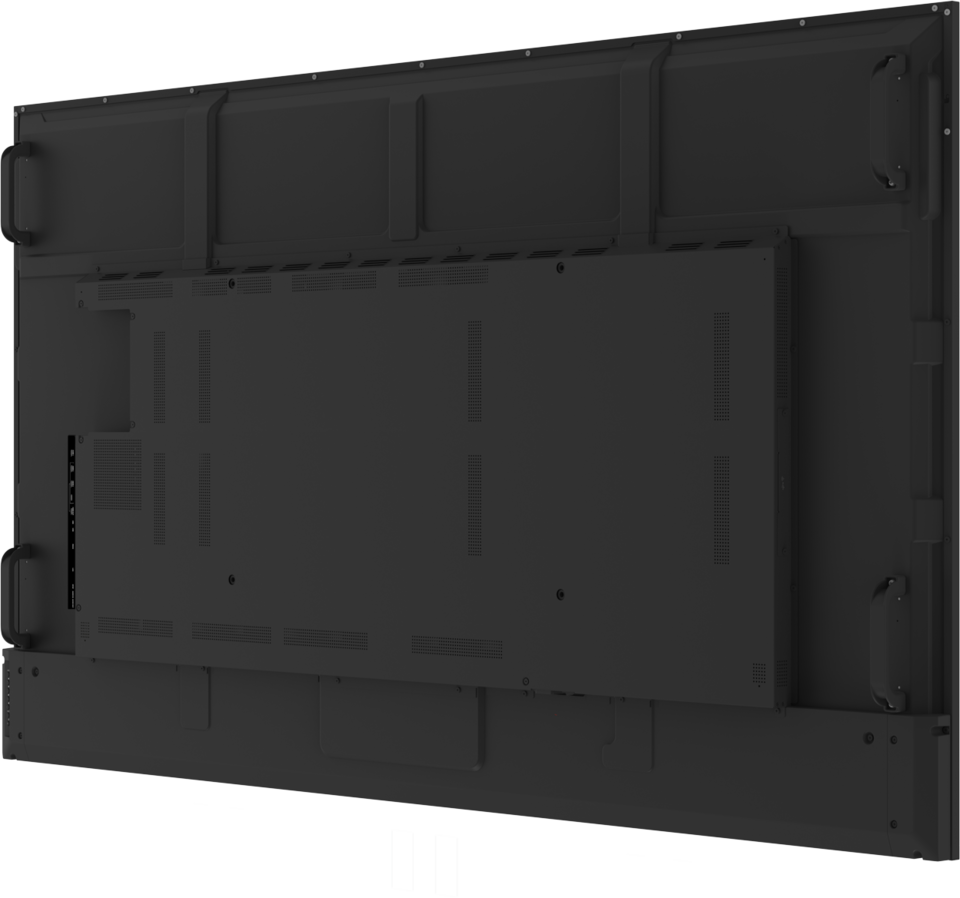

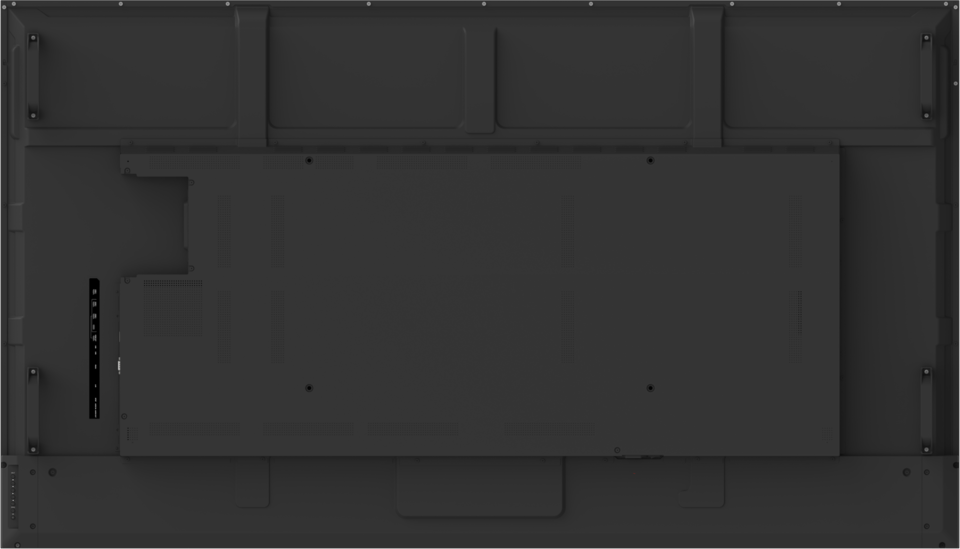

| Mounting | VESA® 600 × 400 mm |
| Operation Time | 24/7 continuous use |
| Dimensions (W×H×D) | 1685.6 × 963.7 × 68 mm (66.36" × 37.94" × 2.68") |
| Weight | Net: 34.15 kg / 75.29 lb • Gross: 48.44 kg / 106.79 lb |

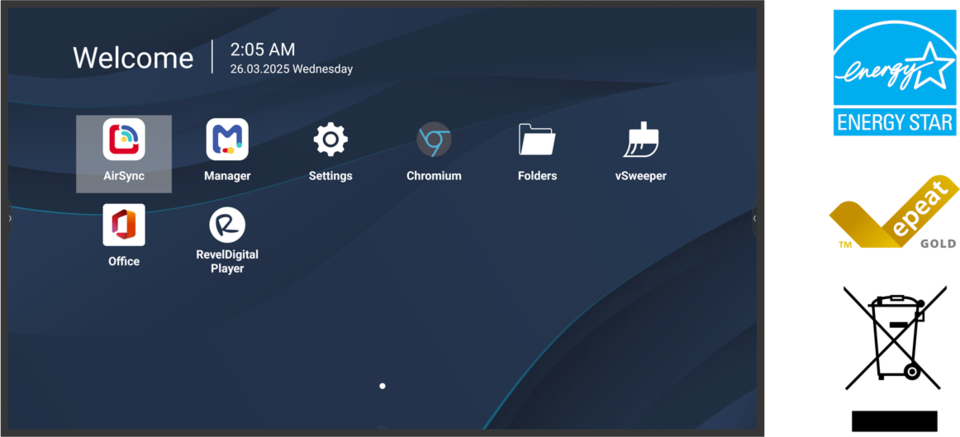

| Certifications | cTUVus, FCC/ICES003, Energy Star 8, EPEAT Gold, CE, RoHS, REACH, WEEE, CA65, ErP-Eco |
| Included Software | ViewSonic Manager (device management), AirSync (wireless presentation) |
