Description

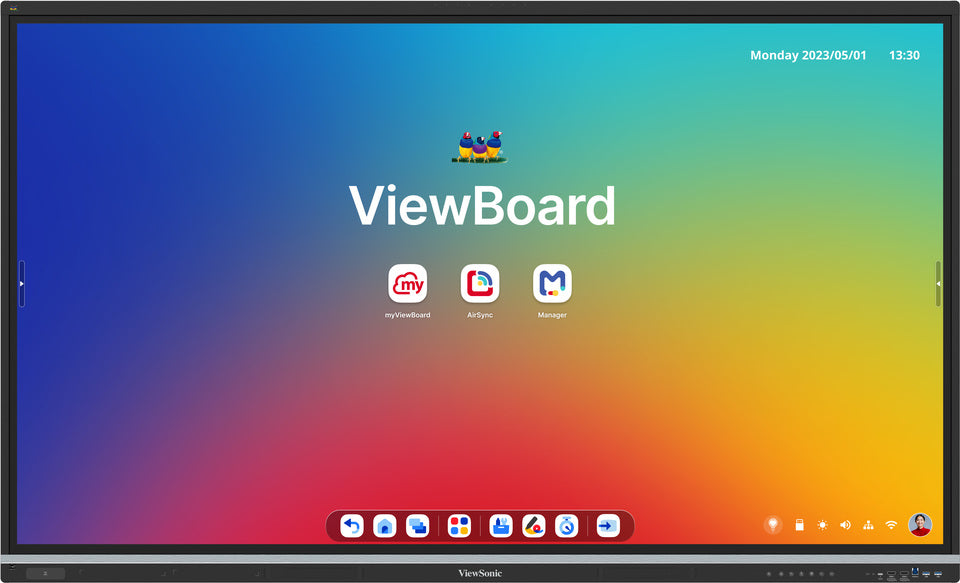

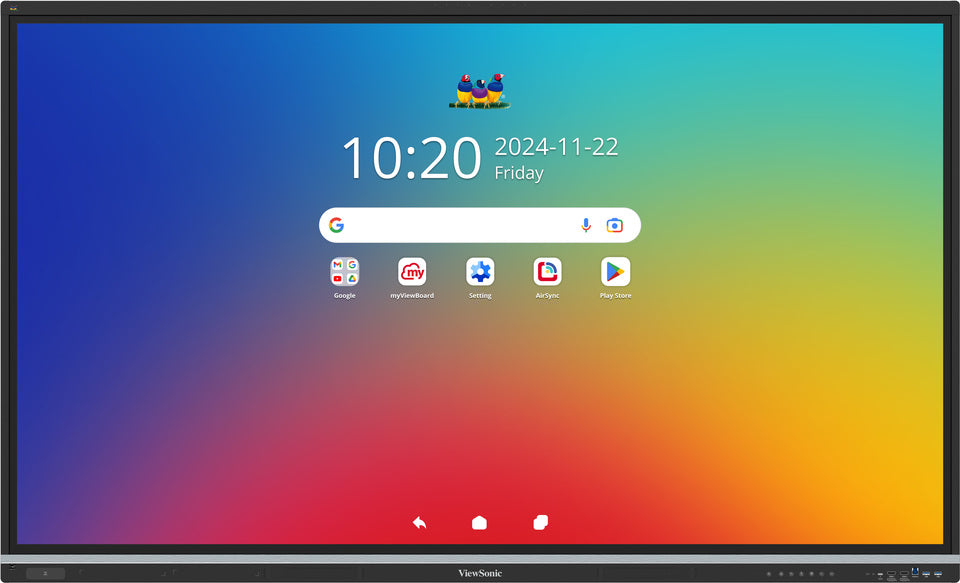

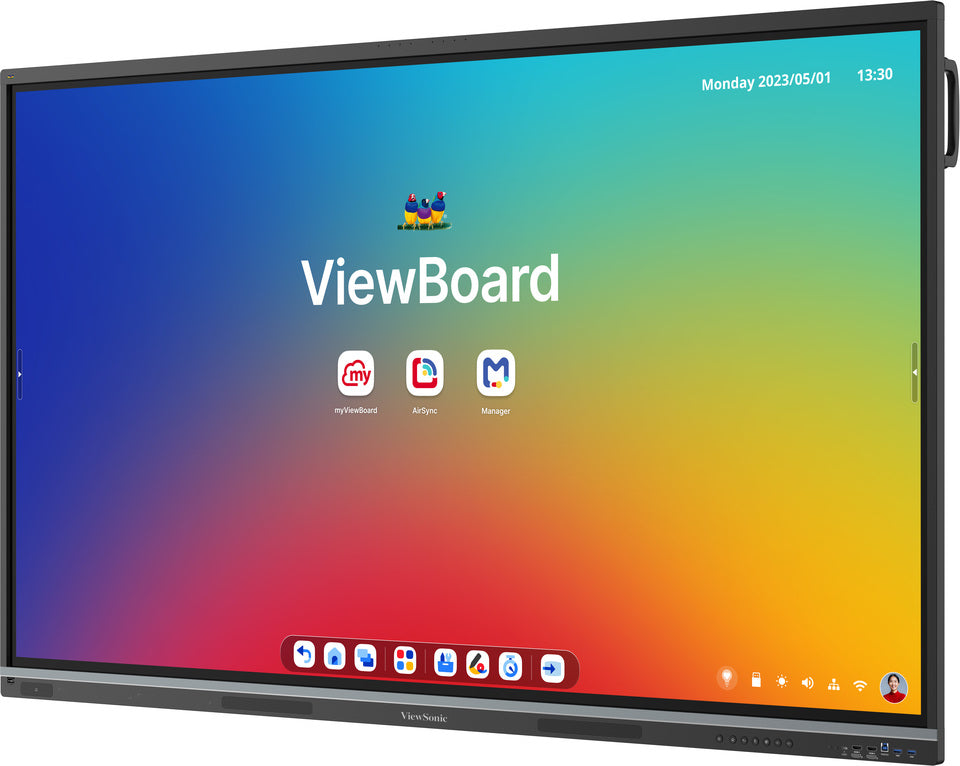

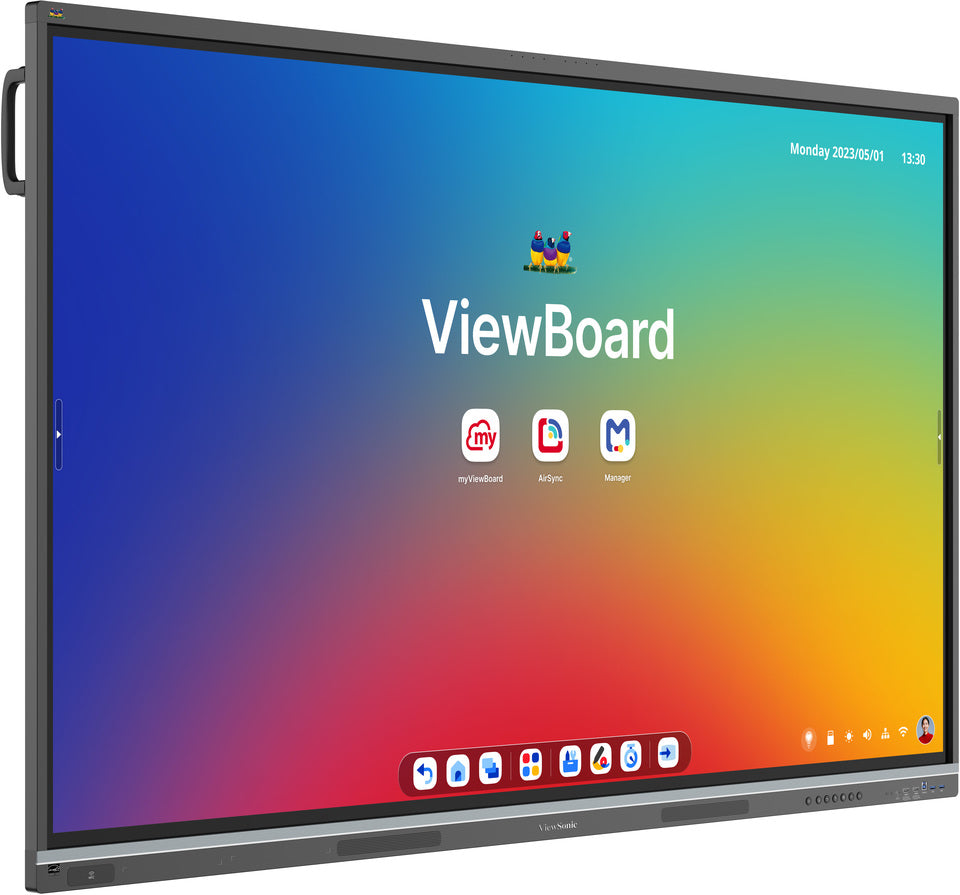

The ViewSonic® ViewBoard® IFP7551 redefines interactive learning and collaboration with its 75-inch 4K UHD display and ultra-responsive 50-point touch technology. Instantly annotate with “Write Away” functionality, supported by advanced palm rejection for a natural writing experience. Powered by Android 14 and EDLA-certified, it offers secure access to Google Play and integrated ViewSonic Education Software for an all-in-one teaching solution. NFC and SSO sign-in allow quick personalization, while its 70W speaker system with an 8-microphone array ensures immersive audio and crystal-clear communication. With EPEAT Silver certification and an energy-efficient design, the IFP7551 combines innovation, interactivity, and sustainability for modern classrooms and meeting spaces.
| Category | Specification |
|---|---|
| Display | 75" TFT LCD with DLED backlight, UHD 3840x2160 resolution, 16:9 aspect ratio, 400 nits brightness (typ.), 1.07B colors, 1200:1 contrast ratio (typ.), 178° viewing angles, 9H hardness AG+AF coating |
| Touch | Ultra Fine IR Touch Technology, 50-point touch with palm rejection, 32767 x 32767 touch resolution |
| Processor & Storage | Octa-Core CPU, 16GB RAM, 128GB storage |
| Operating System | EDLA-certified Android 14 |
| Audio | 25W x2 front soundbar + 20W subwoofer (70W total) |
| Microphone | Built-in 8-array microphone |
| Connectivity (Input) | HDMI x4 (2 front HDMI 2.1 with CEC, HDCP; 2 rear HDMI 2.1 with ARC), VGA x1, DisplayPort x1, Audio In x1, RS232 x1, Micro SD x1, OPS slot x1 |
| Connectivity (Output) | HDMI Out x1 (HDMI 2.1, HDCP 1.x), Audio Out x1 (Line Out), SPDIF x1 (optical) |
| USB Ports | USB-A x5 (4x USB 3.2 Gen1 SmartPort, 1x USB 2.0 system update), USB-B x2, USB-C x3 (DP1.2, Ethernet 100M, PD up to 65W) |
| Network | LAN x2 (RJ45 10/100/1000M), WiFi slot |
| Features | NFC reader, light sensor, Write Away pen sensor, SmartPort USB, LAN sharing between IFP and slot-in PC |
| Bundled Software | myViewBoard for Android, myViewBoard for Windows (VPC), AirSync Wireless Presentation, Manager Device Management, ViewSonic Launcher |
| Power | 100–240V AC ±10%, Power Consumption: On 99.84W, Off <0.5W |

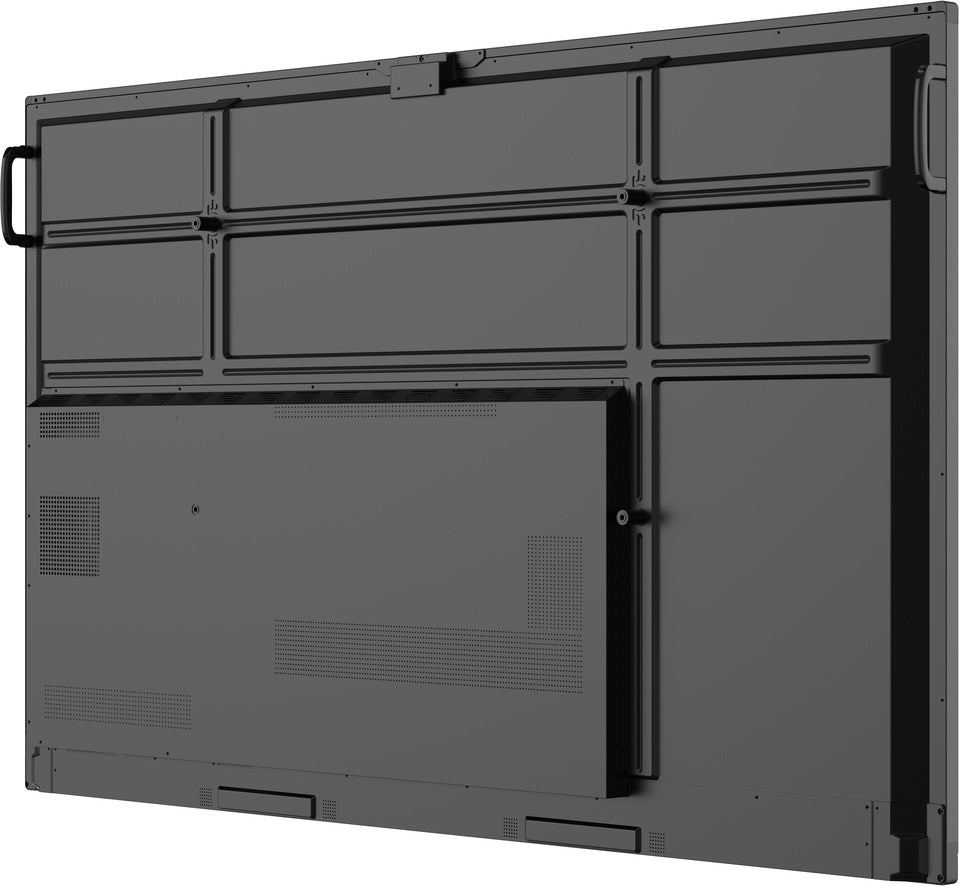

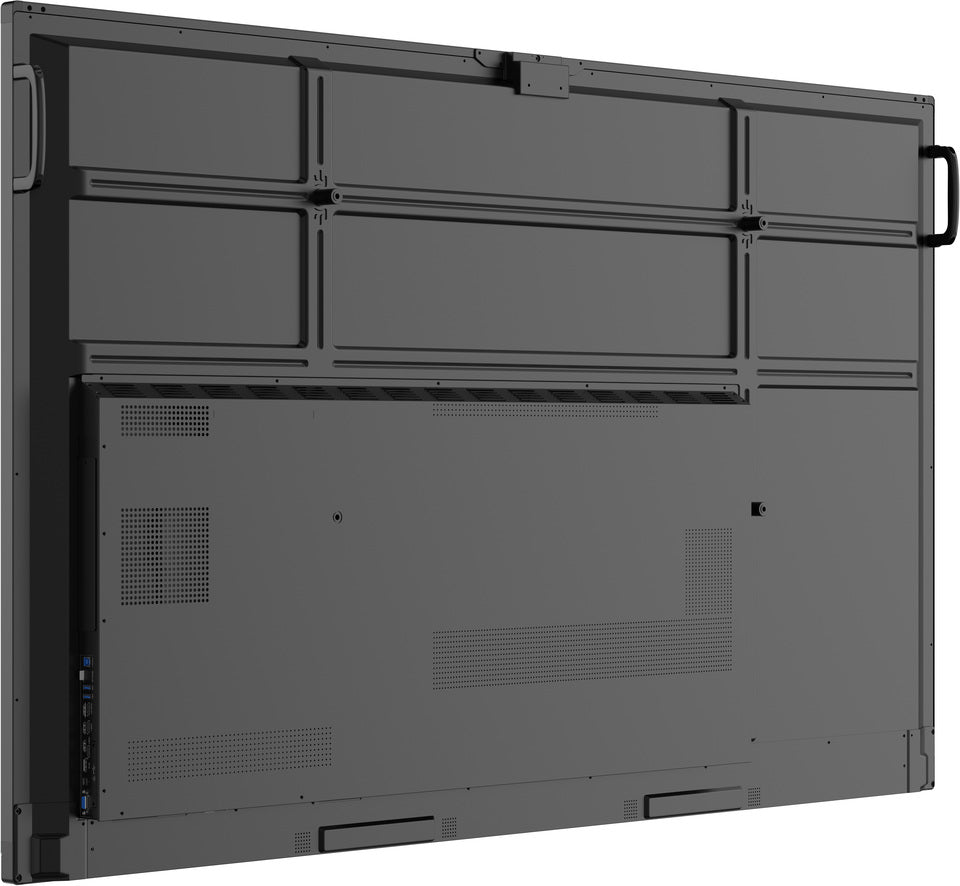

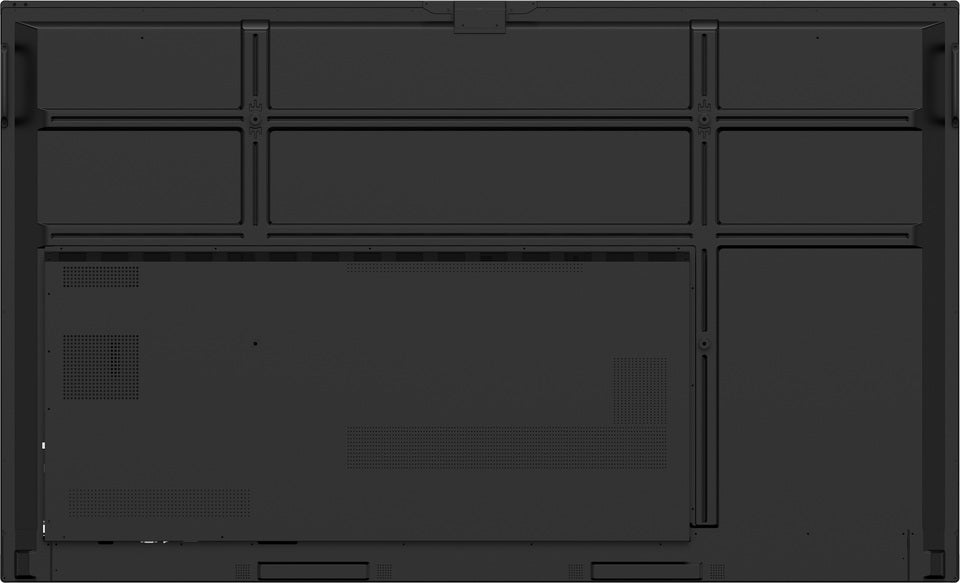

| Mounting | VESA 800 x 400 mm |
| Dimensions (W x H x D) | 67.29” x 40.85” x 3.36” (1709.1 x 1037.5 x 85.5 mm) |
| Weight | Net: 101.54 lb (46.06 kg); Gross: 126.88 lb (57.55 kg) |

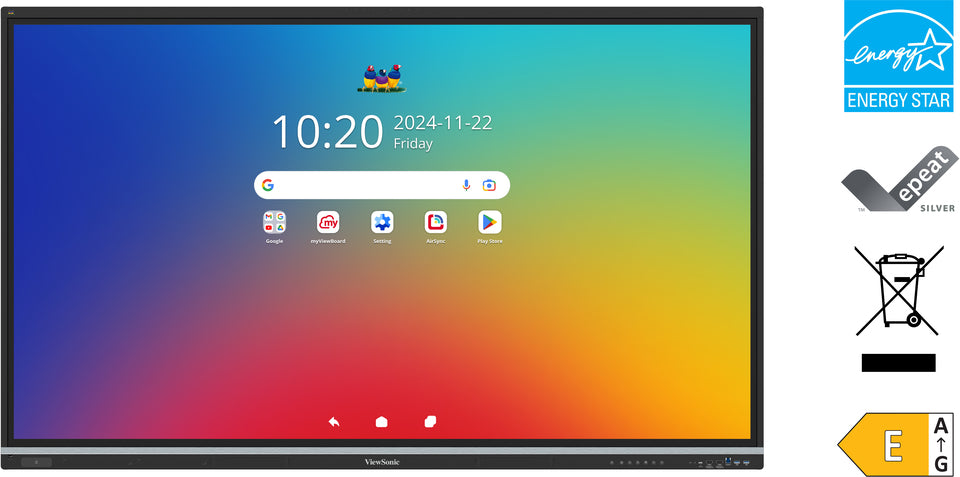

| Certifications | cTUVus, FCC, CE, Energy Star 8.0, EPEAT Silver, RoHS, ErP-Eco, REACH, LBL, Flicker-Free |
| Package Contents | Power cord, HDMI cable, USB-C cable, USB touch cable, RS232 adapter, 2x pens, camera plate, clamp, screws, remote control, batteries, quick start guide |
| Compatible Slot-In PCs | VPCF5-W33-G1, VPC37-W53-G1, VPC35-W53-G1, VPC-A31-O1 |
