Description

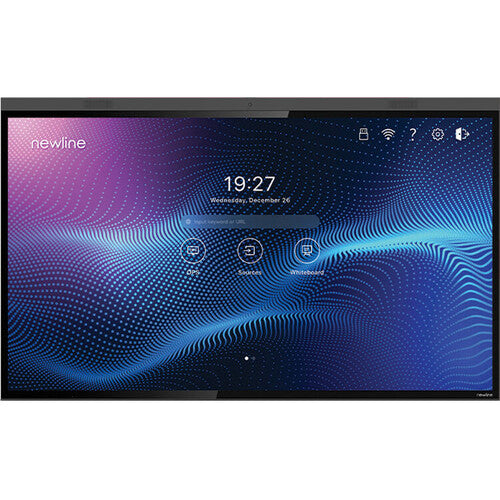

The Newline Z Pro Series 75" Interactive Display (TT-7524ZPRO) is a premium all-in-one collaboration solution designed for classrooms, meeting rooms, and enterprise environments. Featuring Google EDLA certification and powered by Android 13, it provides secure, seamless access to Google Workspace, the Play Store, and user-managed profiles for shared spaces.
Its immersive 4K UHD display delivers exceptional clarity with optical bonding and a wide 178° viewing angle, ensuring consistent visibility from anywhere in the room. Superior projected capacitive (PCAP) touch technology supports up to (40) touch points on Windows, enabling precise, natural interaction with finger or stylus input.
Built for modern connectivity, the TT-7524ZPRO includes USB-C with up to 100W power delivery, Wi-Fi 6, Bluetooth 5.2, and extensive I/O options. Integrated speakers, an 8-microphone array, and proximity sensing further enhance collaboration, making the Z Pro Series a powerful and future-ready interactive display platform.
| Specification | Details |
|---|---|
| Screen Size | 75 inches |
| Resolution | 3840 × 2160 (UHD 4K) |
| Display Type | LCD with Direct LED Backlight |
| Aspect Ratio | 16:9 |
| Brightness | 400 cd/m² |
| Contrast Ratio | 4000:1 (typical) |
| Viewing Angle | 178° |
| Refresh Rate | 60 Hz |
| Touch Technology | Projected Capacitive Touch (PCAP) |
| Touch Points | Android: 20 points / Windows: 40 points |
| Touch Surface | Anti-Glare, Anti-Fingerprint, Antimicrobial |
| Operating System | Android 13 |
| CPU | Arm Cortex-A73 ×4 + Cortex-A53 ×4 |
| GPU | Mali-G52 |
| Memory | 8 GB RAM |
| Storage | 64 GB ROM |
| Speakers | Dual 20W front-facing speakers |
| Microphones | 8-mic array (up to 26 ft pickup) |

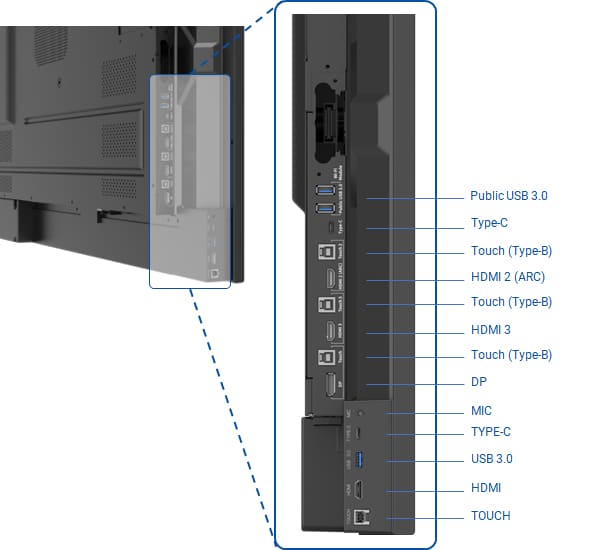

| USB Ports | USB-C (100W PD), USB-C (no PD), USB-B (Touch), USB-A |
| Video Inputs | HDMI 2.0, DisplayPort |
| Network | RJ-45 In/Out, Wi-Fi 6, Bluetooth 5.2 |
| Mounting | Wall mount or mobile stand |
| VESA Mount | 800 × 400 mm |
| Proximity Sensor | Yes |
| Wake-on-LAN | Supported |
