Description

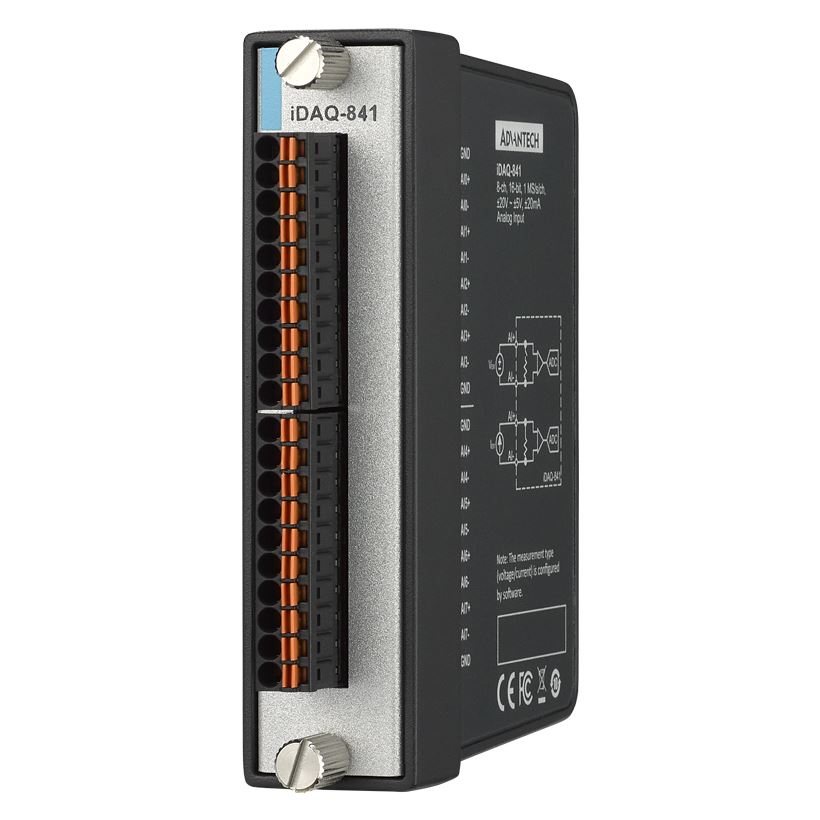

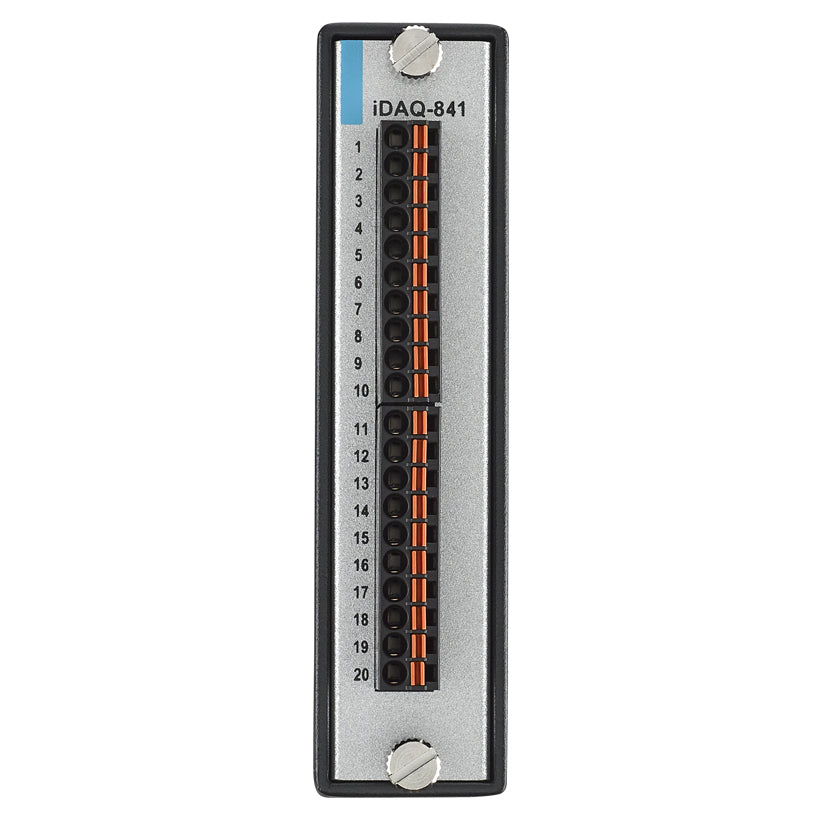

The Advantech iDAQ-841 is a high-performance 8-channel analog input module designed for precise, high-speed data acquisition in industrial and test applications. Featuring true simultaneous sampling at up to 1 MS/s per channel with 16-bit resolution, the iDAQ-841 ensures accurate capture of fast-changing signals without phase distortion.
This module supports both voltage and current measurements with software-configurable input ranges, making it highly flexible for mixed-signal environments. Integrated isolation protection, configurable low-pass filtering, and advanced triggering capabilities provide reliable operation in electrically noisy industrial conditions. Compact and rugged, the iDAQ-841 is well-suited for automated test systems, condition monitoring, and precision measurement platforms.
| Specification | Details |
|---|---|
| Product Type | Analog Input iDAQ Module |
| Channels | 8 differential channels |
| Resolution | 16-bit |
| Sampling Rate | Up to 1 MS/s per channel (simultaneous sampling) |
| Input Types | Voltage and current |
| Voltage Input Ranges | ±20 V, ±12.5 V, ±10 V, ±5 V (software configurable) |
| Current Input Range | ±20 mA |
| Maximum Input Voltage | ±20 V |
| Over-Voltage Protection | ±30 V |
| Input Impedance | 1 MΩ (voltage), 500 Ω (current) |
| Analog Filtering | Software-selectable low-pass filter (22.5 kHz or 250 kHz) |
| Isolation Protection | 600 VRMS |
| Acquisition Modes | Instant or buffered |
| FIFO Buffer | 512 samples |
| Trigger Support | Analog trigger with programmable threshold and polarity |
| Power Consumption | 650 mW typical / 900 mW max |
| Dimensions (W × H × D) | 100 × 80 × 25 mm |
| Weight | 176 g |
| Operating Temperature | -20 °C to 60 °C |
| Operating Humidity | 10% to 90% RH, non-condensing |
| Certifications | CE, FCC, CB, UL |
