Description

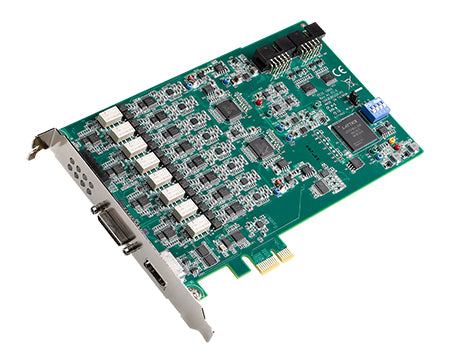

The Advantech PCIE-1803-A1E is a high-accuracy PCI Express data acquisition card engineered for sound, vibration, and dynamic signal measurement applications. Designed with eight simultaneously sampled analog input channels and 24-bit resolution, this card delivers exceptional signal fidelity for precision testing and monitoring environments.
Optimized for use with IEPE sensors such as accelerometers and microphones, the PCIE-1803-A1E features built-in excitation, software-selectable AC/DC coupling, and integrated anti-aliasing filters. Its wide input range and low noise performance make it ideal for research, industrial diagnostics, and advanced condition monitoring systems.
| Specification | Details |
|---|---|
| Brand | Advantech |
| Product Type | Dynamic Signal Acquisition PCIe Card |
| Model | PCIE-1803-A1E |
| Analog Input Channels | 8 (simultaneous sampling) |
| ADC Resolution | 24-bit (delta-sigma) |
| Maximum Sampling Rate | Up to 128 kS/s |
| Input Coupling | AC / DC (software selectable per channel) |
| Input Voltage Ranges | ±1 V, ±2 V, ±5 V, ±10 V |
| Dynamic Range | 102 dB |
| Total Harmonic Distortion (THD+N) | −102 dB |
| IEPE Excitation | 2 mA (per channel) |
| Trigger Modes | Start, Delayed Start, Stop, Delayed Stop |
| Data Transfer | Direct Memory Access (DMA) |
| Multi-Card Synchronization | Supported |
| Digital Inputs | 1 |
| Digital Outputs | 2 |
| Bus Interface | PCI Express x1 |
| I/O Connectors | 36-pin Mini SCSI, HDMI |
| Operating Temperature | 0 °C to 70 °C |
| Storage Temperature | −40 °C to 80 °C |
| Dimensions (L × H) | 168 × 100 mm |
| Power Consumption | +3.3 V / +12 V |
