Description

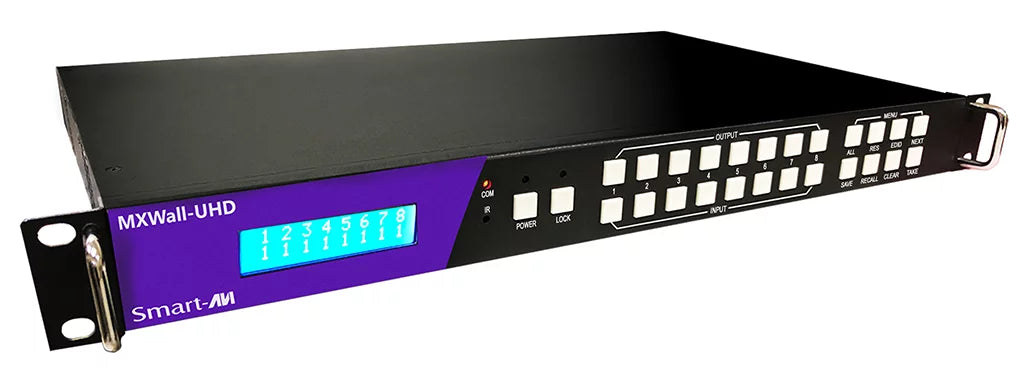

The SmartAVI MXWALL-UHD is a high-performance 8x8 HDMI matrix switch with an integrated 4K video wall processor, engineered for professional AV environments that demand seamless switching and flexible display control. Supporting Ultra HD resolutions up to 3840x2160 at 60Hz, this solution enables users to route and distribute eight input sources across eight displays while simultaneously creating dynamic multi-screen video wall layouts.
Designed for control rooms, digital signage, command centers, and broadcast applications, the MXWALL-UHD delivers smooth, uninterrupted switching with advanced video wall configuration capabilities. Users can easily customize layouts, stitch displays, and manage presets through intuitive web-based control, RS-232, or TCP/IP interfaces. Integrated audio extraction and insertion, IR matrix routing, and EDID management ensure full control over both video and audio signals across complex AV systems.
With robust build quality and enterprise-grade performance, the MXWALL-UHD provides reliable, scalable video distribution and visualization for mission-critical installations.
| Feature | Specification |
|---|---|

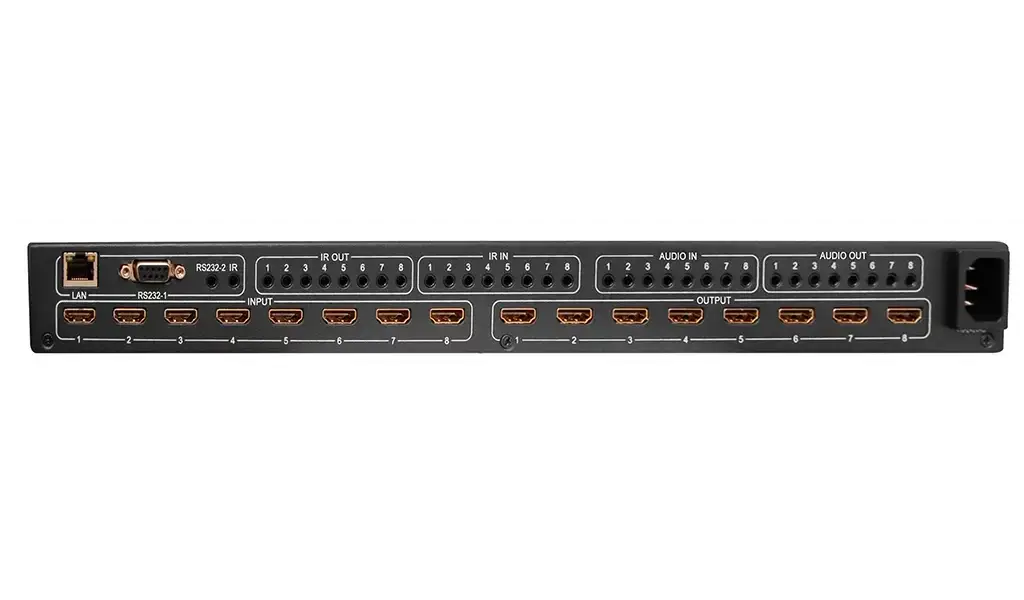

| Video Inputs | 8 x HDMI |
| Video Outputs | 8 x HDMI |
| Maximum Resolution | Up to 3840 x 2160 @ 60Hz |
| HDMI Standard | HDMI 2.0 |
| HDCP Compliance | HDCP 2.2 |
| Bandwidth | 18 Gbps |
| Switching Type | Seamless switching |
| Video Wall Support | Yes, multi-layout configurations |
| Video Wall Presets | 2x2, 2x4, 1x8 and custom layouts |

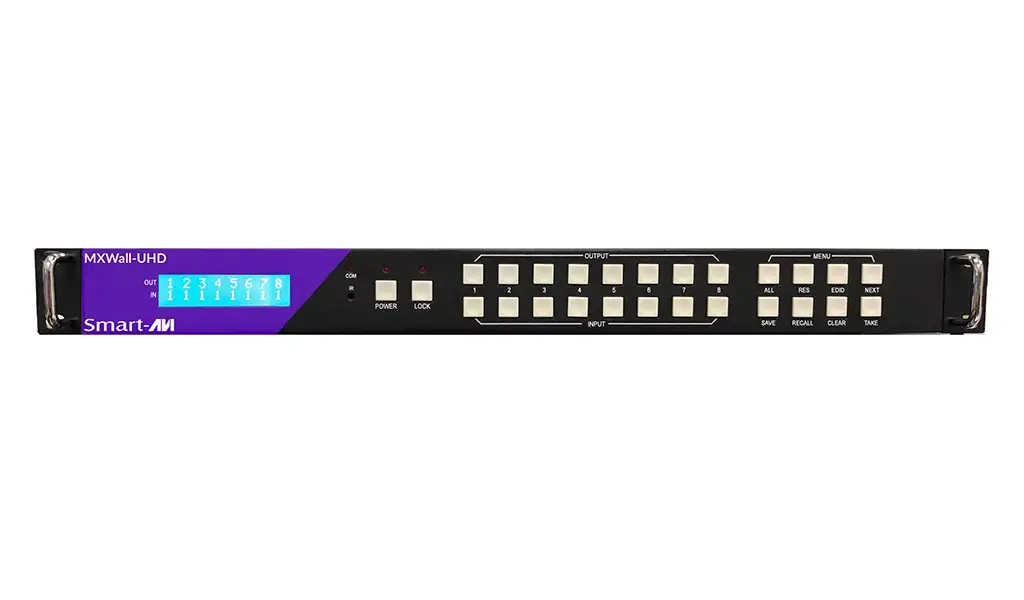

| Control Methods | Front panel, Web GUI, RS-232, TCP/IP |
| Network Control | LAN (10/100 Mbps Ethernet) |
| RS-232 | DB9 connector, 9600 baud rate |
| Audio Features | HDMI audio extraction and external audio insertion |
| IR Routing | IR matrix routing synchronized with video switching |
| EDID Management | Supported with multiple resolution presets |
| Output Resolution Options | 4K60, 4K30, 1080p, and other standard formats |
| Preset Storage | Up to 8 scene presets |
| Power Supply | 110–240VAC |
| Power Consumption | Up to 100W |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 70°C |
| Dimensions | 430 x 300 x 44 mm |
| Weight | Approximately 5 kg |
| Included Accessories | Unit, power cord |
