Description

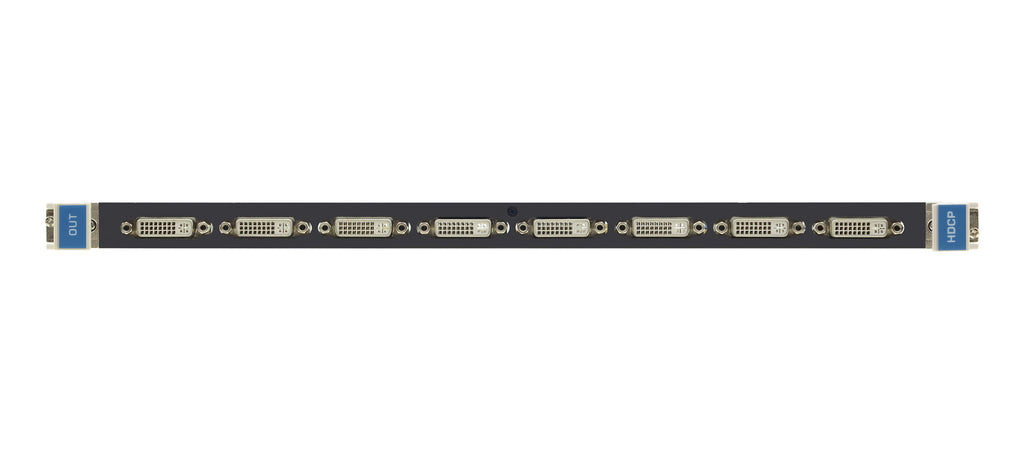

The Kramer HDCP-OUT8-F64 is an eight-channel DVI (HDCP) output card engineered for the VS-6464 Series Modular Multi-Format Digital Matrix Switchers. Designed to deliver reliable, high-performance video distribution, this output card supports HDMI over DVI, HDCP compliance, and 3D pass-through—ensuring seamless compatibility with professional AV environments.
With a total bandwidth of 6.75Gbps and eight DVI-D outputs, the HDCP-OUT8-F64 provides crisp signal integrity across demanding installations. Its robust build, wide operating temperature range, and full regulatory compliance make it ideal for enterprise, broadcast, control room, and digital signage applications. This standalone module installs easily into Kramer F64 frames and maintains the consistent quality expected from a Kramer Core component.
| Category | Details |
|---|---|
| Outputs | 8 DVI-D on DVI Molex 24-pin (F) connectors |
| Bandwidth per Channel | 2.25Gbps |
| Total Bandwidth | 6.75Gbps |
| HDCP / HDMI Compliance | HDCP compliant, HDMI support |
| 3D Pass-Through | Supported |
| Power Consumption | 23W |
| Operating Temperature | 0°C to +40°C (32°F to 104°F) |
| Storage Temperature | –40°C to +70°C (–40°F to 158°F) |
| Humidity | 10% to 90% RHL non-condensing |
| Regulatory Compliance | CE, FCC |
| Environmental Compliance | RoHS, WEEE |
| Product Dimensions (W × D × H) | 39.50 × 18.00 × 2.00 cm (15.55" × 7.09" × 0.79") |
| Product Weight | 0.7 kg (1.5 lbs) approx. |
| Shipping Dimensions (W × D × H) | 47.70 × 23.50 × 4.80 cm (18.78" × 9.25" × 1.89") |
| Shipping Weight | 1.0 kg (2.1 lbs) approx. |
