Description

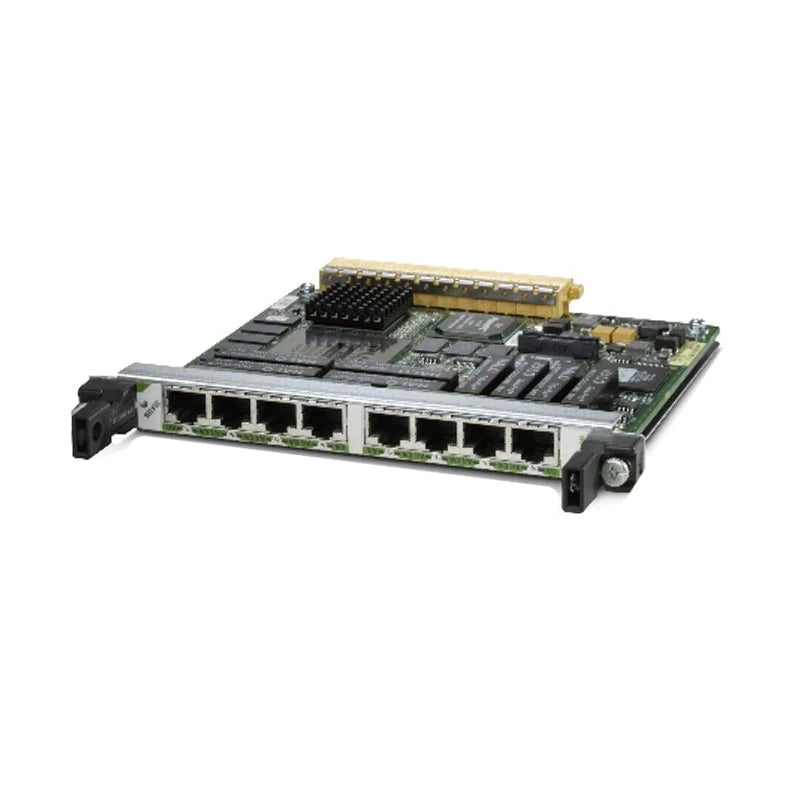

The Cisco SPA-8XCHT1/E1-V2 is a high-density, channelized T1/E1 Shared Port Adapter designed for service provider and enterprise WAN deployments. Delivering eight software-configurable T1 or E1 ports in a compact SPA form factor, this adapter supports channelized, fractional, and clear-channel configurations to meet diverse connectivity requirements.
Built on Cisco’s flexible SPA architecture, the adapter integrates CSU/DSU functionality and supports advanced encapsulation methods such as HDLC, PPP, Frame Relay, and Multilink PPP. It enables efficient aggregation of multiple T1 circuits while maintaining line-rate performance and granular DS0-level control.
Hot-swappable and supporting online insertion and removal (OIR), the SPA-8XCHT1/E1-V2 helps minimize downtime and simplifies maintenance. It is ideal for terminating multiple branch offices, carrier-connected sites, and high-density WAN environments where reliability, scalability, and cost efficiency are critical.
| Specification | Details |
|---|---|
| Manufacturer | Cisco |
| Product Type | Shared Port Adapter (SPA) |
| Ports | 8 × T1 or E1 (all ports configured as T1 or E1) |
| Interface Type | RJ-45 (RJ-45 to BNC adapter optional) |
| T1 Data Rate | Up to 1.536 Mbps per port |
| E1 Data Rate | Up to 2.048 Mbps per port |
| Channelization | Channelized, fractional, clear-channel E1 |
| Maximum Channels | Up to 256 DS0 channels |
| Encapsulation | HDLC, PPP, Frame Relay |
| Multilink Support | MLPPP, MLFR, LFI |
| CSU/DSU | Integrated |
| Clocking | Internal or network selectable per port |
| Hot-Swappable | Yes (OIR supported) |
| Power Consumption | Up to 9.4W |
| Form Factor | Single-height SPA |
| Weight | Approx. 0.75 lb (0.34 kg) |
| Compatibility | Cisco ASR, 7600, 12000 series platforms |
