Description

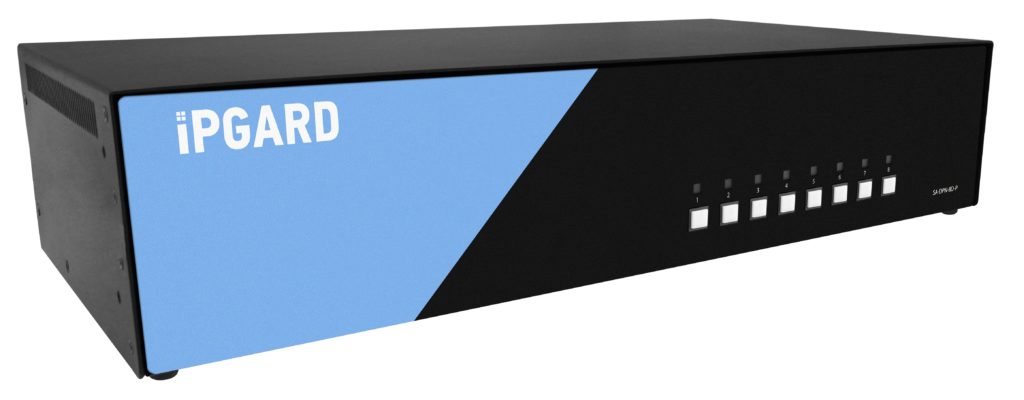

The iPGARD SA-DPN-8D-P is an advanced 8-port dual-head secure DisplayPort KVM switch designed for high-security environments that demand strict data isolation and reliable multi-system control. Built to meet rigorous security standards, this KVM enables operators to manage up to eight computers using a single dual-monitor workstation while maintaining complete channel separation.
Supporting up to 4K resolution at 60Hz, the SA-DPN-8D-P delivers crisp, high-performance video across dual displays. Integrated audio switching and CAC (Common Access Card) support make it ideal for government, military, and enterprise deployments requiring secure authentication and multimedia control. With hardened architecture, peripheral emulation, and front-panel switching, this solution ensures seamless operation without compromising security.
Engineered for mission-critical applications, the SA-DPN-8D-P combines robust performance, certified security, and intuitive control in a compact, rack-ready form factor.
| Specification | Details |
|---|---|
| Brand | iPGARD |
| Product Type | Secure DisplayPort KVM Switch |
| Number of Ports | 8-Port |
| Display Support | Dual-Head (2 Displays) |
| Video Interface | DisplayPort (20-pin) |
| Max Resolution | 3840 x 2160 @ 60Hz |

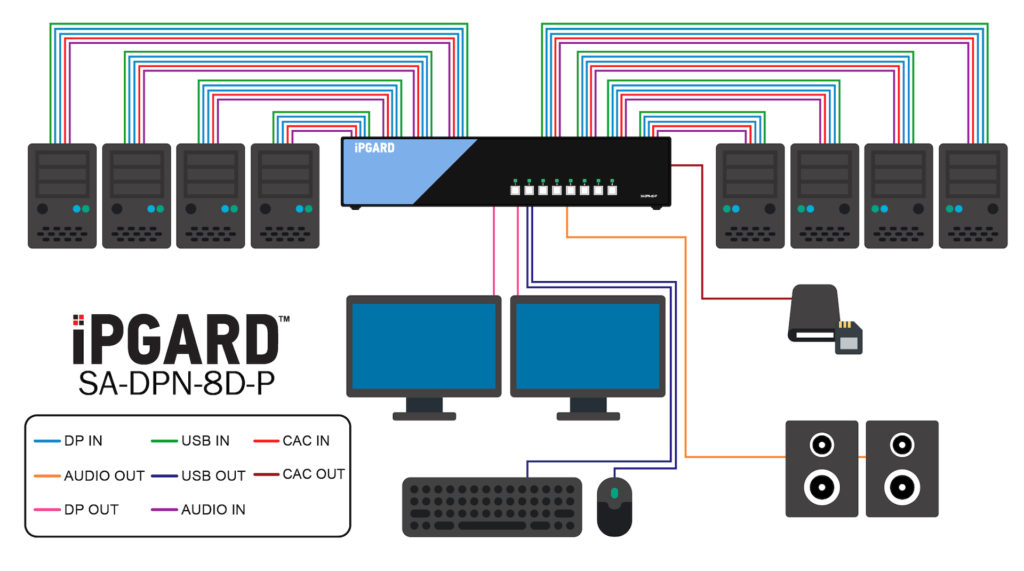

| Host Connections | 16 DisplayPort inputs (dual-head for 8 systems) |
| Console Connections | 2 DisplayPort outputs |
| USB Support | USB 1.1/1.0 for keyboard and mouse; USB 2.0 for CAC |

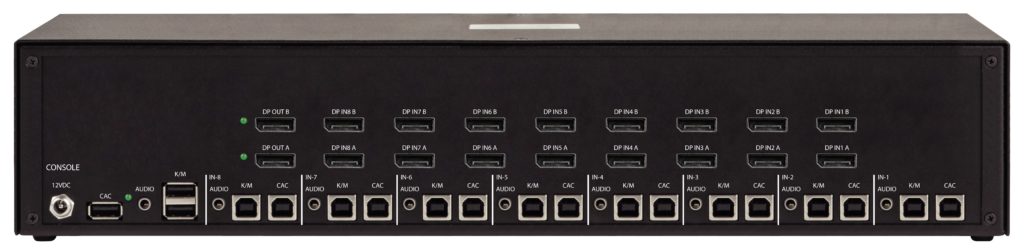

| USB Ports | 16 USB Type-B (host), 2 USB Type-A (keyboard/mouse), 1 USB Type-A (CAC) |
| Audio Support | Stereo 3.5mm input (8), stereo 3.5mm output (1) |
| CAC Support | Yes (Common Access Card / Smart Card Reader) |
| Security Compliance | Common Criteria Validated, NIAP Protection Profile PSS Ver. 4.0 |
| Peripheral Emulation | Keyboard, mouse, and video emulation |

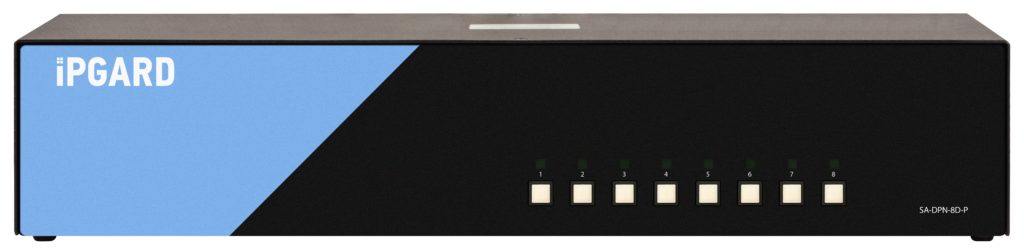

| Switching Method | Front-panel push buttons |
| Input Cable Length | Up to 20 ft |
| Output Cable Length | Up to 20 ft |
| Power Supply | 12V DC power adapter |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Humidity | 0–80% RH, non-condensing |
| Form Factor | Desktop / Rack-compatible |
