Description

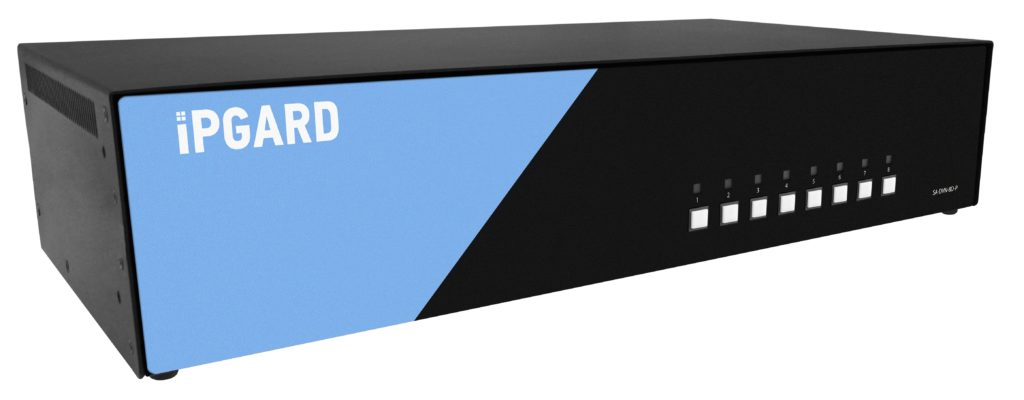

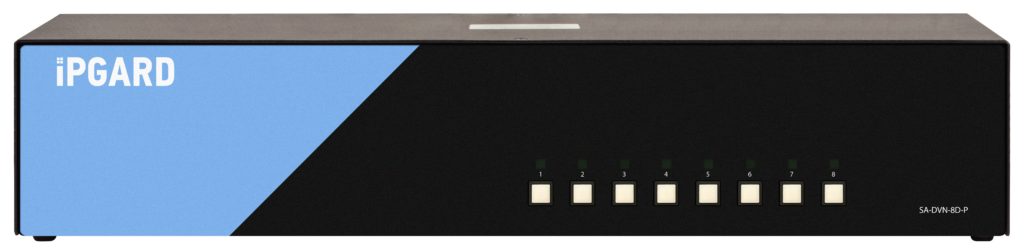

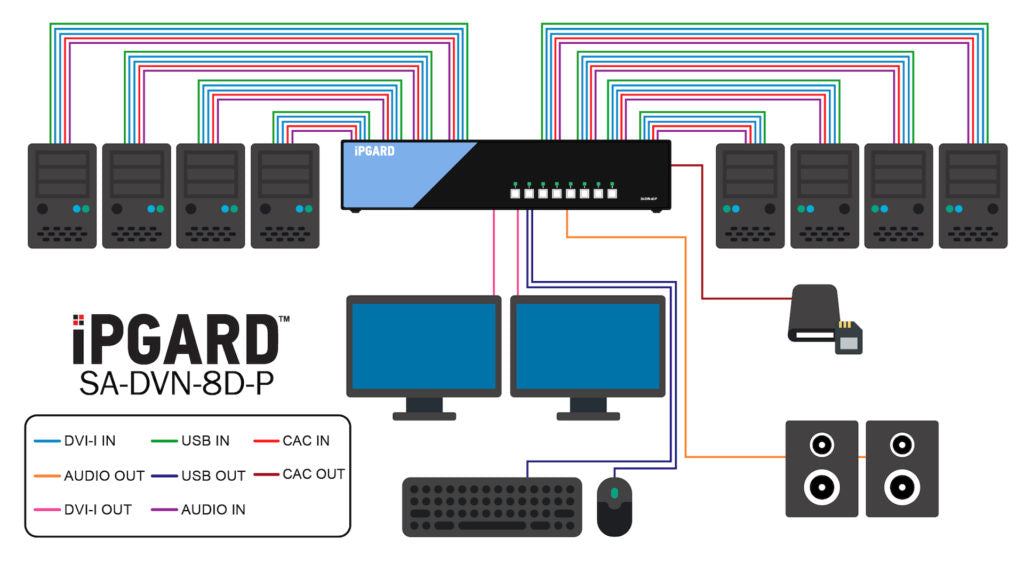

The iPGARD SA-DVN-8D-P is a high-security, dual-head DVI-I KVM switch designed for mission-critical environments that demand strict data isolation and reliable multi-system control. Supporting up to eight computers, this secure KVM enables seamless switching between systems while maintaining full separation of data paths to prevent unauthorized transfer between networks.
Built to meet stringent security standards, the SA-DVN-8D-P features Common Criteria validation aligned with NIAP Protection Profile requirements, making it ideal for government, military, and enterprise applications. Dual-head video support allows operators to manage multi-display workstations efficiently, while integrated audio and CAC (Common Access Card) support enhance usability without compromising security.
With support for high-resolution video, automatic input equalization, and robust USB emulation for keyboard and mouse, this KVM ensures consistent performance and a smooth user experience. Its rugged design and dependable operation make it a trusted solution for secure command centers, financial institutions, and classified environments.
| Feature | Specification |
|---|---|
| Number of Ports | 8-Port Secure KVM |
| Video Support | Dual-Head DVI-I |
| Max Resolution | Up to 2560 x 1600 @ 60Hz; 3840 x 2160 @ 30Hz |

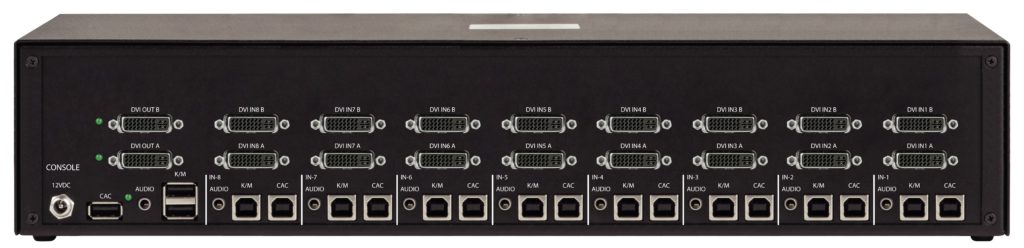

| Host Interfaces | 16 × DVI-I (29-pin Female) |
| Console Interfaces | 2 × DVI-I (29-pin Female) |
| USB Support | USB 1.1/1.0 (Keyboard & Mouse), USB 2.0 (CAC) |
| USB Connectors | 16 × USB Type B (Host) |
| Console USB Ports | 2 × USB Type A (Keyboard/Mouse), 1 × USB Type A (CAC) |
| Audio Input | 8 × 3.5 mm Stereo |
| Audio Output | 1 × 3.5 mm Stereo |
| CAC Support | Yes (Common Access Card Reader) |
| Security Certification | Common Criteria NIAP Protection Profile PSS Ver. 4.0 |
| Input Equalization | Automatic |
| Cable Length (Input/Output) | Up to 20 ft |
| Emulation | Keyboard, Mouse, Video |
| User Controls | Front Panel Buttons |
| Power Supply | 12V DC, 3A Adapter (Center-Positive) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Storage Temperature | -4° to 140°F (-20° to 60°C) |
| Humidity | 0–80% RH, Non-Condensing |
| Form Factor | Desktop / Rackmount Compatible |
