Description

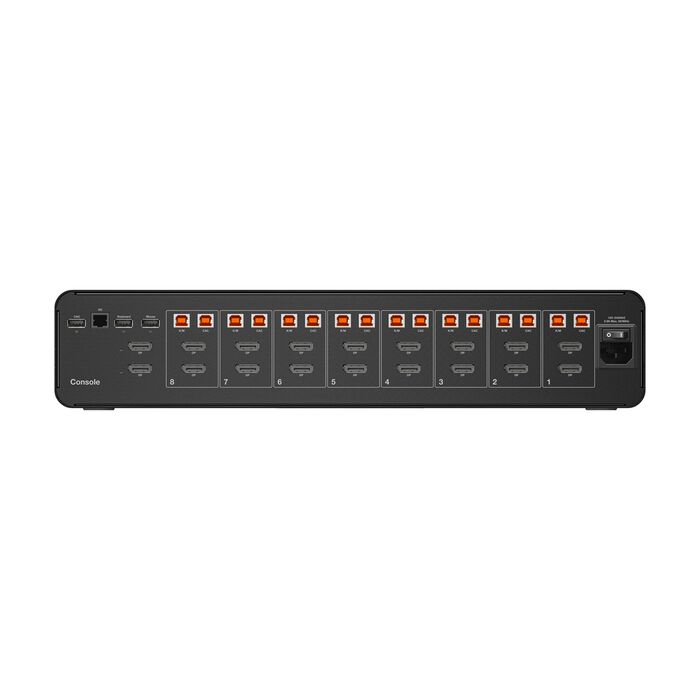

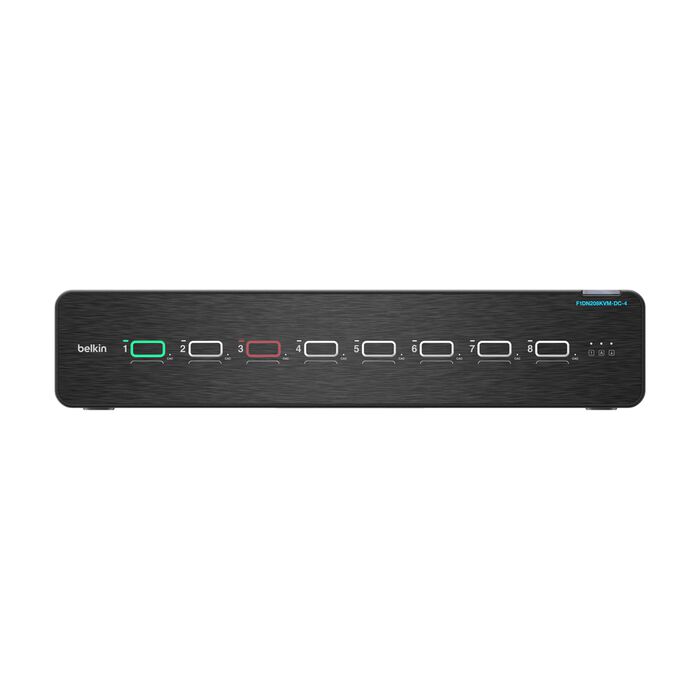

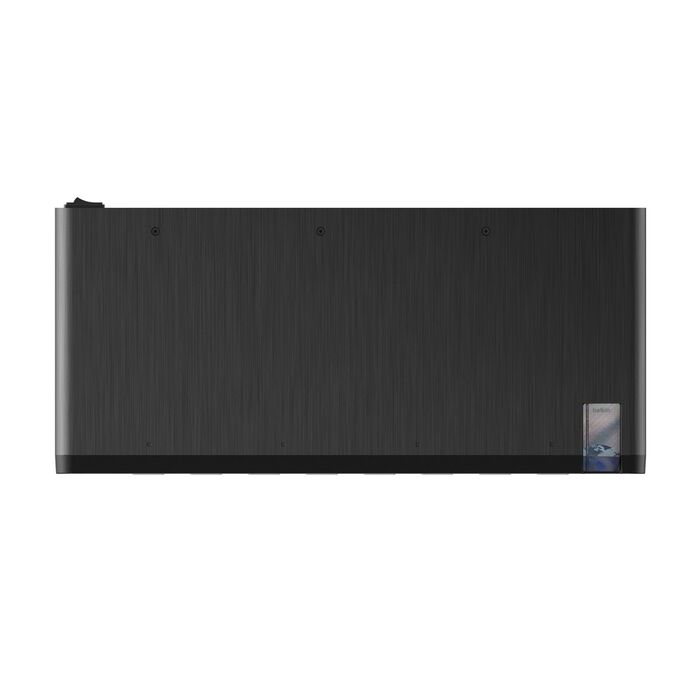

The Belkin Universal DisplayPort Secure KVM Switch (F1DN208KVM-DC-4) is engineered for high-security environments that demand uncompromising system isolation and operational efficiency. Designed to support up to eight computers with dual-head display output, this secure KVM enables seamless switching between multiple classified and unclassified networks while maintaining strict data separation.
Built to meet NIAP Protection Profile PSD 4.0 requirements, this solution incorporates advanced cybersecurity features such as optical data diodes for unidirectional data flow and an always-on active anti-tamper system that safeguards against physical intrusion. Dedicated Common Access Card (CAC) ports allow a single authentication device to be securely shared across all connected systems, while CAC freeze functionality ensures uninterrupted authentication on a selected channel.
With support for UHD 4K resolution at 60Hz, customizable port identification, and compatibility with remote control accessories, this KVM switch enhances both user awareness and workflow efficiency. Ideal for government, defense, finance, and other mission-critical applications, it delivers reliable, secure, and high-performance desktop control across multiple systems.
| Specification | Details |
|---|---|
| Product Type | Secure KVM Switch |
| Number of Ports | 8-Port |
| Display Support | Dual Head (2 Displays) |
| Video Interface | DisplayPort |
| Maximum Resolution | Up to 3840 x 2160 @ 60Hz |
| CAC Support | Yes (Dedicated CAC ports with CAC freeze) |
| Security Compliance | NIAP Protection Profile PSD 4.0 |
| Data Protection | Optical data diodes for unidirectional data flow |
| Anti-Tamper Protection | Always-on, battery-backed active anti-tamper system |
| Number of Connected Systems | Up to 8 computers |
| Console Ports | USB keyboard and mouse, DisplayPort video |
| Computer Interfaces | USB Type-B (keyboard/mouse), DisplayPort |
| Audio Support | Digital audio via DisplayPort |
| Remote Control Compatibility | Supported (optional accessory) |
| Port Identification | Customizable port colors and naming |
| Power Requirements | 12V DC, 4.0A |
| AC Input | 100–240VAC |
| Power Type | Internal power with mains connector |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 60°C |
| Humidity | 0–80% non-condensing |
| Enclosure | Formed steel |
| Warranty | 5-Year Limited Warranty |
| Compliance | FCC, CE, UL, ICES, RCM, RoHS, UKCA |
