Description

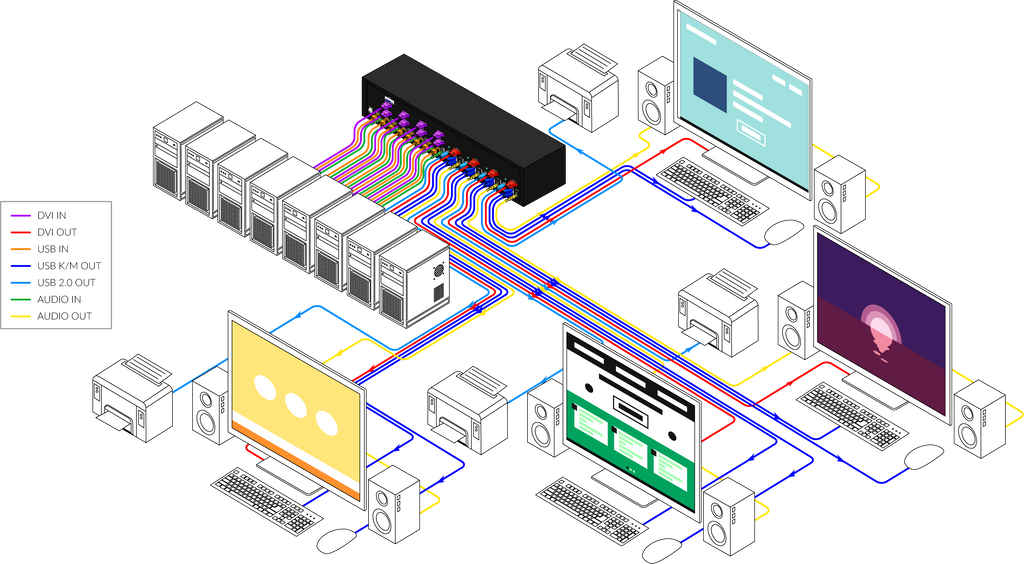

The SmartAVI SM-DVN-84X is a high-performance 8-port DVI-D matrix KVM switch designed to deliver centralized, multi-user control across complex computing environments. Supporting up to four simultaneous users, this solution enables seamless access and management of up to eight computers using independent keyboard, monitor, and mouse setups.
Built for mission-critical operations, the SM-DVN-84X ensures reliable, high-resolution video performance with zero pixel loss, while enabling flexible switching between systems. Its advanced USB 2.0 sharing capability allows users to connect and control peripheral devices such as printers, scanners, and storage drives without direct access to individual machines.
Engineered for efficiency and scalability, this matrix KVM switch supports asynchronous switching, allowing users to independently manage video, USB, and audio sources. With multiple control options including front panel buttons, hotkeys, and RS-232, the SM-DVN-84X integrates seamlessly into professional AV, IT, and control room environments.
| Specification | Details |
|---|---|
| KVM Type | Matrix KVM Switch (Multi-User) |
| Number of Ports | 8 Computer Inputs |
| Number of Users | Up to 4 Simultaneous Users |
| Video Interface | DVI-D Dual-Link and Single-Link |
| HDMI Compatibility | Supported via active adapters or cables |
| Maximum Resolution | Up to 2560 x 1600 @ 60Hz |
| Video Performance | Zero pixel loss with TMDS signal correction |
| USB Support | USB 2.0, 1.1, and 1.0 with internal hub |
| Peripheral Sharing | Supports printers, scanners, webcams, storage devices |
| Audio Support | Stereo audio input and output (3.5 mm) |
| Switching Modes | Independent (asynchronous) switching for KVM, USB, and audio |

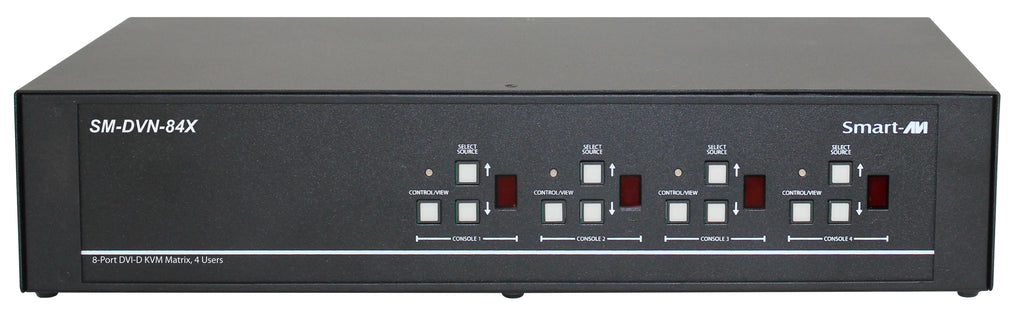

| Control Methods | Front panel buttons, hotkeys, RS-232 |
| RS-232 Control | Yes, for remote integration |
| Operating System Compatibility | Windows, Mac, Linux, Unix, DOS, Sun |
| Rack Mount | Compatible with standard 19-inch rack |
| Power Supply | External 100–240 VAC to 12VDC |
| Dimensions | 17.0” W x 2.7” H x 8.69” D |
| Weight | 6.9 lbs |
| Operating Temperature | 0 to 40°C (32 to 104°F) |
| Storage Temperature | -20 to 60°C (-4 to 140°F) |
| Compliance | UL, CE, RoHS |
