Description

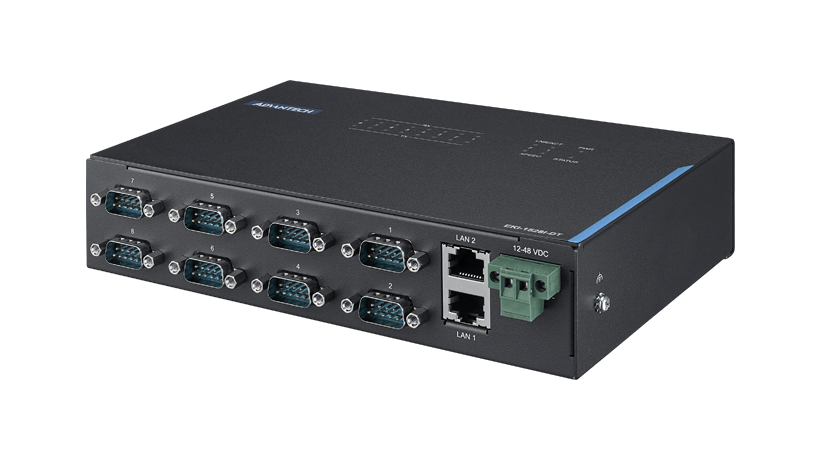

The Advantech EKI-1528-CE is an industrial-grade 8-port serial device server designed to connect legacy RS-232/422/485 equipment—such as PLCs, CNC machines, scales, and scanners—directly to modern TCP/IP Ethernet networks. With dual 10/100/1000 Mbps Ethernet ports, it provides LAN redundancy for reliable industrial communications.
This device supports multiple operation modes including Virtual COM port redirection, TCP/UDP server and client modes, and peer-to-peer pairing. Built-in 15 kV ESD protection and SNMP network management support make the EKI-1528-CE a dependable solution for automation and remote device monitoring in harsh environments.

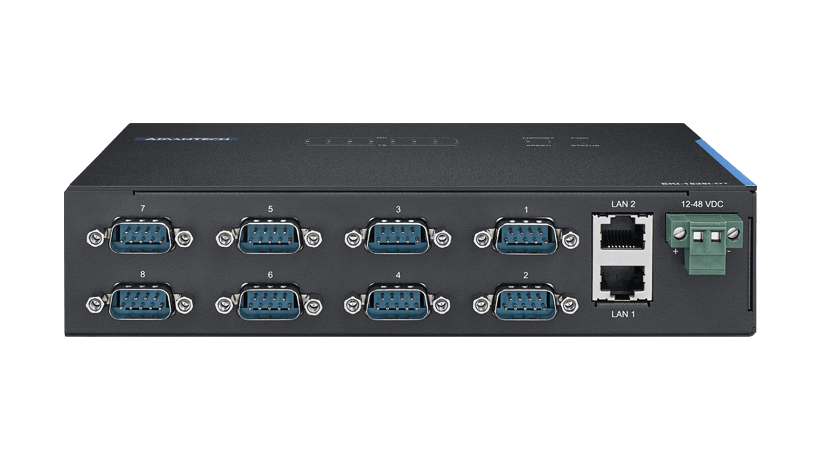

Its 1U rackmount form factor and rear wiring design simplify installation in industrial control cabinets and network racks.
| Specification | Details |
|---|---|
| Brand | Advantech |
| Model | EKI-1528-CE |
| Product Type | Industrial Serial Device Server |
| Serial Ports | 8 × RS-232/422/485 (software selectable) |
| Ethernet Ports | 2 × Gigabit Ethernet (10/100/1000 Mbps) |
| Network Redundancy | Dual LAN with independent MAC addresses |
| Supported Baud Rate | 50 bps to 921.6 kbps |
| Operation Modes | Virtual COM, TCP/UDP Server, TCP/UDP Client, Pair Connection, RFC2217 |
| Configuration Methods | Windows Utility, Web Browser, Telnet, Serial Console |
| Protection | 15 kV ESD for all serial signals |
| Network Management | SNMP MIB-II Support |
| Mounting | Standard 1U Rackmount |
| Dimensions (W × H × D) | 438 × 43.6 × 259.2 mm |
| Power Input | 100–240 VAC, 50–60 Hz |
| Power Consumption | 5.6 W |
| Operating Temperature | -10°C to 60°C |
| Compliance | CE, FCC Class A, RoHS |
