Description

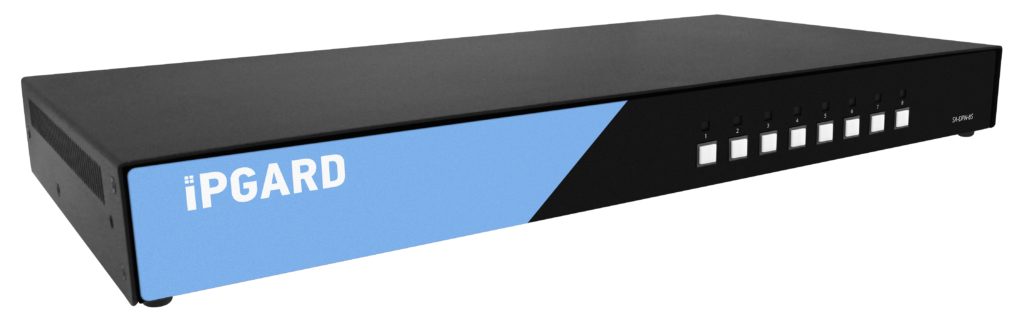

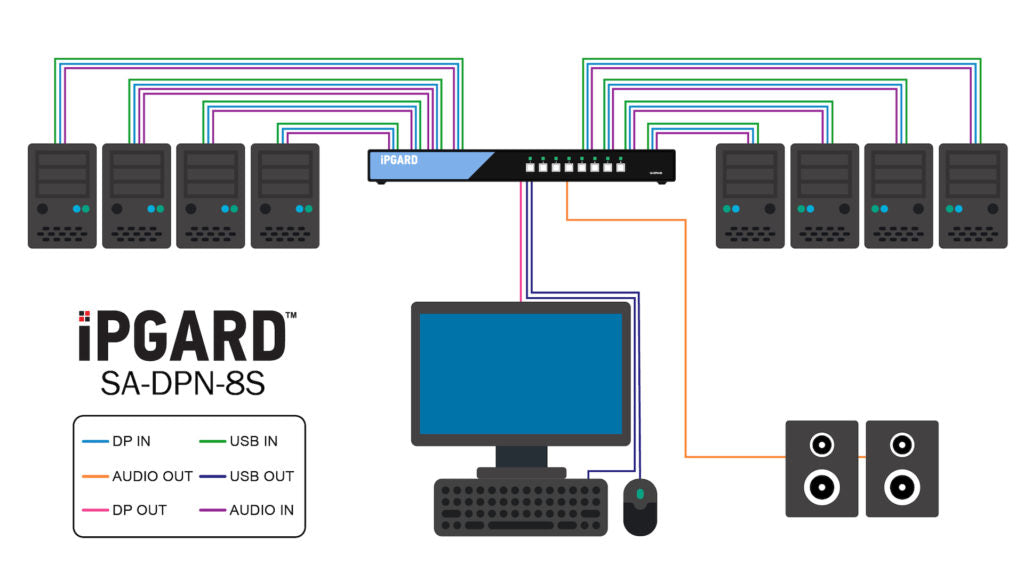

The iPGARD SA-DPN-8S is an advanced 8-port secure DisplayPort KVM switch engineered for high-security environments that require strict data isolation and reliable system control. Designed for mission-critical operations, this single-head KVM enables seamless switching between up to eight computers using a single keyboard, monitor, and mouse setup while maintaining strict compliance with security standards.
Supporting ultra-high-definition video up to 4K at 60Hz, the SA-DPN-8S ensures crystal-clear visual performance for demanding applications. Integrated audio switching enhances operational efficiency by allowing synchronized control of audio alongside video and USB peripherals. Built with secure architecture and Common Criteria validation, this KVM switch is ideal for government, military, financial, and other regulated industries.
With automatic input equalization, EDID learning, and robust peripheral emulation, the SA-DPN-8S delivers stable and consistent performance across all connected systems. Its intuitive front-panel controls and durable design make it a dependable solution for secure multi-system management.
| Category | Specification |
|---|---|
| Product Type | Secure 8-Port DisplayPort KVM Switch |

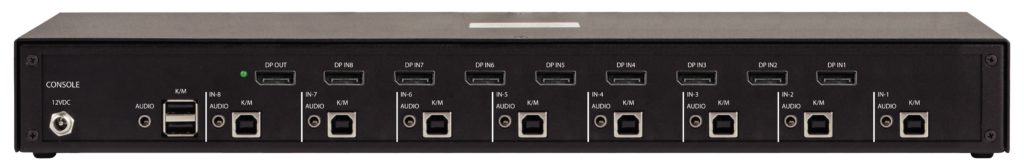

| Video Interface | 8 x DisplayPort Inputs, 1 x DisplayPort Output |
| Maximum Resolution | Up to 3840 x 2160 @ 60Hz |
| USB Support | USB 1.1 and 1.0 for keyboard and mouse |
| USB Ports | 8 x USB Type-B (host), 2 x USB Type-A (console) |
| Audio Support | 8 x 3.5mm stereo input, 1 x 3.5mm stereo output |

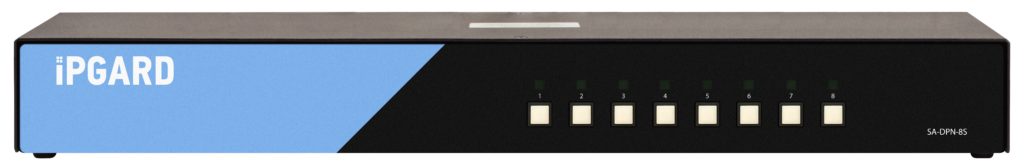

| Switching Method | Front-panel push buttons |
| Security Compliance | Common Criteria NIAP Protection Profile PSS Ver. 4.0 |
| Peripheral Emulation | Keyboard, mouse, and video emulation for secure switching |
| Input Equalization | Automatic |
| Cable Length Support | Up to 20 ft (input and output) |
| Power Supply | 12V DC power adapter (center-positive) |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | -4°F to 140°F (-20°C to 60°C) |
| Humidity | 0–80% RH, non-condensing |
| Control Interface | Front panel buttons |
| Form Factor | Desktop / Rackmount compatible |
| Included Accessories | Power adapter, quick start guide |
