Description

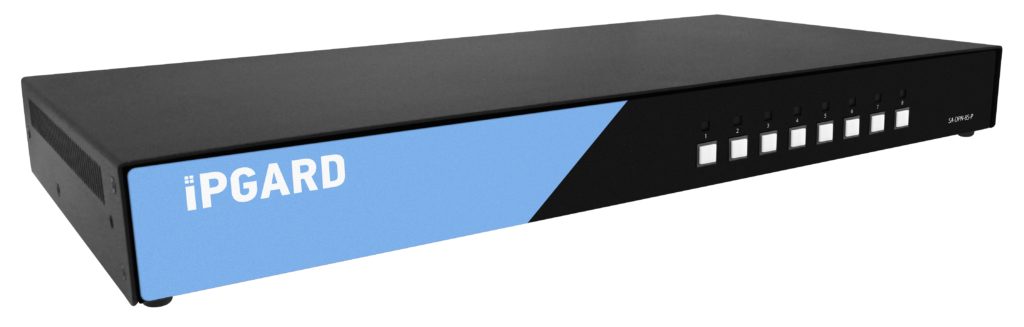

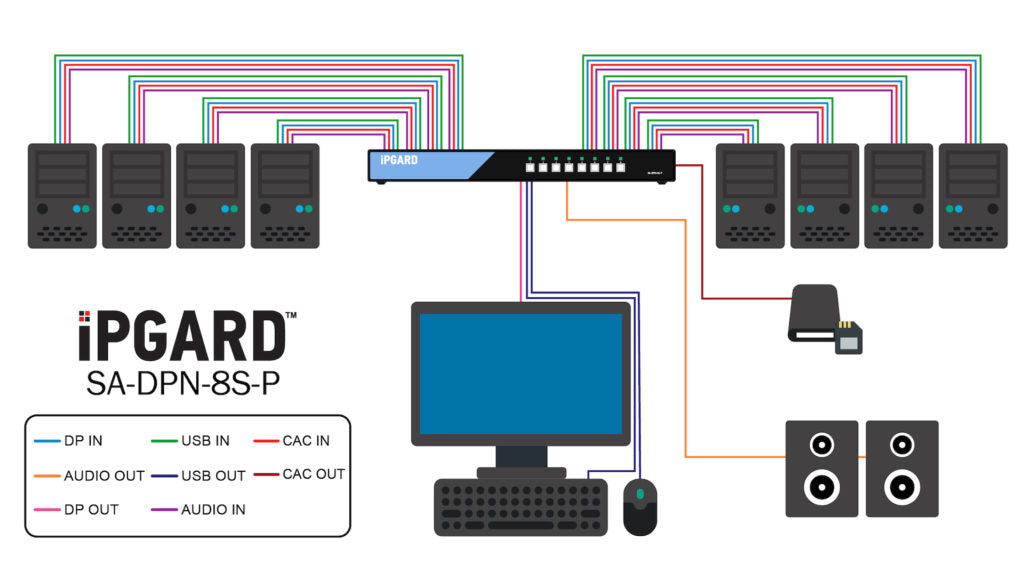

The iPGARD SA-DPN-8S-P is a high-assurance 8-port secure DisplayPort KVM switch designed for mission-critical environments where data isolation and system integrity are non-negotiable. Engineered to meet stringent security standards, this single-head KVM enables operators to control up to eight computers from a single console without risk of data leakage between connected systems.
Supporting ultra-high-definition resolutions up to 3840 x 2160 at 60Hz, the SA-DPN-8S-P delivers crystal-clear video performance while maintaining strict signal isolation. Dedicated peripheral emulation ensures seamless keyboard and mouse operation, while integrated audio switching and CAC (Common Access Card) support provide enhanced usability for secure authentication workflows.
Built for government, defense, healthcare, and enterprise environments, this secure KVM switch combines reliability, compliance, and performance in a compact, user-friendly design. With front-panel switching controls and automatic EDID learning, it simplifies deployment while maintaining uncompromising security.
| Specification | Details |
|---|---|
| Product Type | Secure 8-Port Single-Head DisplayPort KVM Switch |

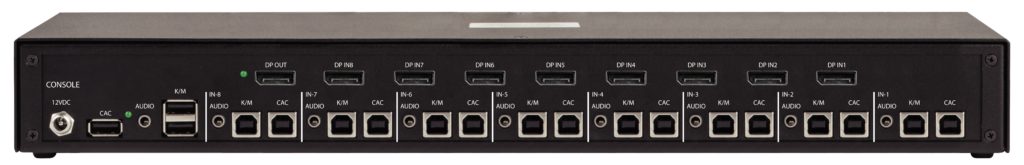

| Video Interface | (8) DisplayPort Inputs, (1) DisplayPort Output |
| Maximum Resolution | Up to 3840 x 2160 @ 60Hz |
| Video Signal Support | DisplayPort with automatic input equalization |
| USB Support | USB 1.1/1.0 for keyboard and mouse, USB 2.0 for CAC |
| USB Ports | (16) USB Type-B (computers), (2) USB Type-A for keyboard/mouse, (1) USB Type-A for CAC |
| Audio Support | Stereo 3.5mm input (8), stereo 3.5mm output (1) |
| CAC Support | Dedicated CAC port for secure smart card authentication |
| Peripheral Isolation | Full hardware-based isolation between connected systems |
| Emulation | Keyboard, mouse, and video emulation for seamless switching |

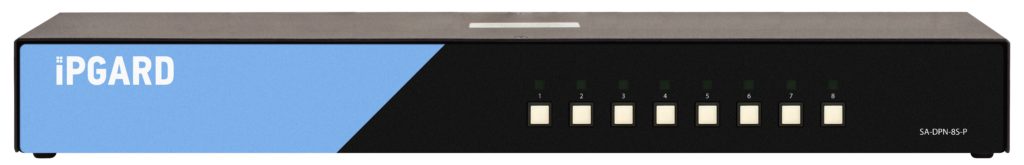

| Switching Method | Front-panel push-button controls |
| Input Cable Length | Up to 20 ft |
| Output Cable Length | Up to 20 ft |
| Power Requirements | 12V DC power adapter, center-positive polarity |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | -4°F to 140°F (-20°C to 60°C) |
| Humidity | 0–80% non-condensing |
| Security Certification | Common Criteria validated, NIAP Protection Profile PSS Ver. 4.0 |
| Form Factor | Rackmount / desktop-ready secure KVM appliance |
| Included Accessories | Power adapter and quick start guide |
