Description

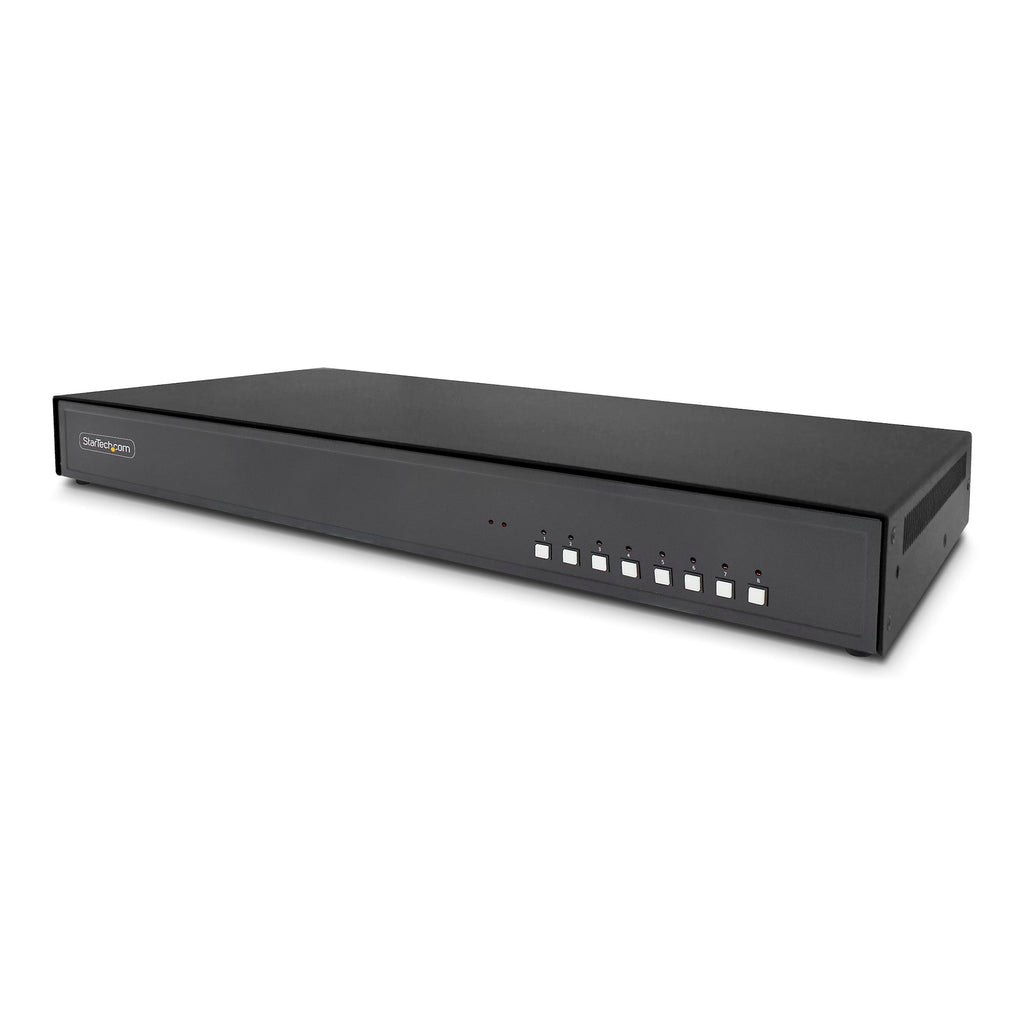

The StarTech.com CK4-P108C Secure Pro KVM Switch is engineered for high-security environments that require strict data isolation and reliable multi-system control. Designed to meet NIAP PP 4.0 compliance standards, this 8-port DisplayPort KVM enables operators to manage multiple secure computers from a single console without risk of data leakage.
Supporting resolutions up to 4K at 60Hz, the CK4-P108C delivers crisp, high-performance video output while maintaining strict channel separation. Integrated audio switching and a dedicated CAC (Common Access Card) port provide secure peripheral management for mission-critical workflows. USB emulation ensures seamless keyboard and mouse switching without compromising system integrity.
With automatic EDID learning, robust build quality, and support for enterprise-grade deployments, this KVM switch is ideal for government, defense, healthcare, and other security-sensitive applications requiring dependable and compliant system control.
| Specification | Details |
|---|---|
| Video Format | DisplayPort |
| Maximum Resolution | Up to 4K (3840 Ă— 2160 @ 60Hz) |
| Max Pixel Clock | 248 MHz |

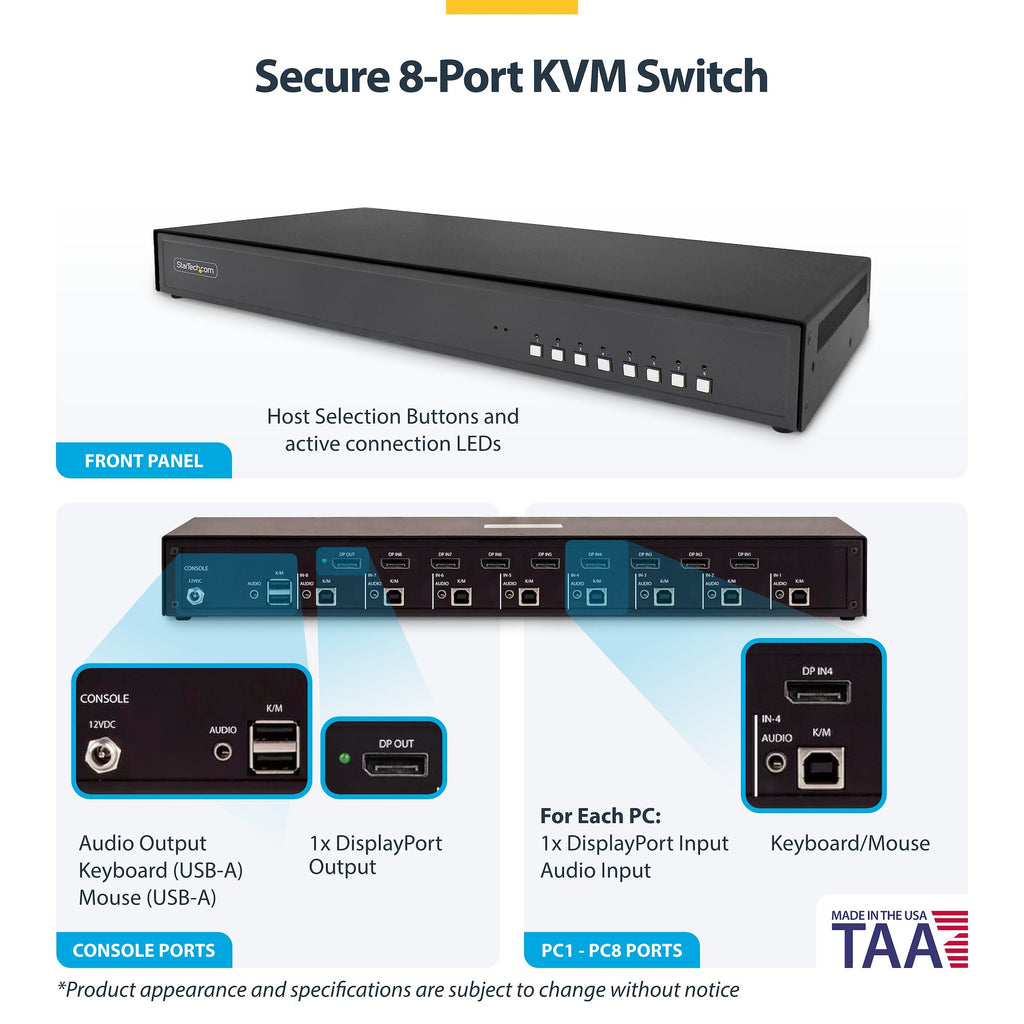

| Video Input Ports | 8 Ă— DisplayPort (20-pin) |
| Video Output Ports | 1 Ă— DisplayPort (20-pin) |
| Data Rate | 1.65 Gbps |
| Input Equalization | Automatic |
| Max Cable Length (Input/Output) | Up to 20 ft |
| USB Input Ports | 16 Ă— USB Type-B |
| USB Output Ports | 2 Ă— USB Type-A (keyboard/mouse) |
| USB Emulation | USB 1.1 and USB 2.0 compatible |
| CAC Port | Configurable USB 2.0 port |
| Audio Input | 8 Ă— 3.5mm stereo |
| Audio Output | 1 Ă— 3.5mm stereo |
| Control Interface | Front panel selection buttons |
| Security Compliance | NIAP PP 4.0 |
| Certifications | UL, CE, RoHS compliant |
| Power Supply | External 100–240VAC / 12VDC, 3A |
| Power Consumption | 36W |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 60°C |
| Humidity | Up to 80% non-condensing |
| Dimensions | 17.0” W × 1.76” H × 8.69” D |
| Weight | 6.3 lbs |
