Description

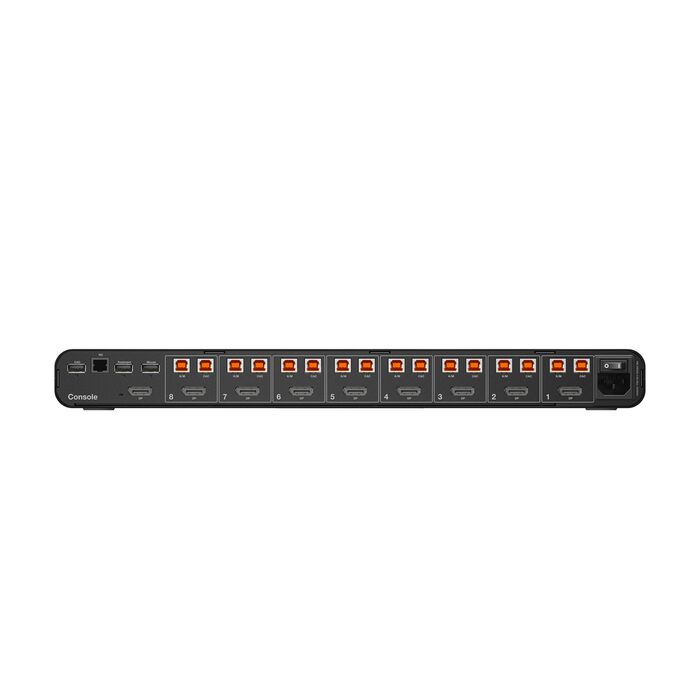

The Belkin Universal DisplayPort Secure KVM Switch 8-Port Single Head with CAC is engineered for mission-critical environments that demand uncompromising security and operational efficiency. Designed to meet NIAP Protection Profile PSD 4.0 standards, this enterprise-grade SKVM enables secure switching between up to eight systems while maintaining strict data isolation.
Built with optical data diodes, the switch enforces unidirectional data flow, preventing unauthorized data leakage across connected systems. Integrated Common Access Card (CAC) support allows centralized authentication using a single reader, while CAC freeze functionality enables operators to lock authentication to a specific channel without interrupting workflow.
This model supports high-resolution DisplayPort video up to 4K at 60Hz, ensuring clarity for data-intensive applications. With customizable port illumination and naming, operators gain enhanced situational awareness, reducing switching errors in high-security environments. The rugged, tamper-proof design includes an always-on active anti-tamper mechanism, delivering peace of mind for government, defense, and regulated enterprise deployments.
| Specification | Details |
|---|---|
| Number of Computers Supported | Supports up to 8 connected systems |
| Display Support | Single head DisplayPort output |
| Video Resolution | Up to 3840 x 2160 (4K UHD) at 60Hz |
| CAC Support | Dedicated CAC port with shared reader capability |
| CAC Freeze Functionality | Allows locking CAC authentication to a selected channel |
| Data Isolation Technology | Optical data diodes ensuring unidirectional data flow |
| Security Compliance | NIAP Protection Profile PSD 4.0 compliant |
| Peripheral Ports | USB keyboard and mouse ports with secure filtering |
| Audio Support | Digital audio via DisplayPort (monitor dependent) |
| Remote Control Compatibility | Supports optional remote control with integrated keyboard |
| Port Identification | Customizable port coloring and naming for error reduction |
| Tamper Protection | Always-on active anti-tamper mechanism with battery backup |
| Build Design | Durable steel enclosure for secure environments |
| Power Requirements | 12V DC power input |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Humidity Range | 0% to 80% non-condensing |
| Compliance Standards | FCC, CE, UL, RoHS, UKCA |
| Deployment Use Cases | Government, military, finance, healthcare, secure enterprise environments |
| Warranty | 5-year manufacturer warranty |
