Description

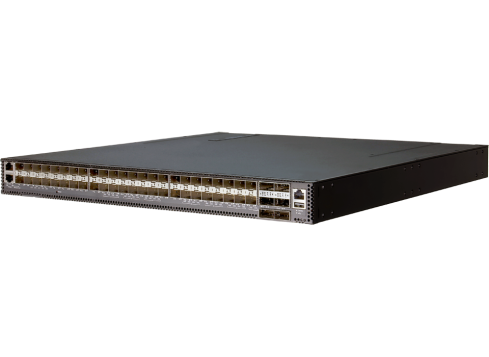

The Edgecore AS5835-54X is a high-performance, open network data center switch designed to meet the demanding scalability and reliability needs of modern enterprise and cloud environments. Powered by the Broadcom BCM56771 Trident 3 switch silicon and an Intel® Atom® C3558 4-core 2.2GHz processor, the AS5835-54X delivers up to 1.08 Tbps switching capacity and 964.28 Mpps forwarding rate.

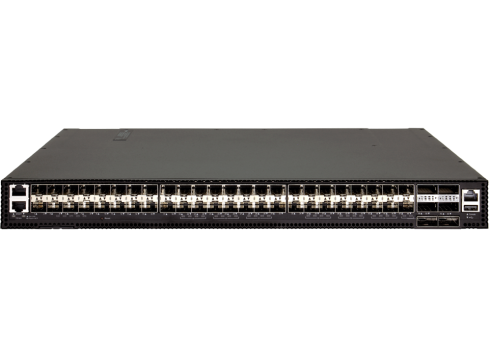

Equipped with 48× 10G SFP+ ports and 6× 100G QSFP28 uplinks, this flexible platform supports 1/10/25/100 GbE configurations, allowing deployment as a top-of-rack switch or as part of a non-blocking 40/100 GbE spine architecture. The switch supports VXLAN and NVGRE tunneling in hardware, making it ideal for virtualized data centers.

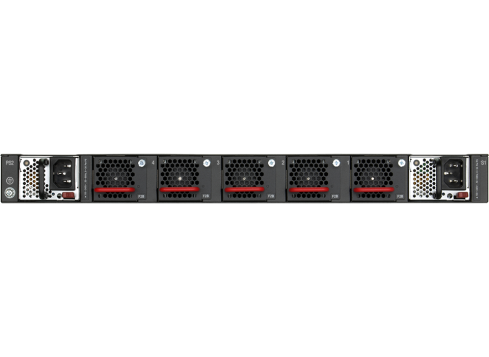

Featuring hot-swappable dual AC power supplies and 4+1 redundant fan modules, the AS5835-54X ensures continuous availability and simplified maintenance. Pre-loaded with the Open Network Install Environment (ONIE), it allows users to install a preferred open-source or commercial Network Operating System (NOS) with ease.
| Feature | Specification |
|---|---|
| Model | AS5835-54X |
| SKU / Part Number | 5835-54X-O-AC-F |
| Switch Silicon | Broadcom BCM56771 Trident 3 |
| CPU | Intel® Atom® C3558 4-Core 2.2 GHz |
| Memory | 16 GB DDR4 (8 GB × 2 SO-DIMM) |
| Storage | 64 GB M.2 MLC |
| Ports | 48 × 10G SFP+ (1/10 GbE) ports6 × 100G QSFP28 (100 GbE or 4 × 25 GbE breakout) |
| Management Ports | 1 × RJ-45 Console Port 1 × RJ-45 100/1000BASE-T Mgmt Port 1 × USB Type A Storage Port |
| Switching Capacity | 1.08 Tbps (full duplex) |
| Forwarding Rate | 964.28 Mpps |
| Packet Buffer | 32 MB Integrated |
| Jumbo Frames | Up to 9K Bytes |
| MAC Address Entries | 32 K (min) / 288 K (max) (depending on NOS) |
| VLAN IDs | Up to 4 K |
| ECMP Groups | Up to 4 K |
| IPv4/IPv6 Routes | IPv4: 16 K – 168 K host entries / 32 K LPM entries IPv6: 8 K – 100 K host entries |
| Airflow | Front-to-Back |
| Power Supply Units | Dual AC, Hot-Swappable, Load-Sharing |
| Power Consumption | Maximum 356 W |
| Fan Modules | 4 + 1 Redundant, Hot-Swappable |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Storage Temperature | −40 °C to 70 °C (−40 °F to 158 °F) |
| Operating Humidity | 5 % – 95 % (non-condensing) |
| Dimensions (W × D × H) | 44.25 × 47.33 × 4.395 cm (17.42 × 18.63 × 1.73 in) |
| Weight | 8.815 kg (19.43 lb) with 2 PSUs |
| Certifications | CE, FCC Class A, VCCI Class A, EN55032, EN62368, RoHS 2.0, NEBS GR-63 Pre-Test |
| Warranty | 3-Year Hardware Warranty (Upgradeable to 5 Years) |
