Description

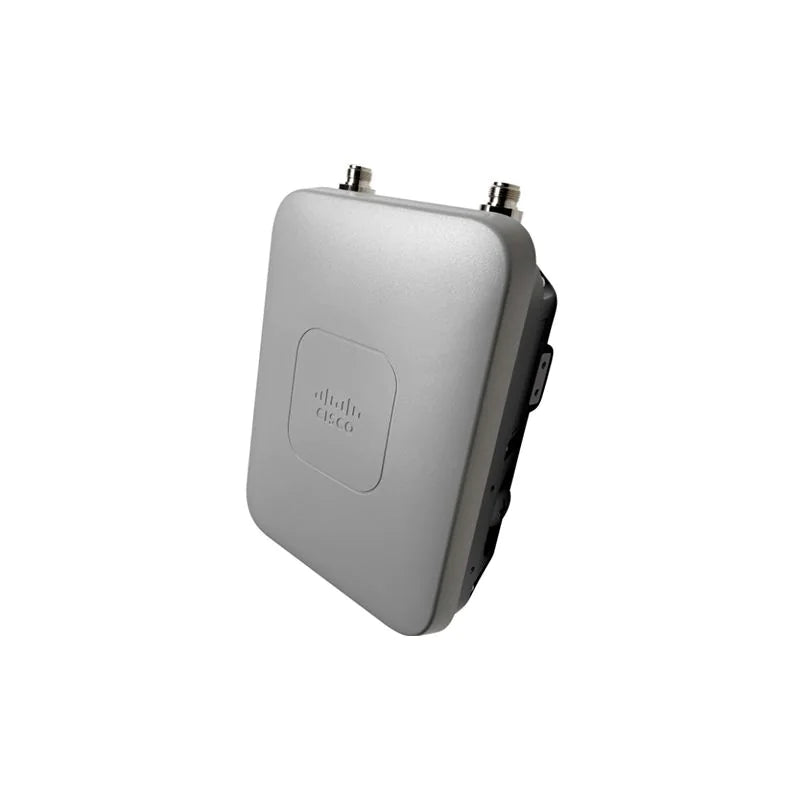

The Cisco Aironet AIR-CAP1532E-B-K9 is a rugged, carrier-grade outdoor wireless access point designed for reliable Wi-Fi connectivity in harsh environments. Part of the Cisco Aironet 1530 Series, this model features external antenna support and a compact, low-profile enclosure that enables flexible deployment on poles, walls, and building facades.
Built for outdoor enterprise and service-provider applications, the 1532E delivers dual-band 2.4 GHz and 5 GHz 802.11n performance with MIMO technology, supporting high-throughput wireless access, mesh networking, and point-to-point or point-to-multipoint bridging. Its IP67-rated enclosure withstands extreme temperatures, wind, moisture, and dust, making it well-suited for campuses, industrial sites, transportation hubs, and smart city deployments.
The AIR-CAP1532E-B-K9 supports controller-based or autonomous operation and can be powered via Power over Ethernet (PoE) or DC input, simplifying installation while ensuring operational flexibility in outdoor and remote locations.
| Specification | Details |
|---|---|
| Brand | Cisco |
| Series | Aironet 1530 Series |
| Model | AIR-CAP1532E-B-K9 |
| Device Type | Outdoor Wireless Access Point |
| Wireless Standard | 802.11a/b/g/n |
| Frequency Bands | 2.4 GHz and 5 GHz |
| MIMO Configuration | 2x2 MIMO (2 spatial streams per band) |
| Maximum Data Rate | Up to 300 Mbps |
| Antenna Type | External antennas (sold separately) |
| Ethernet Interfaces | 2 × 10/100/1000 Gigabit Ethernet (WAN/LAN) |
| Management Options | Controller-based or standalone operation |
| Deployment Modes | Access point, mesh, bridge, workgroup bridge |
| Power Options | PoE (802.3at / Cisco UPoE) or DC input |
| Power Consumption | Less than 25 W |
| Enclosure Rating | IP67 outdoor-rated |
| Operating Temperature | -30°C to +65°C |
| Mounting Options | Wall or pole mount |
| Form Factor | Compact outdoor enclosure |
| Regulatory Domain | B |
