Description

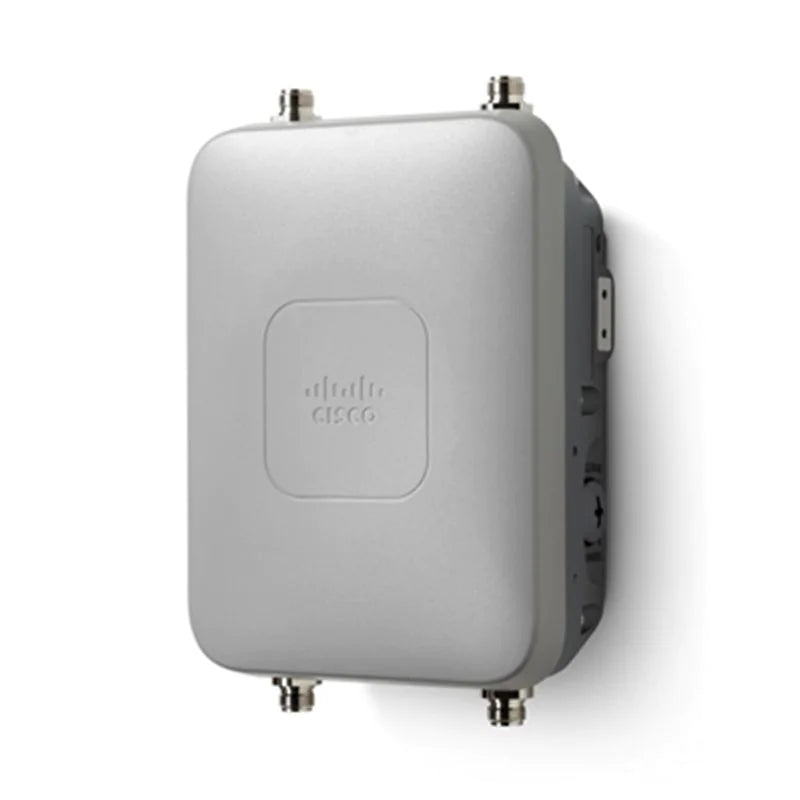

The Cisco Aironet 1532I Outdoor Access Point is a compact, carrier-grade wireless solution designed for reliable outdoor Wi-Fi coverage in harsh environments. Built with an ultra-low-profile enclosure and integrated dual-band antennas, this access point delivers consistent 802.11n performance while maintaining a clean, unobtrusive installation on poles, walls, or building facades.
Supporting simultaneous 2.4 GHz and 5 GHz operation with MIMO technology, the Aironet 1532I provides extended range, improved throughput, and enhanced reliability for outdoor campuses, industrial sites, transportation hubs, and municipal deployments. Its IP67-rated enclosure protects against dust, water, extreme temperatures, and high winds, making it ideal for long-term outdoor use.
The AIR-CAP1532I-B-K9 model operates in the regulatory domain “B” and supports flexible deployment modes including controller-based access point, mesh networking, bridging, and workgroup bridge configurations. Power options include Power over Ethernet (PoE) or direct DC input, simplifying installation in locations with limited infrastructure.
| Specification | Details |
|---|---|
| Brand | Cisco |
| Series | Aironet 1530 Series |
| Model | AIR-CAP1532I-B-K9 |
| Device Type | Outdoor Wireless Access Point |
| Wireless Standards | IEEE 802.11a/b/g/n |
| Frequency Bands | 2.4 GHz and 5 GHz |
| MIMO Configuration | 3x3 MIMO (2.4 GHz), 2x3 MIMO (5 GHz) |
| Maximum Data Rate | Up to 300 Mbps |
| Antenna Type | Integrated dual-band omnidirectional |
| Antenna Gain | 3 dBi (2.4 GHz), 5 dBi (5 GHz) |
| Ethernet Ports | 2 × 10/100/1000 Gigabit Ethernet |
| Management | Controller-based or autonomous |
| Power Options | 802.3at PoE, Cisco UPoE, or 24–57 VDC |
| Power Consumption | Less than 30 W |
| Environmental Rating | IP67 |
| Operating Temperature | -30°C to +65°C (-22°F to 149°F) |
| Mounting Options | Wall, pole, tilt, or horizontal mounts |
| Dimensions | 9 × 7 × 4 in (23 × 17 × 10 cm) |
| Weight | Approximately 5 lb (2.3 kg) |
| Deployment Modes | Access point, mesh, bridge, workgroup bridge |
| Regulatory Domain | B |
