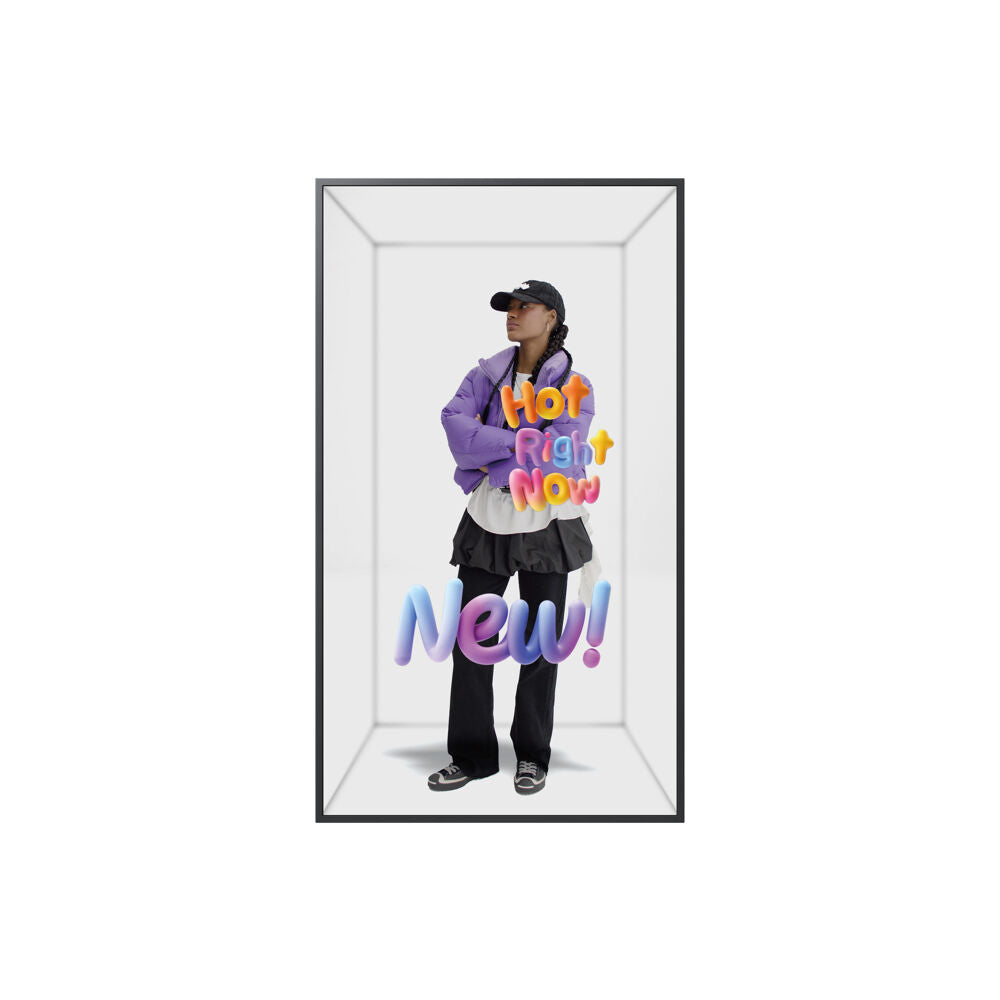

The Samsung SM85HX-P is an 85-inch commercial smart signage display built for large-format visual communication in corporate, education, retail, hospitality, and public-facing environments. With 4K UHD resolution, a wide 84.5-inch class panel, and professional display controls, it delivers sharp content presentation for digital signage, meeting spaces, video walls, and branded visual experiences.
Designed for flexible AV integration, this display supports HDMI, DisplayPort, LAN, RS232C, USB media playback, MagicInfo content management, screen mirroring, web browser access, and video wall configuration. Its commercial feature set makes it ideal for installations that need reliable operation, centralized control, scheduled content, and clean large-screen performance.
| Specification | Details |
|---|---|
| Brand | Samsung |
| Product Type | Commercial smart signage display |
| Display Size | 85 class, 84.5 inches viewable |
| Display Area | 1872.0 mm x 1053.0 mm |
| Resolution | 3840 x 2160 4K UHD |
| Optimum Resolution | 3840 x 2160 at 60 Hz via HDMI |
| Maximum Resolution | 3840 x 2160 at 60 Hz via DisplayPort |
| Connectivity | HDMI 1, HDMI 2, HDMI 3 with ARC, DisplayPort, RJ45 LAN, RS232C, USB, audio output, IR input |
| Network Control | Supports LAN-based control, internet connectivity, MDC, and MagicInfo server connection |
| Content Management | Supports MagicInfo playback, scheduling, templates, internal memory, USB content, and network channels |
| Video Wall Capability | Supports video wall configuration with horizontal and vertical layout control up to 15 x 15 |
| Media Playback | Supports video, image, PowerPoint, PDF, and Word file playback through compatible formats |
| Smart Features | Web browser, screen mirroring, workspace access, SmartView+, apps, custom home, and scheduled playback |
| Audio Features | Built-in speaker support with internal, external, and HDMI receiver audio output options |
| Control Features | Remote control, panel key, safety lock, button lock, source switching, on/off timer, ticker, and clone product settings |
| Mounting Compatibility | VESA 400 x 600 mm |
| Wall Mount Screw | M8 standard screw, 4 required |
| Power Supply | AC 100-240V, 50/60Hz |
| Operating Temperature | 32°F to 104°F, 0°C to 40°C |
| Operating Humidity | 10% to 80%, non-condensing |
| Storage Temperature | -4°F to 113°F, -20°C to 45°C |
| Storage Humidity | 5% to 95%, non-condensing |
| Recommended Use | Commercial signage, meeting rooms, retail displays, education spaces, hospitality areas, public information displays, and video wall installations |
