Description

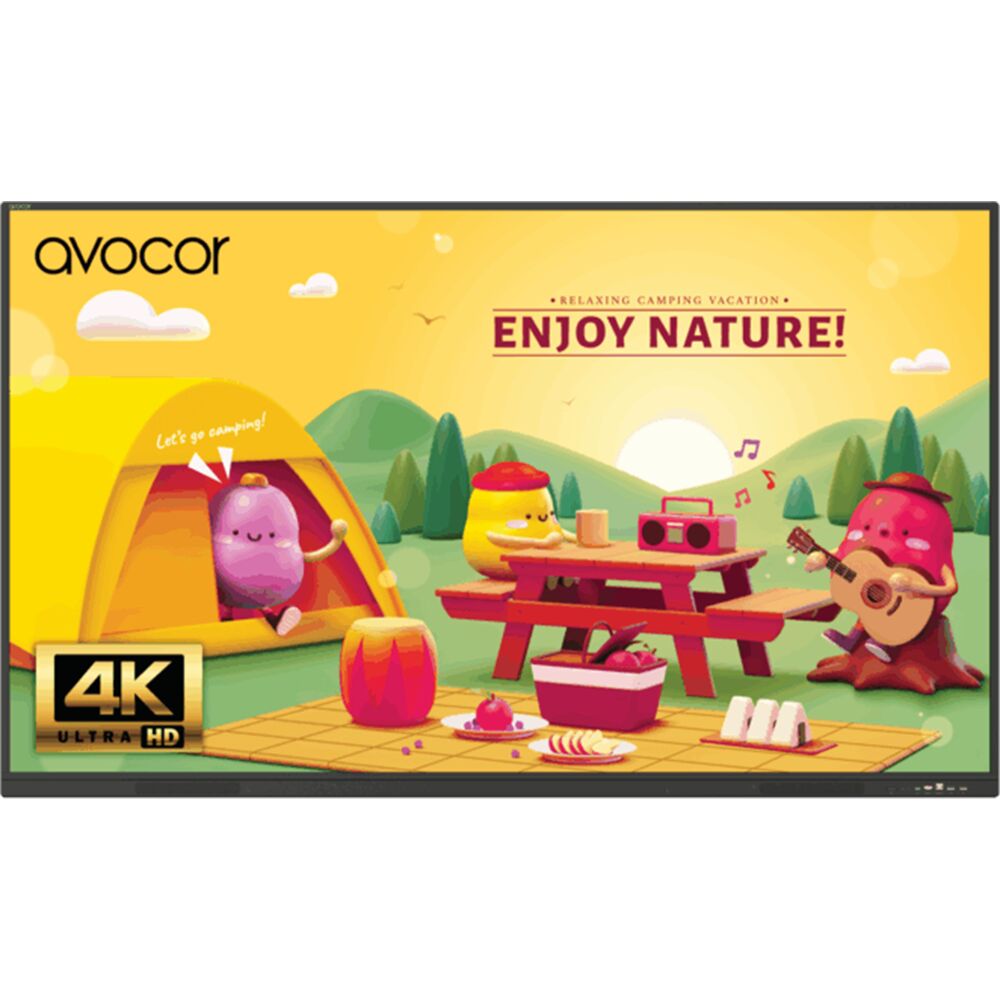

The Avocor AVS-8610E is the largest model in the S Series, purpose-built to transform classrooms, lecture halls, and hybrid learning environments. Featuring a stunning 86-inch 4K UHD resolution display with zero-bonded, anti-glare glass, it delivers crystal-clear visuals that ensure every student has a front-row experience.
Certified with Google EDLA and preloaded with the Google Play Store, the AVS-8610E provides direct access to essential educational apps such as Google Docs, Sheets, and Slides, along with Android teaching tools. The display’s 40-point multi-touch capability with passive stylus support allows for highly interactive lessons, while the built-in 16W stereo speakers ensure rich, immersive audio.
Powered by an Amlogic T982 chipset, 8GB RAM, and 64GB storage, this display runs Android 13 smoothly, supporting demanding classroom apps with ease. With multiple HDMI, USB, and Type-C inputs plus OPS slot support, it integrates effortlessly with existing teaching technologies. Backed by a 5-year warranty, the AVS-8610E is a future-ready solution for modern education.
| Category | Details |
|---|---|
| Display | 86" Direct-lit LED, 16:9 aspect ratio |
| Resolution | 3840 × 2160 (4K UHD) @ 60Hz |
| Brightness | 350 cd/m² with zero-bonded glass |
| Contrast Ratio | 5000:1 |
| Response Time | 6.5 ms |
| Viewing Angle | 178° / 178° |
| Color Support | 10-bit, 1.07 billion colors |
| Operation Time | 16 hrs/day, 7 days/week |
| Touch System | Up to 40 points touch + 1 stylus, 3.2mm anti-glare glass |
| Supported OS | Windows 8/10/11, MacOS*, Linux* |
| Processor | Amlogic T982, Quad-core A55 CPU, Mali G52 GPU |
| Memory & Storage | 8GB RAM / 64GB ROM |
| Operating System | Android 13 |
| Connectivity (Side) | 2× HDMI (4K@60Hz, HDCP 2.1, CEC, ARC), 1× HDMI out, VGA, 2× USB-A 3.0, 1× USB-B 2.0 |
| Connectivity (Front) | 1× USB-C (65W PD), 1× HDMI, 1× USB-B Touch, 2× USB-A 3.0 |
| Audio I/O | 3.5mm in/out, Optical SPDIF |
| Control | IR input, RS-232, 2× RJ-45 Ethernet |
| OPS Slot | Yes, 3840 × 2160 @ 60Hz |
| Wireless | WiFi supported via pluggable module |
| Speakers | 2 × 16W front-facing stereo |
| Dimensions (W × H × D) | 1957 × 1160 × 100 mm / 77.05 × 45.67 × 3.94 in |
| Net Weight | 58.5 kg / 128.97 lbs |
| Gross Weight | 72.7 kg / 160.28 lbs |
| Wall Mount (VESA) | 800 × 600 |
| Power | Max < 520W, AC 100–240V, 50/60Hz, Standby ≤0.5W |
| Environmental | Operating: 0–40°C, 10–90% RH; Storage: –20–60°C |
| In the Box | Remote, 2× passive stylus, wall mount, AC power cord, USB-B 3.0 cable, HDMI cable, Quick Start Guide |
| Warranty | 5 years (regional T&Cs apply) |
