Description

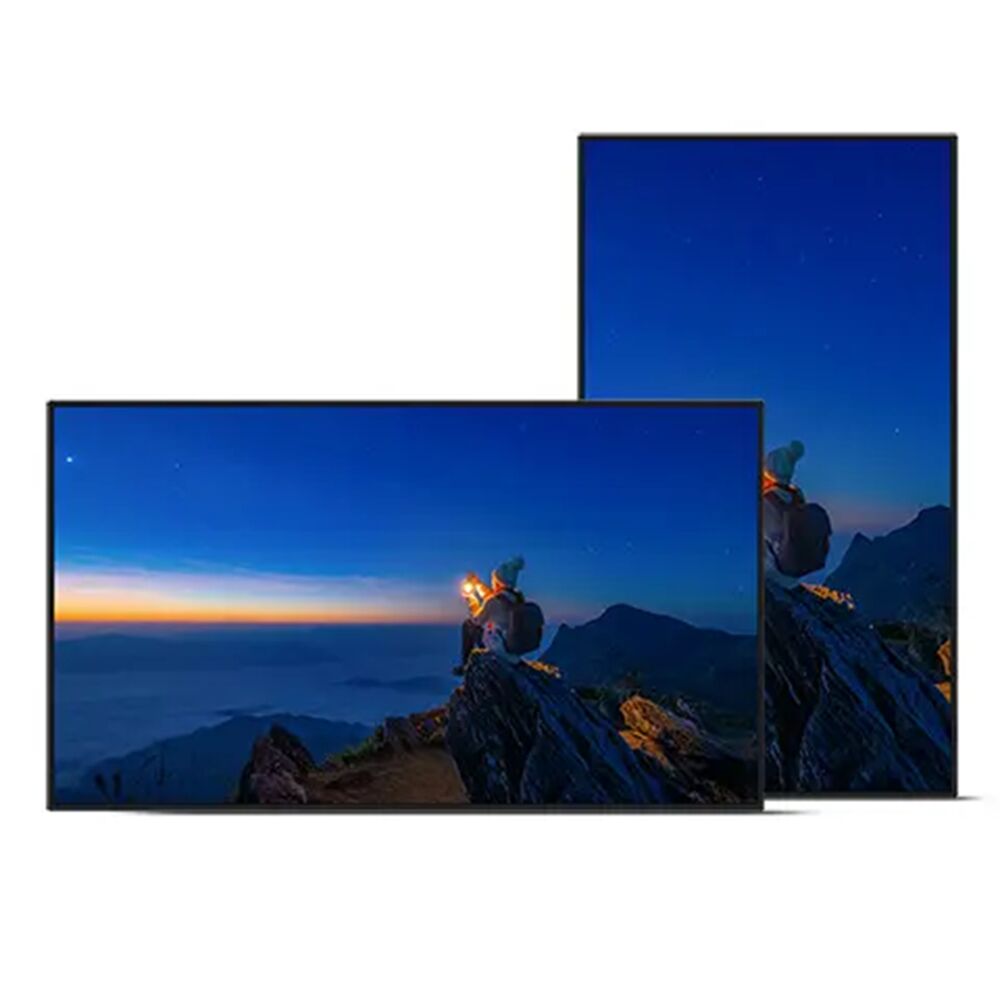

The Sharp MultiSync® PN-M862 is an 86-inch 4K UHD professional display engineered for mission-critical digital signage and enterprise environments. Designed with precision and durability, it delivers lifelike visuals with factory-calibrated color accuracy, 550 cd/m² brightness, and SpectraView™ Engine technology for consistent, reliable performance.
Built with a rugged all-metal chassis and active cooling, the PN-M862 ensures 24/7 reliability in demanding spaces such as retail, control rooms, healthcare, finance, and corporate settings. Connectivity is simplified with HDMI, DisplayPort, and USB-C (with 65W Power Delivery), plus modular integration options for Intel® SDM and Raspberry Pi CM4.
Smart features like daisy-chained DisplayPort/LAN, NaViSet Administrator 2™ remote management, and advanced input prioritization make the PN-M862 a future-ready solution for synchronized signage, video walls, and enterprise installations.
| Category | Specification |
|---|---|
| Model | Sharp MultiSync® PN-M862 |
| Screen Size | 85.6" (diagonal) |
| Panel Technology | IPS |
| Native Resolution | 3840 × 2160 (4K UHD) |
| Brightness (Typical) | 550 cd/m² |
| Contrast Ratio | 1200:1 |
| Viewing Angle | 178° H / 178° V |
| Aspect Ratio | 16:9 |
| Color Gamut | 72% NTSC |
| Displayable Colors | Over 1.07 billion (10-bit dithered) |
| Orientation | Landscape / Portrait |
| Haze Level | 25% Anti-Glare |
| Input Terminals | 2 × HDMI 2.0, 2 × DisplayPort 1.4, 1 × USB-C (DP-Alt mode, 65W PD) |
| Output Terminals | 1 × HDMI, 1 × DisplayPort (carries DP/DP-Alt via USB-C) |
| USB Ports | USB-A 2.0 (Service), USB-A 3.2 (Downstream), USB-C (Downstream) |
| External Control | LAN (100Mbit), RS-232C, IR Remote |
| Speakers | Integrated 10W × 2 |
| Power Consumption | 190W (Typical), 305W (Max Brightness), 525W (All Max) |
| Bezel Width | 15.9mm (L/R/T/B) |
| Dimensions (W × H × D) | 75.9" × 43.3" × 3.3" (1927.6 × 1099.1 × 83.2 mm) |
| Net Weight | 47.0 kg (103.6 lbs) |
| VESA Mount | 600 × 400 mm (M8) |
| Operating Conditions | Temp: 0–40°C, Humidity: 20–80%, Altitude ≤ 3000m |
| Warranty | 3 Years Advanced Replacement |
| Optional Accessories | SP-RM3a speakers, PN-ST801 stand, WMK-7598T wall mount, Human Sensor (PN-KTRC3), SDM option cards, Raspberry Pi CM4 module |
