Description

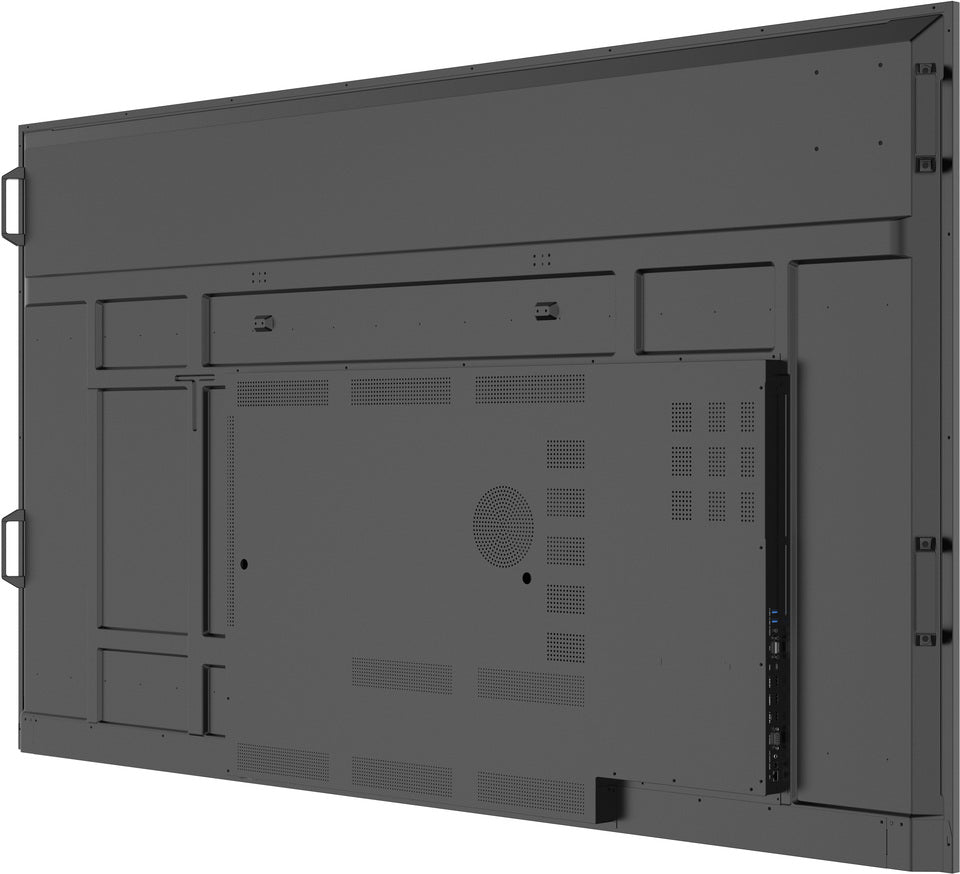

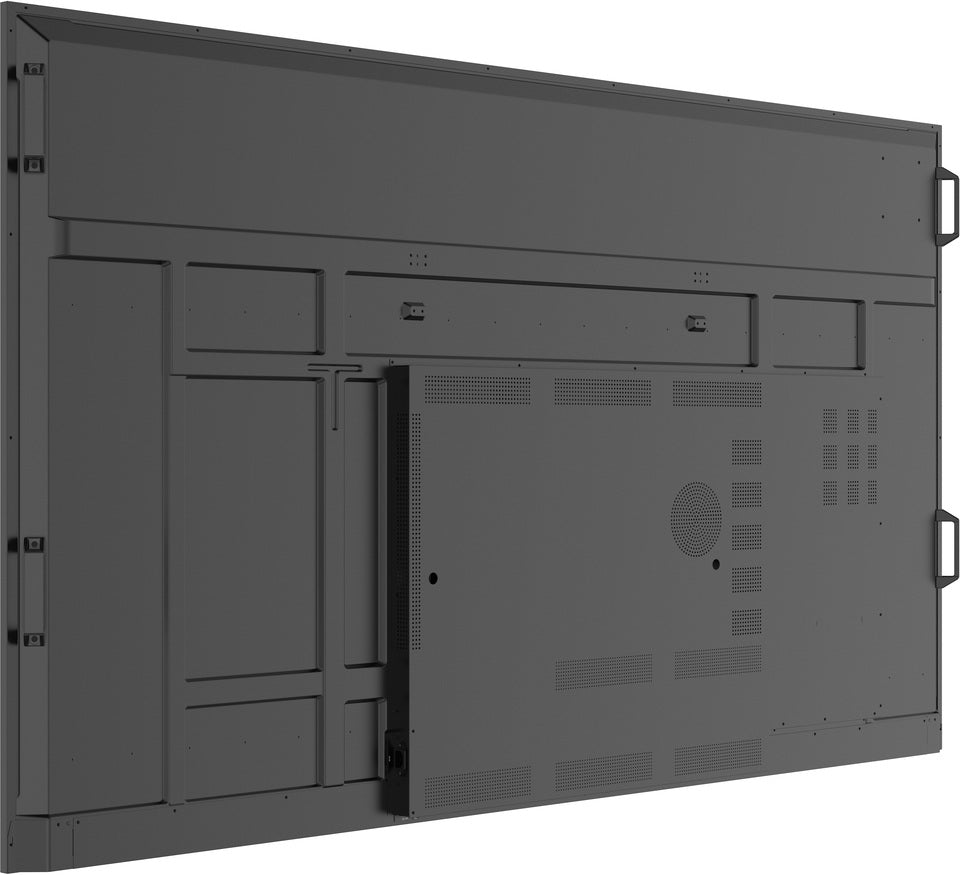

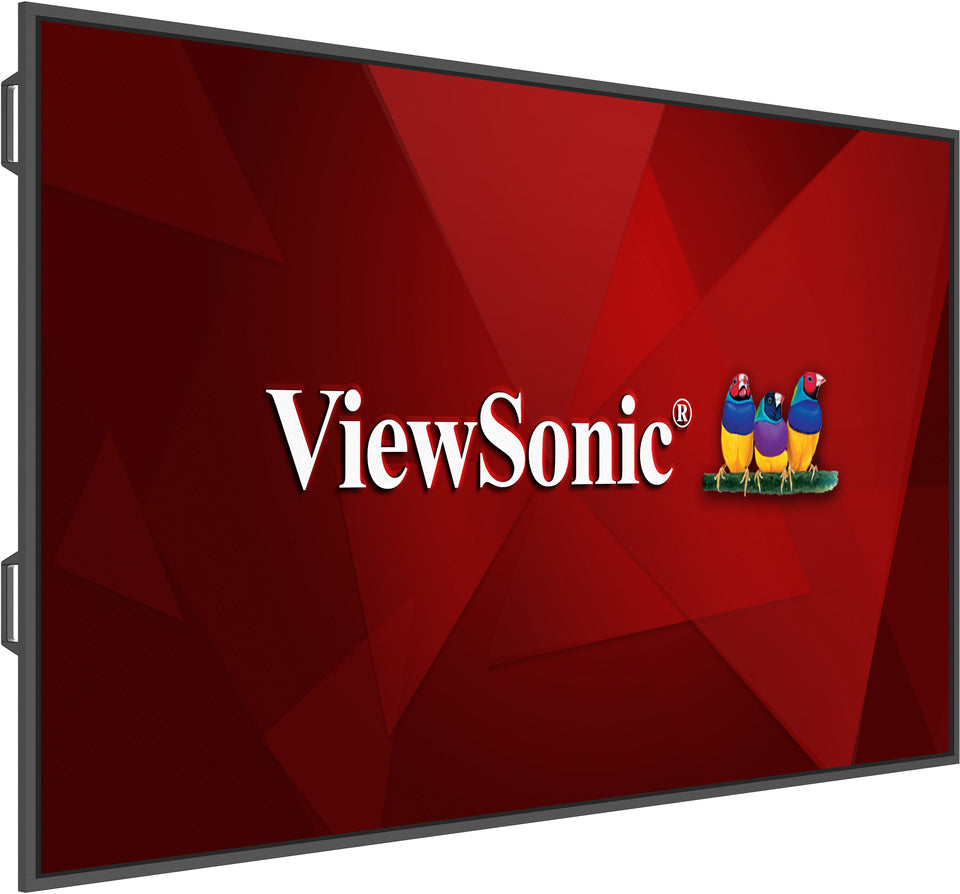

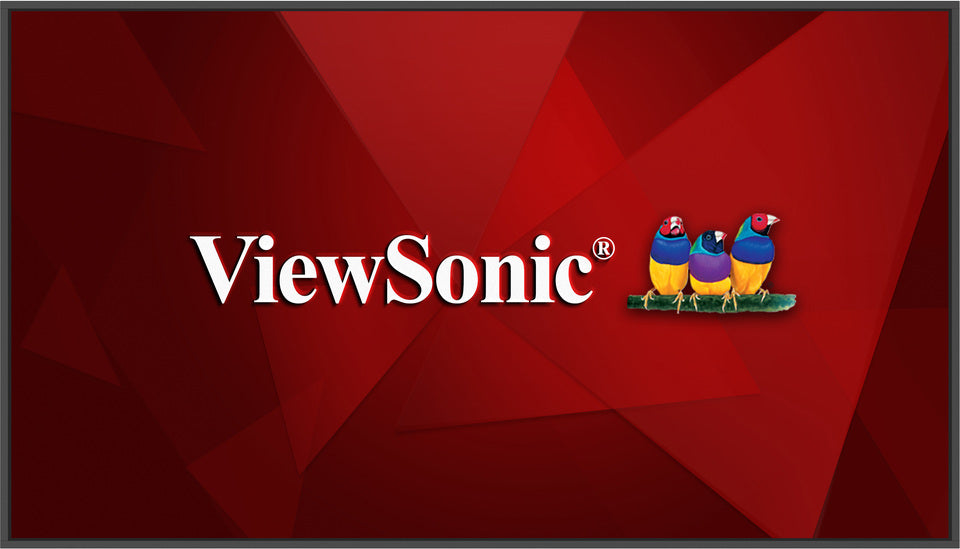

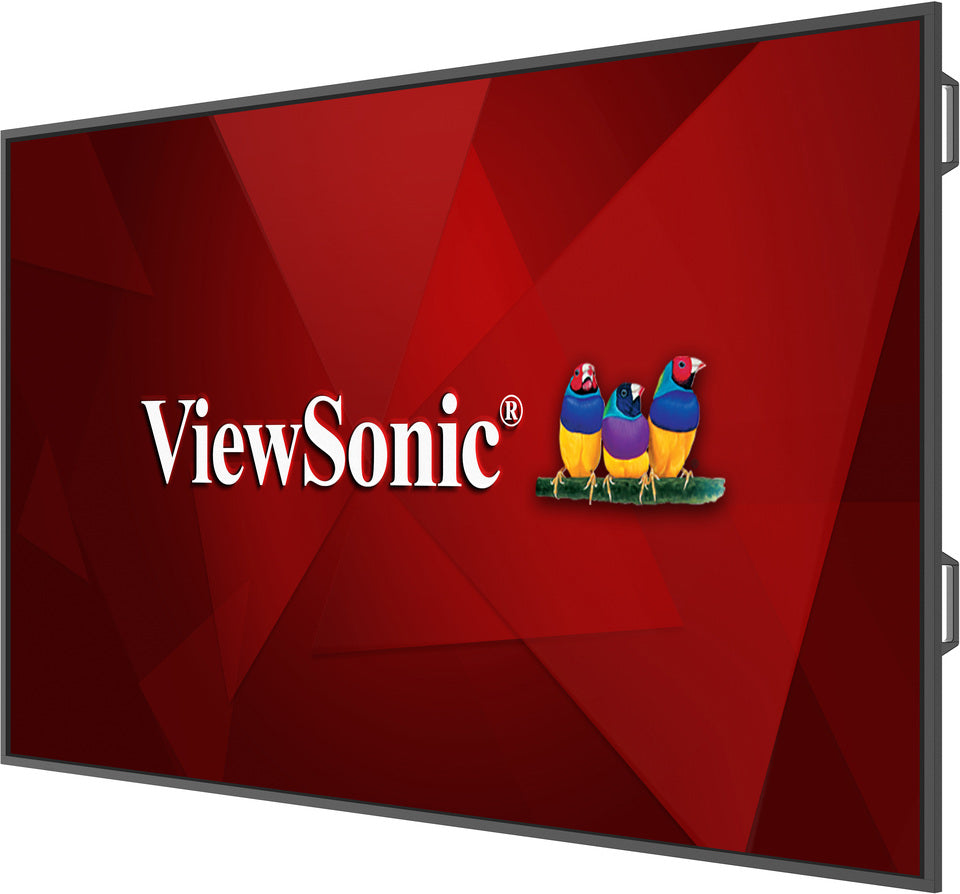

The ViewSonic CDE86G3 is an 86-inch commercial display built for secure, 24/7 operation in enterprise, government, education, and healthcare environments. As part of the ViewSonic CDEG3 Series, it features an OS-free architecture that eliminates unnecessary software layers and background processes, minimizing vulnerabilities and simplifying IT management.
Delivering native 4K UHD resolution, 500-nit brightness, and support for both landscape and portrait orientations, the CDE86G3 ensures clear, vibrant visuals for mission-critical digital signage and information displays. Equipped with USB-C and HDMI 2.1 connectivity, it enables seamless BYOD (Bring Your Own Device) presentations without the need for extra adapters.

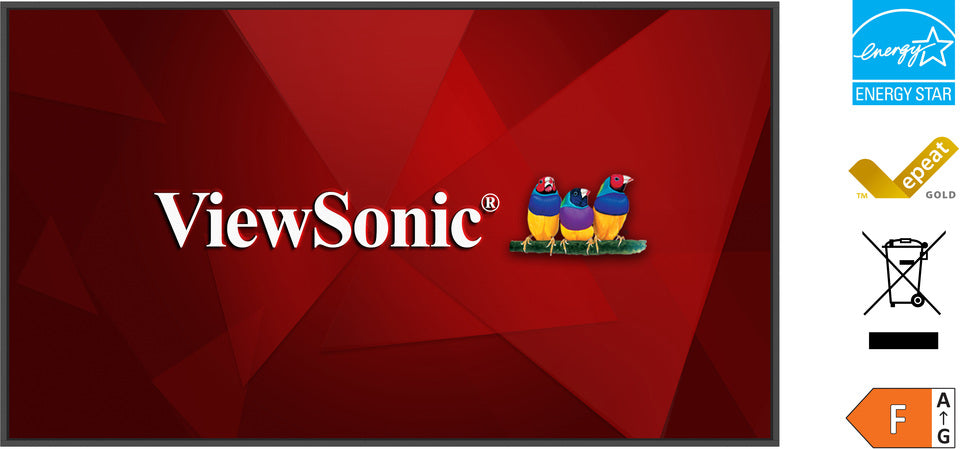

With instant cold boot, built-in USB media playback, and ProAV system integration, this commercial display is designed for nonstop performance and centralized remote control. Certified EPEAT® Gold and Energy Star 8.0, it represents a sustainable, energy-efficient signage solution that combines security, reliability, and ease of deployment in demanding professional environments.
| Category | Specification |
|---|---|
| Model | CDE86G3-1C |
| Display | 86" TFT LCD module with DLED backlight |
| Display Area (mm) | 1895.04 (H) × 1065.96 (V) (85.6" diagonal) |
| Native Resolution | 3840 × 2160 (4K UHD) |
| Aspect Ratio | 16:9 |
| Brightness | 500 nits (typ.) |
| Contrast Ratio | 1200:1 |
| Colors | 8-bit + FRC |
| Response Time | 8ms |
| Viewing Angles | 178° (H) / 178° (V) |
| Backlight Life | 50,000 hours |
| Surface Treatment | 3H Hardness, Anti-glare, 25% Haze |
| Bezel (L/R/T/B) | 15.9 / 15.9 / 15.9 / 15.9 mm |

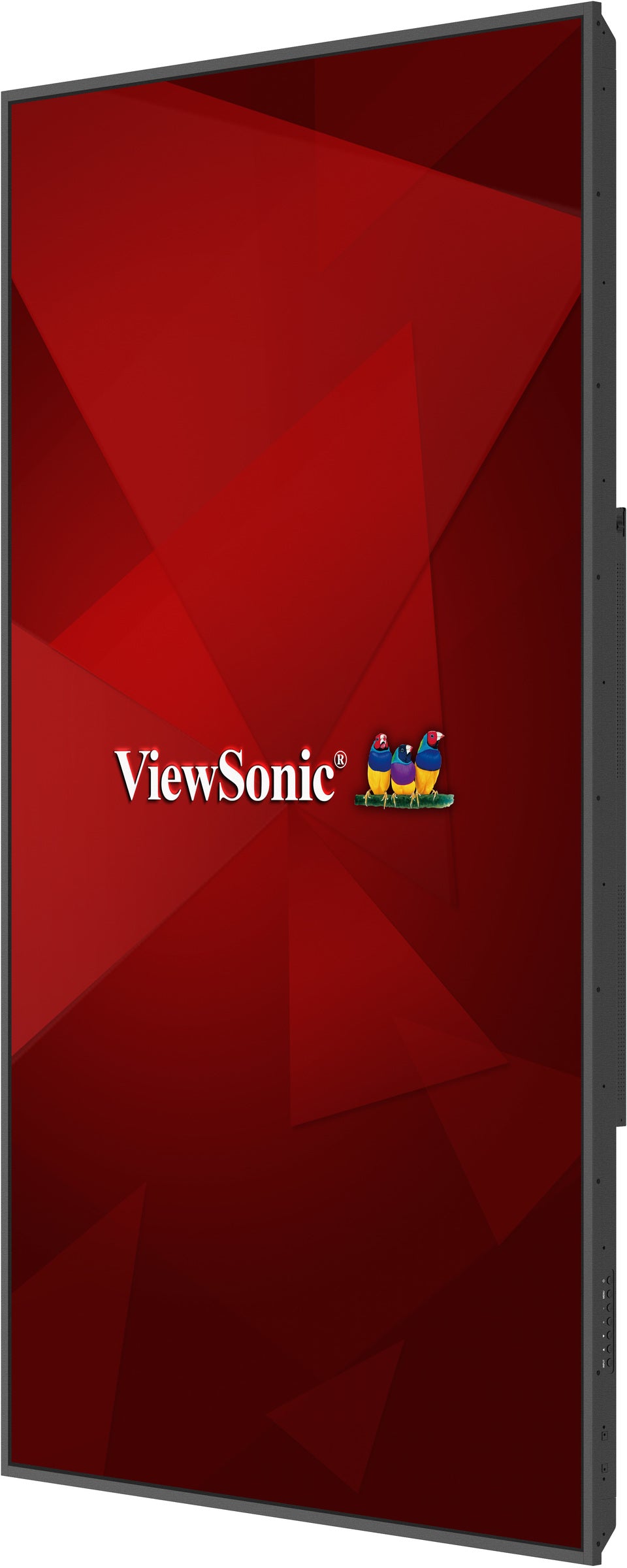

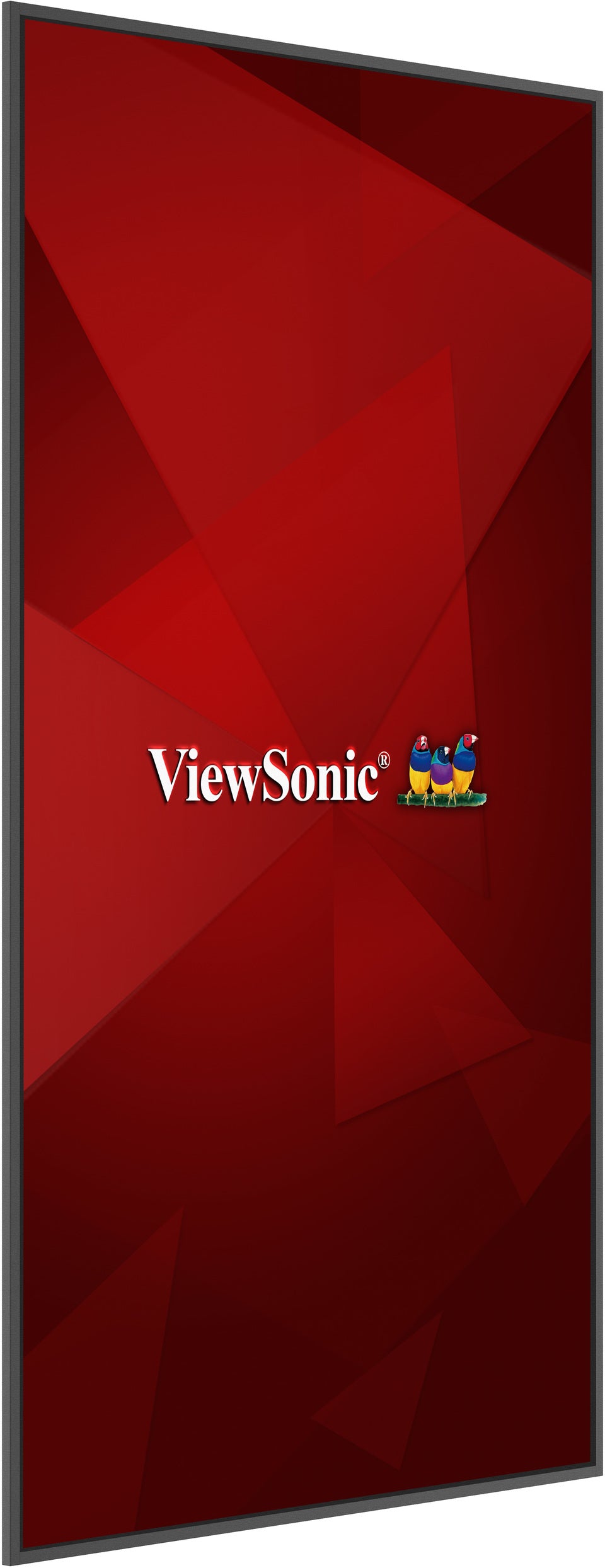

| Orientation | Landscape & Portrait |
| HDMI Inputs | 3× HDMI (HDMI-CEC & HDCP 1.4/2.2, HDMI 2.1 4K@60Hz; HDMI 3 supports ARC) |
| VGA Input | 1× (1080p@60Hz) |
| Audio Input | 1× 3.5mm PC Audio In |
| RS-232 | 1× Input |
| Audio Output | 1× 3.5mm |
| SPDIF Output | 1× |
| LAN | 1× RJ45 (Supports WOL) |
| USB Ports | 2× Type-A (System Update & Media Playback), 1× Type-C (DP1.2/HDCP1.4/2.2 + Data 2.0) |
| Speakers | 10W × 2 |
| Power Supply | 100-240VAC ±10% |
| Power Consumption | 138.3W (Energy Star) |

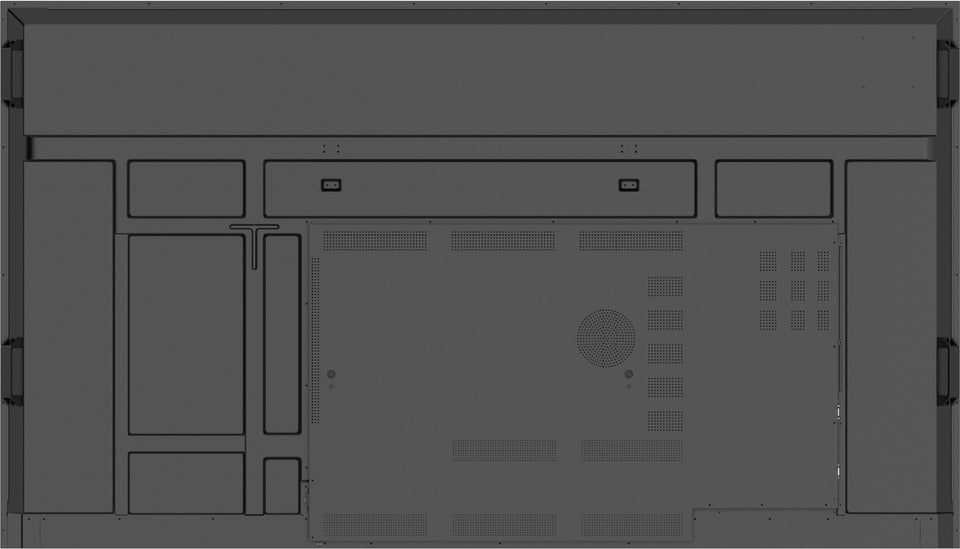

| Wall Mount (VESA®) | 600 × 400 mm |
| Operating Temperature | 0°C to 40°C (Automatic Overheat Shutdown) |
| Humidity | 20% – 80% RH non-condensing |
| Operating Hours | 24/7 continuous operation |
| Dimensions (W×H×D) | 1933.8 × 1103.8 × 79.7 mm / 76.13" × 43.46" × 3.14" |
| Net Weight | 39.45 kg / 86.97 lb |
| Gross Weight | 53.8 kg / 118.61 lb |
| Certifications | TÜV SÜD, FCC, ICES-003, Energy Star 8.0, EPEAT Gold, CE EMC, IECEE CB, RoHS, ErP, REACH, WEEE, CA Prop 65, ISTA |
| Package Contents | Power cord (by region), Remote control, AAA batteries ×2, Quick Start Guide, RS-232 adapter, Clamp ×5, Screw ×4, 3m HDMI cable (LA certified), Compliance statement |
