Description

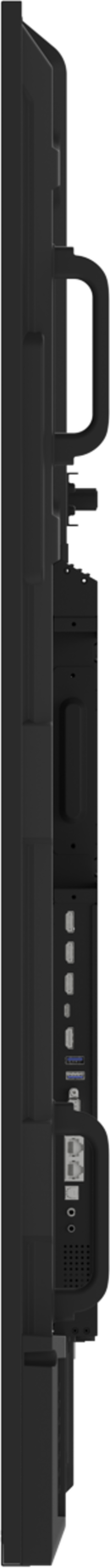

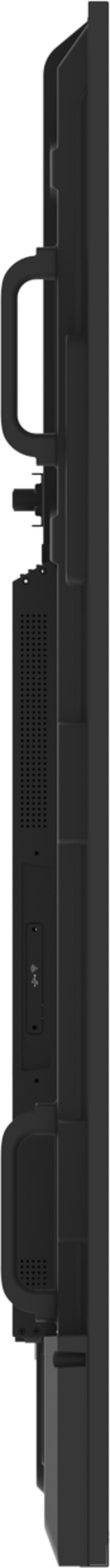

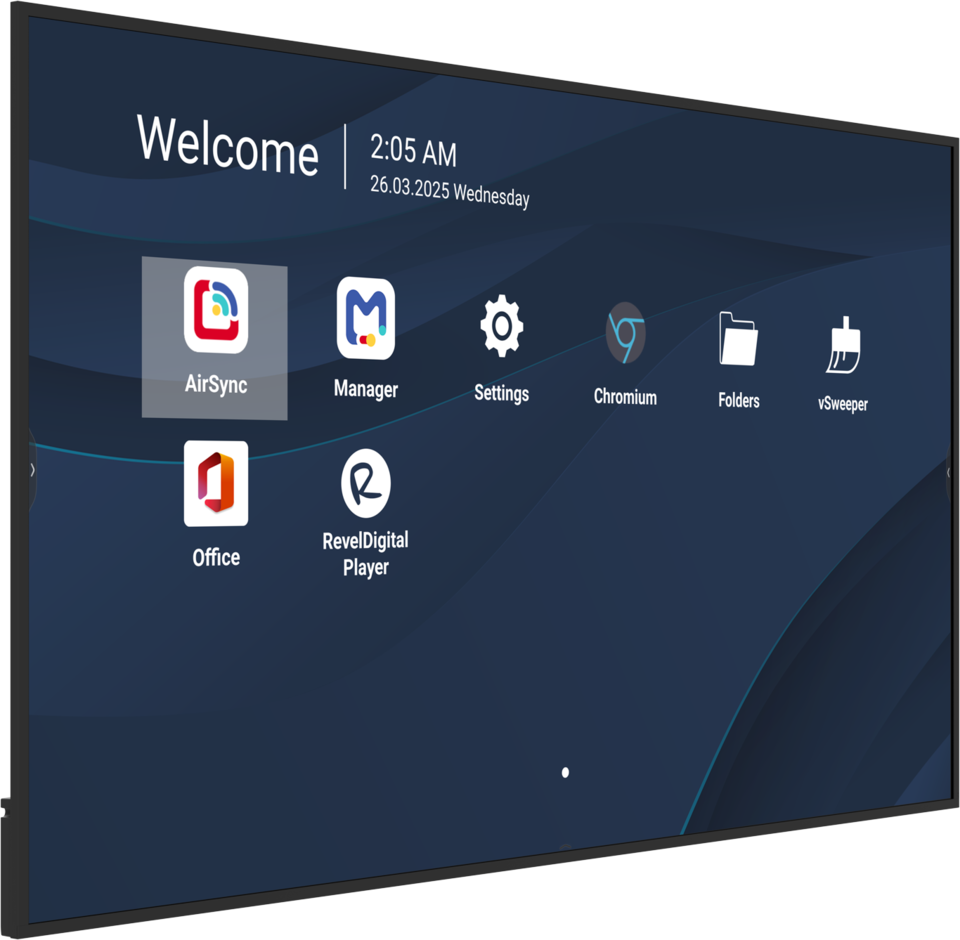

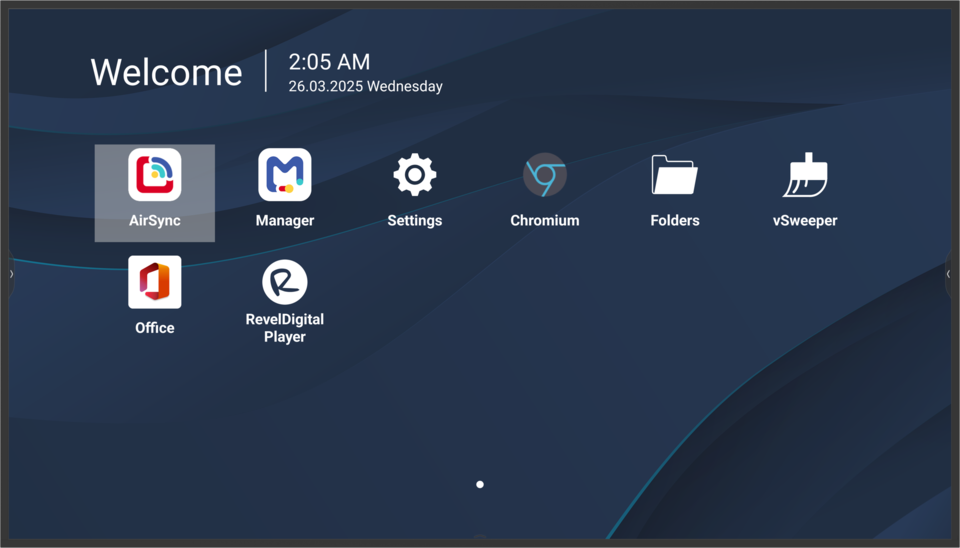

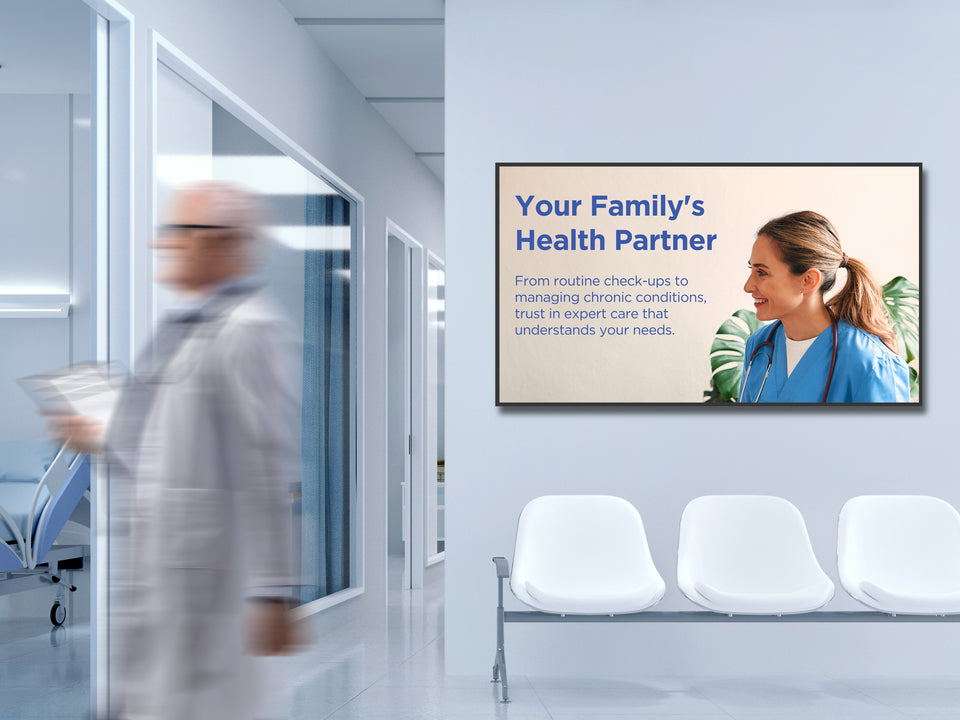

The ViewSonic CDE8631 from the CDE31 Series is a professional-grade 86-inch commercial display designed for dynamic communication across corporate, retail, educational, and healthcare environments. Featuring 4K Ultra HD resolution, 500-nit brightness, and 24/7 operation, it ensures clear, consistent visuals for digital signage and meeting applications.

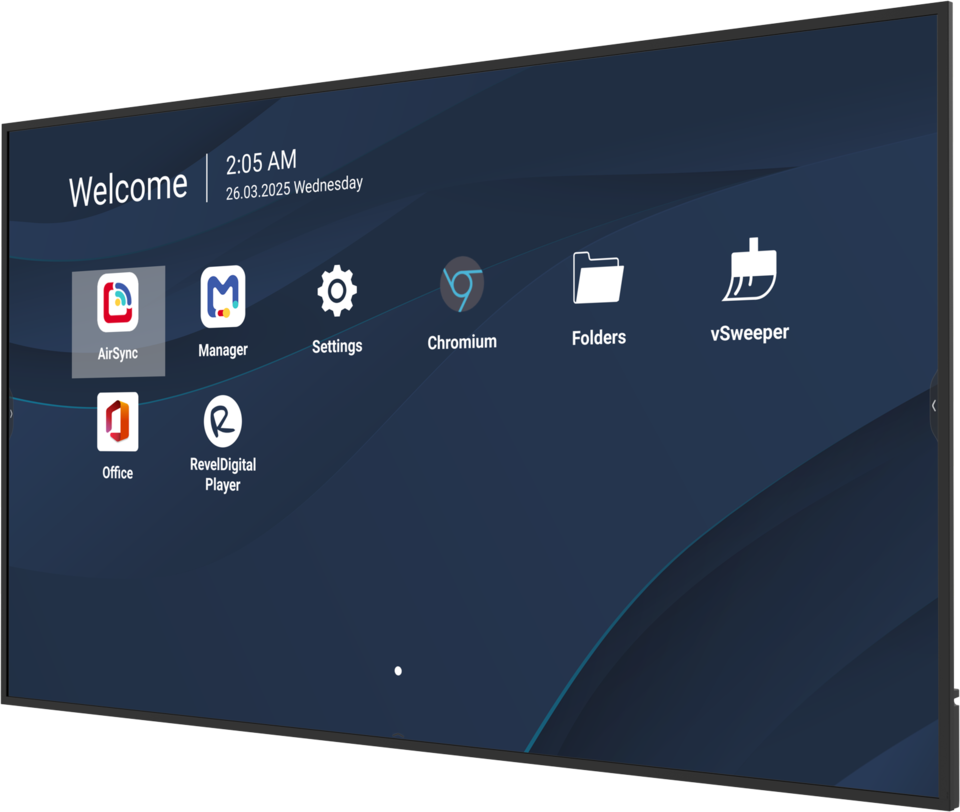

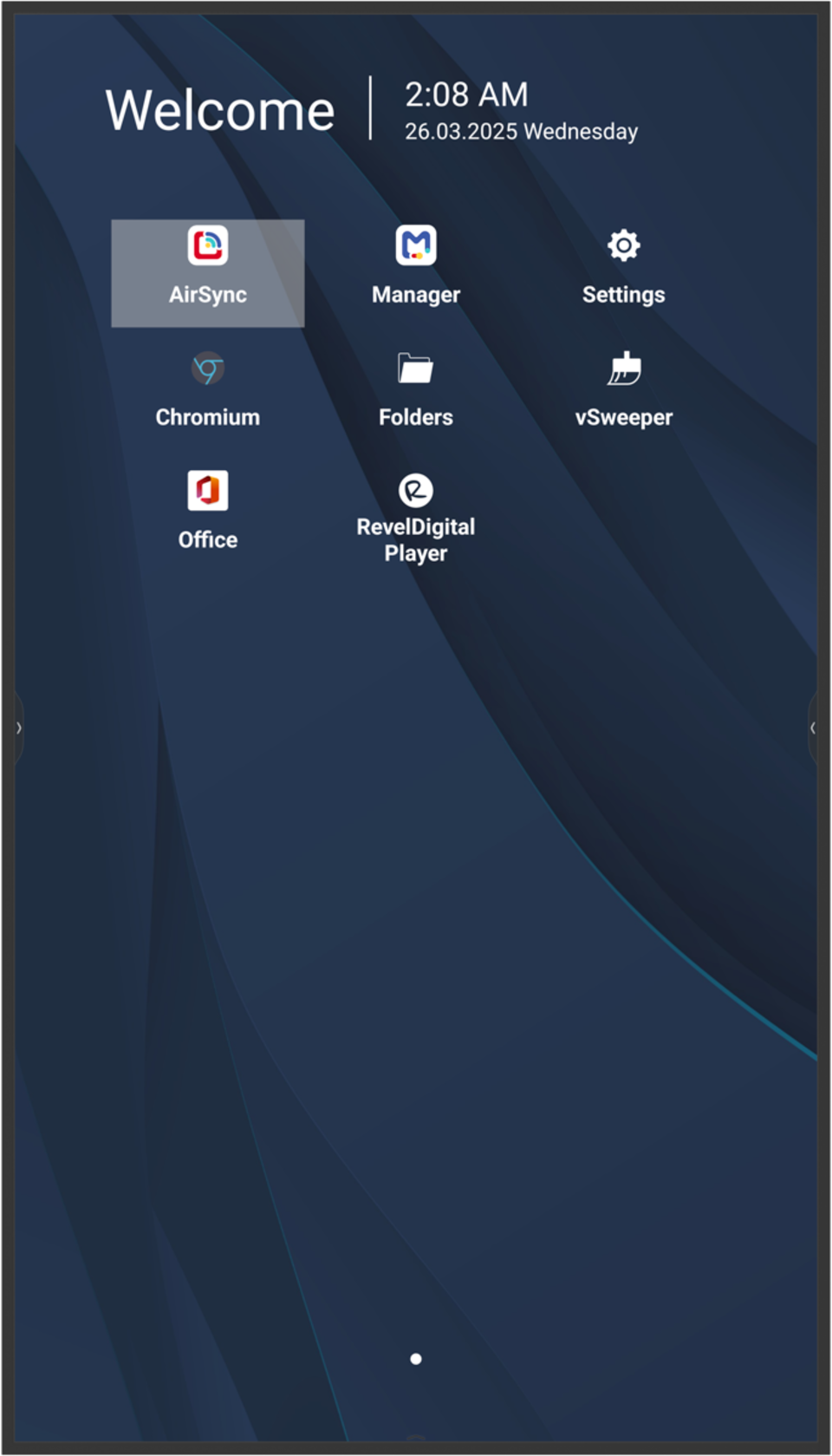

Powered by Android 14 OS and a Quad-Core ARM Cortex-A73 processor with 8GB RAM and 32GB storage, the CDE8631 delivers smooth performance, responsive control, and upgradeability to Android 16 for future-proof reliability. With fast warm boot in under 7 seconds, automatic USB media failover, and flexible landscape or portrait orientation, it ensures uninterrupted content playback.
ProAV system integration, web-based remote management via ViewSonic Manager, and compatibility with leading control systems simplify deployment and centralized control. The display also features multiple HDMI 2.0 inputs, USB-C connectivity (65W PD), dual 16W speakers, and LAN/RS232 control, making it a comprehensive, secure, and efficient signage solution for mission-critical environments.
| Category | Specification |
|---|---|
| Display | |
| Panel Size | 86" |
| Display Type | TFT LCD module with DLED backlight |
| Display Area | 1895.04 (H) × 1065.96 (V) mm |
| Native Resolution | 3840 × 2160 (4K UHD) |
| Aspect Ratio | 16:9 |
| Colors | 8bit + FRC |
| Brightness | 500 nits |
| Contrast Ratio | 1200:1 (typical), 5000:1 (DCR enabled) |
| Response Time | 8 ms |
| Viewing Angle | 178° (H) / 178° (V) |
| Backlight Life | 50,000 hours |
| Surface Treatment | Anti-glare, 3H hardness, 25% haze |
| Orientation | Landscape & Portrait |
| Bezel Width | 15.9 mm (all sides) |
| Platform | |
| Processor | Quad-core ARM Cortex-A73 |
| RAM | 8GB DDR4 |
| Storage | 32GB |
| Embedded OS | Android 14 AOSP (Upgradeable to Android 16) |
| Input/Output | |
| HDMI Input | 3 × HDMI 2.0 (HDMI1 supports ARC) |
| HDMI Output | 1 × HDMI |
| Audio Input | 1 × 3.5 mm |
| Audio Output | 1 × 3.5 mm (line out), 1 × SPDIF |
| RS-232 | 1 × RS-232 port |
| LAN | 2 × RJ45 (1 LAN-in 10/100M, 1 LAN-out 1000M for OPS) |
| USB | 2 × Type-A (1 × USB 2.0, 1 × USB 3.2 Gen1), 1 × Type-C (PD 65W/15W, DP1.2, USB 2.0 data, 10M/100M share) |
| OPS Slot | 1 |
| WiFi Slot | 1 |
| Audio | Dual 16W Speakers |
| Power | |
| Voltage | 100–240 VAC ±10% |
| Power Consumption | 104.21W (Energy Star certified) |
| Mounting & Ergonomics | |

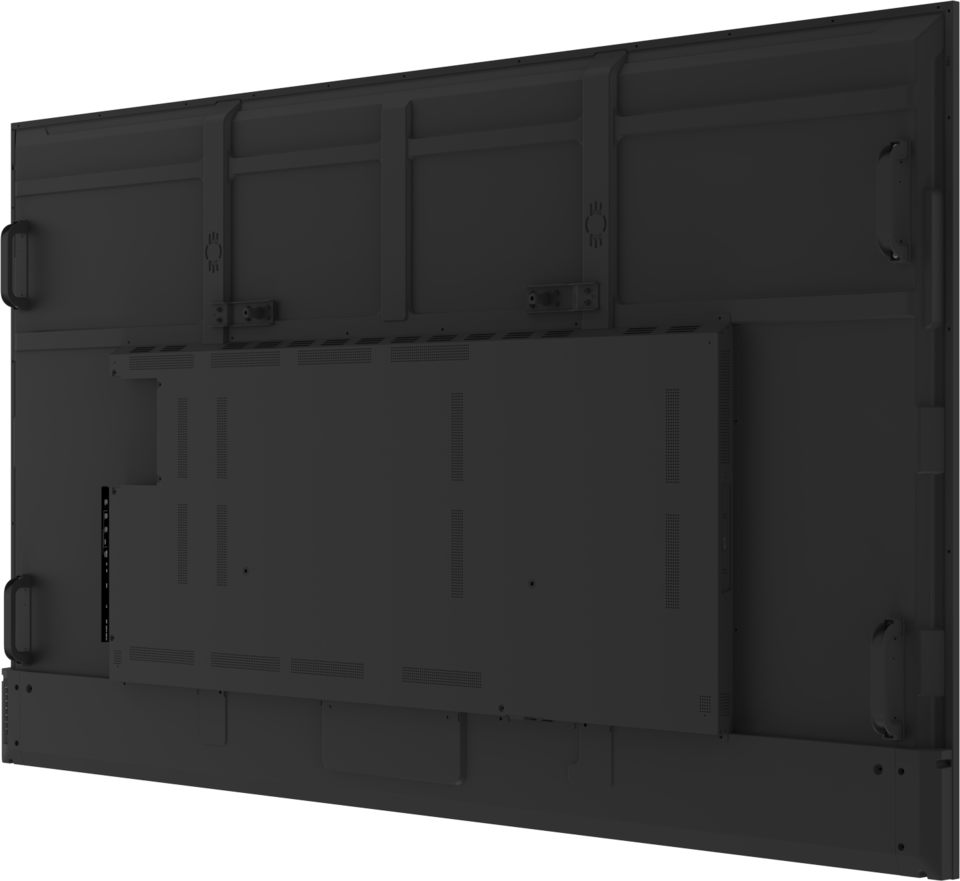

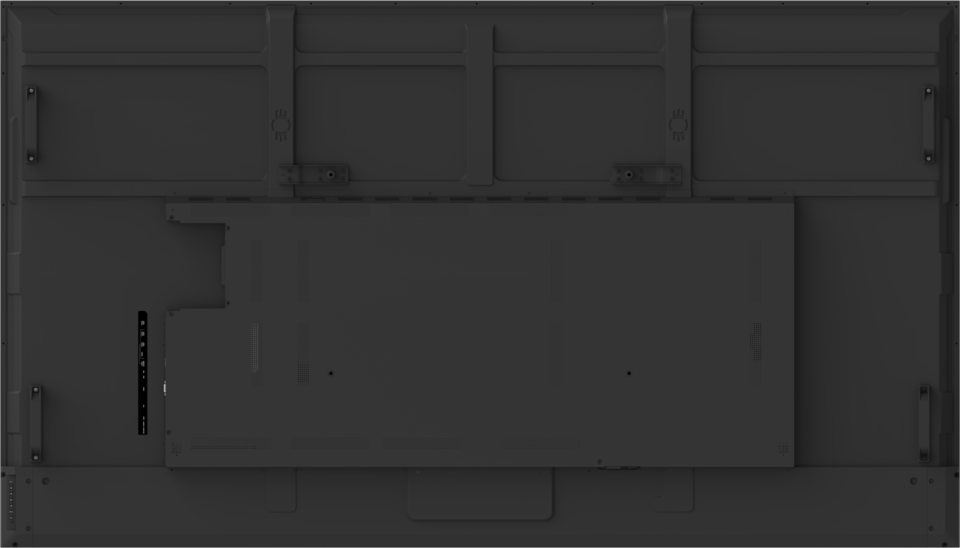

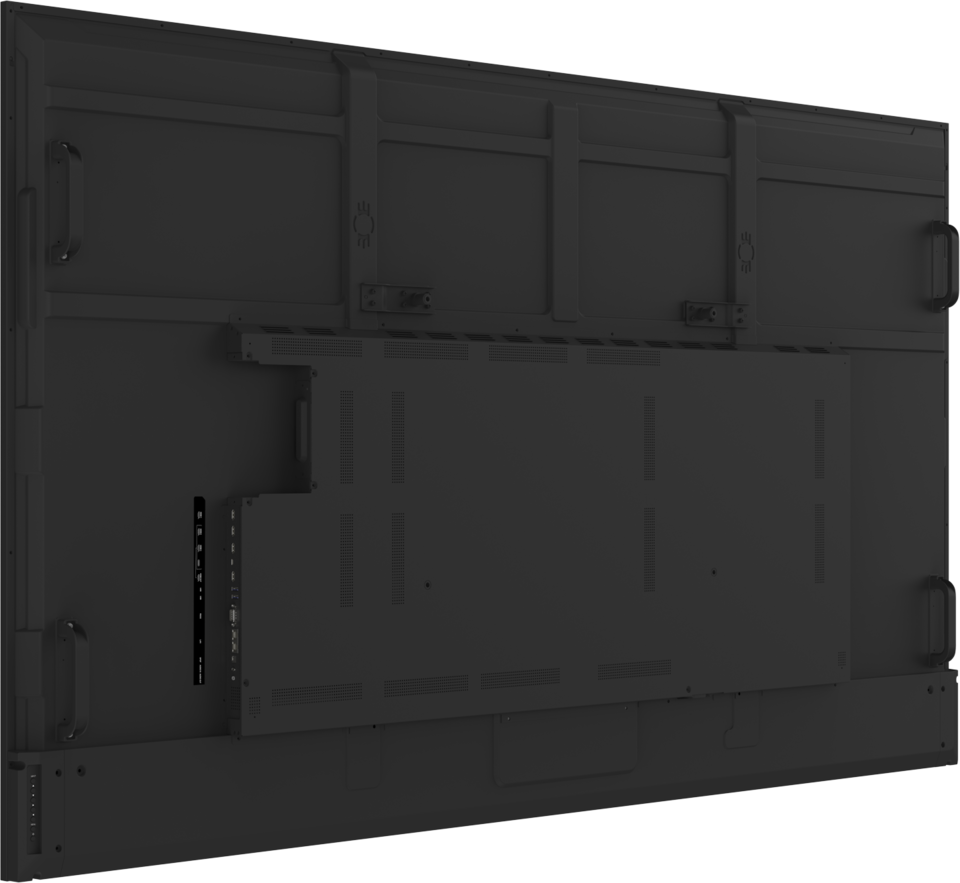

| VESA® Mount | 600 × 400 mm |
| Orientation | Landscape / Portrait |
| Operating Conditions | 0°C–40°C, 20%–80% RH |
| Operating Hours | 24/7 continuous use |
| Dimensions & Weight | |
| Physical (W × H × D) | 1930.8 × 1101.7 × 68 mm / 76.02" × 43.37" × 2.68" |
| Packaging (W × H × D) | 2110 × 1247 × 225 mm / 83.07" × 49.09" × 8.86" |
| Net Weight | 42 kg / 92.59 lb |
| Gross Weight | 56.95 kg / 125.55 lb |

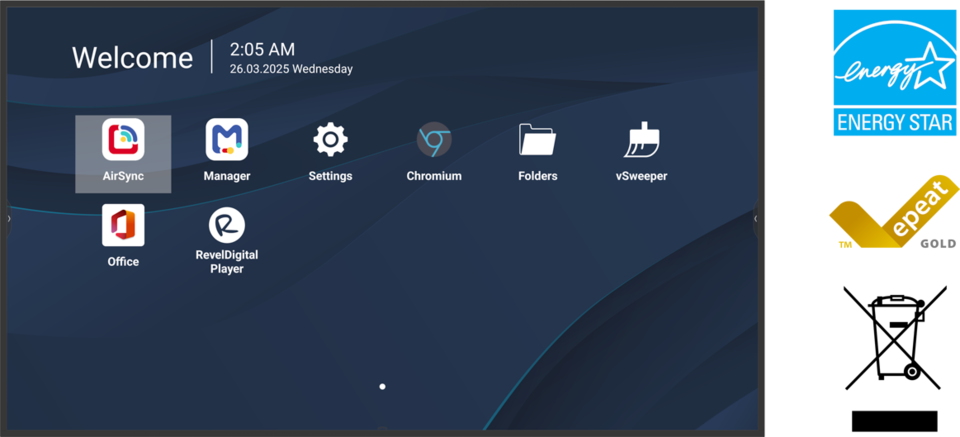

| Regulations | cTUVus, FCC/ICES003, Energy Star 8.0, EPEAT Gold, CE, CB, RCM, RoHS, REACH, WEEE, CA65, TPCH, Green BOM |
| Package Contents | Power Cord (3m), Remote Control, 2× AAA Batteries, Quick Start Guide, RS232 Adapter, Clamps (x5), Wall Mount Screws (x4), 3m HDMI Cable (HDMI LA certified), Compliance Statement |
