Description

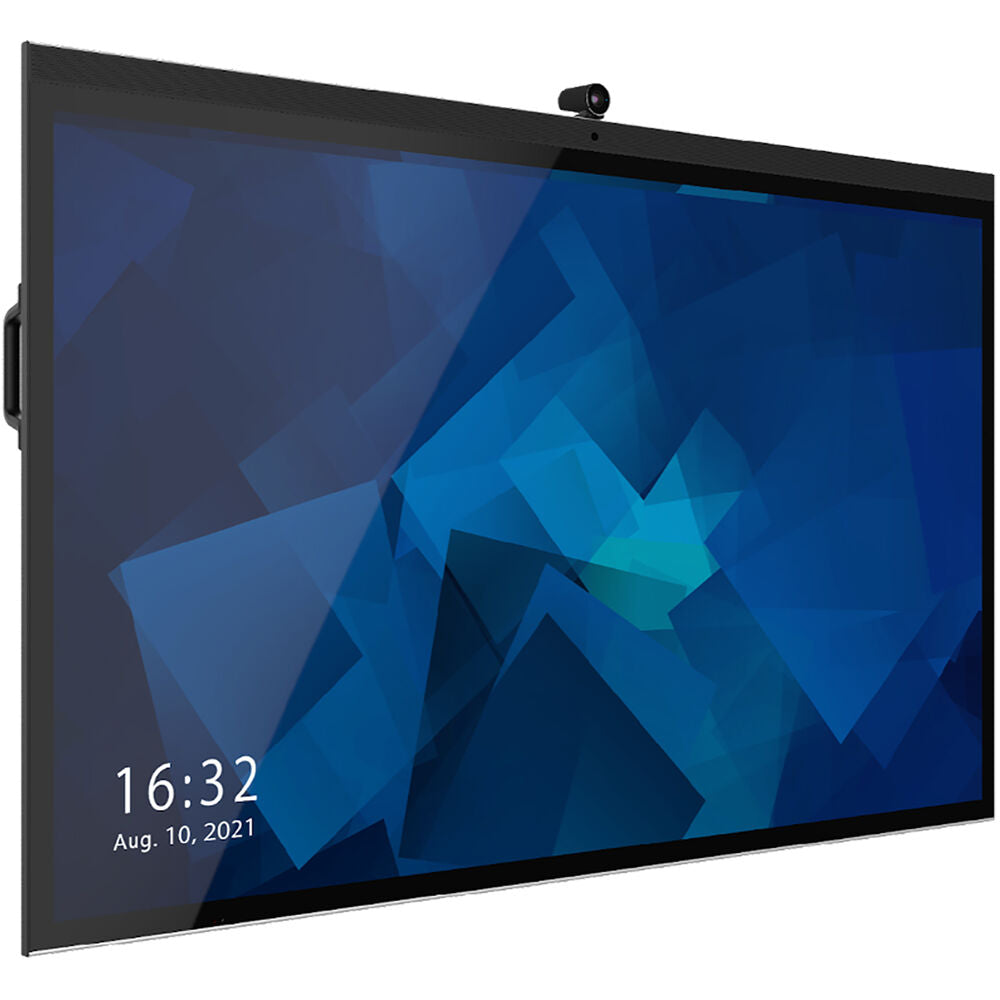

The Newline Z Series TT-8622Z is an 86-inch UHD 4K interactive touch display designed for classrooms, training rooms, and collaborative workspaces. Built with a high-brightness 4K panel and optical bonding technology, it delivers sharp visuals, wide viewing angles, and reduced glare for comfortable, all-day use.
Powered by an embedded Android operating system, the TT-8622Z enables standalone operation without the need for an external PC. Its projective capacitive touch technology supports smooth, precise multi-touch interaction using fingers or passive pens, making it ideal for interactive lessons, presentations, and group collaboration.
With robust audio, integrated microphones, extensive connectivity options, and durable commercial-grade construction, the Newline TT-8622Z provides a reliable and flexible interactive display solution for modern learning and meeting environments.
| Specification | Details |
|---|---|
| Series | Newline Z Series |
| Screen Size | 86 inches |
| Resolution | 3840 × 2160 (UHD 4K) |
| Aspect Ratio | 16:9 |
| Panel Brightness | 400 nits |
| Contrast Ratio | 4000:1 (typical) |
| Viewing Angle | 178° (horizontal / vertical) |
| Touch Technology | Projected Capacitive (PCAP) |
| Touch Points | 20-point multi-touch (up to 40-point supported on Windows) |
| Touch Surface | Anti-glare, anti-fingerprint tempered glass |
| Glass Hardness | 7H |
| Optical Bonding | Yes |
| Operating System | Android 11 |
| Processor | Amlogic 311D2 |
| RAM | 8 GB |
| Internal Storage | 64 GB |
| Speakers | 20 W × 2 with integrated subwoofer |
| Microphone | 8-mic array (upper front) |
| Connectivity | HDMI, DisplayPort, USB Type-A, USB Type-B (touch), USB Type-C, LAN, RS-232, Audio Out |
| Wireless | Built-in Wi-Fi |
| VESA Mount | 800 × 400 mm |
| Installation | Wall mount or mobile stand (optional) |
| Operating Voltage | AC 100–240 V |
| Maximum Power Consumption | ≤ 550 W |
| Standby Power | < 0.5 W |
| Dimensions (W × H × D) | 77.4 × 46.6 × 3.3 in |
| Net Weight | Approx. 132 lbs |
