Description

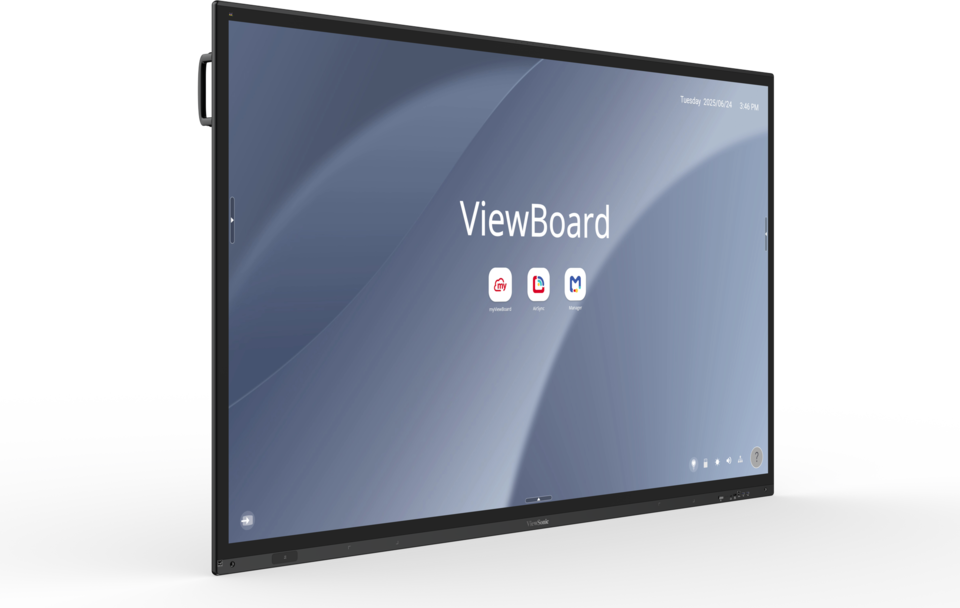

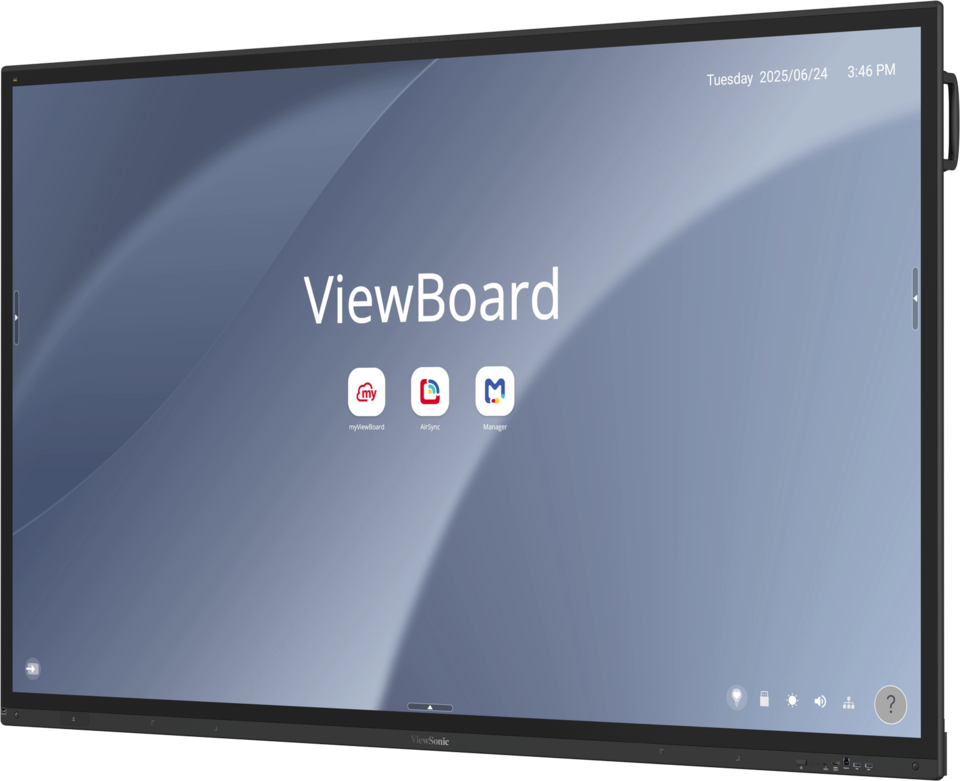

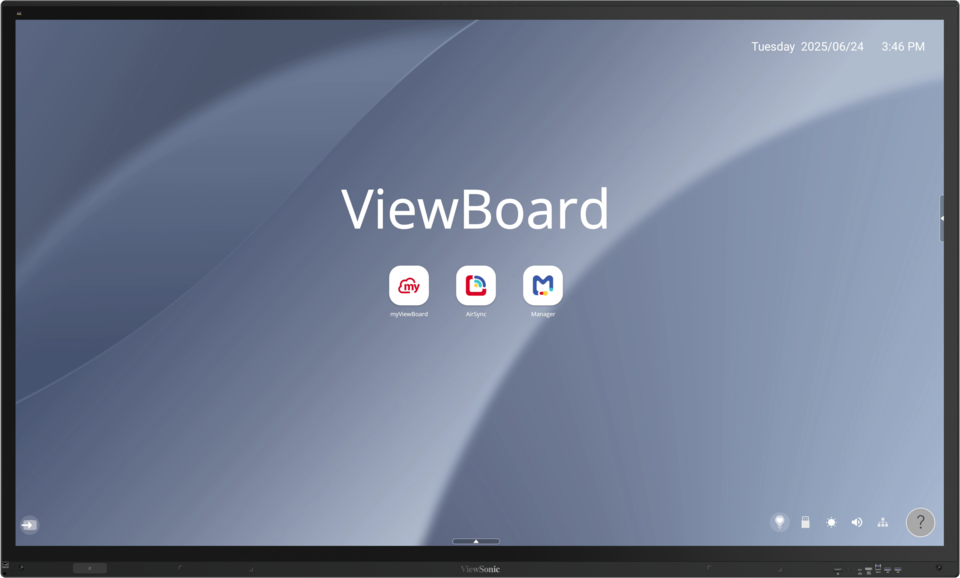

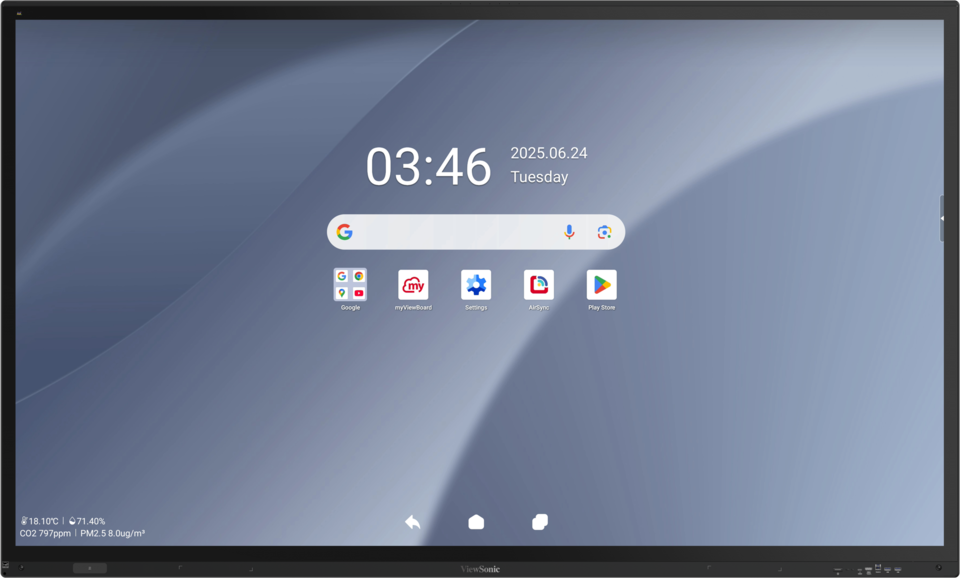

The ViewSonic® ViewBoard® IFP8663 redefines collaboration with its secure, high-performance design for enterprise and higher education spaces. Featuring ultra-responsive 50-point PCAP touch with palm rejection and Write Away™ technology, it offers a natural, pen-on-paper writing experience. Powered by Android 15 EDLA, the IFP8663 delivers secure, upgradable performance, giving users access to the latest apps and updates on a future-ready platform. Its octa-core processor and 32GB RAM ensure smooth, lag-free multitasking across demanding workflows.
The integrated NFC login enables fast and secure user access, while built-in ViewSonic Manager, AirSync, and TeamOne streamline device management, wireless casting, and real-time collaboration. Smart sensors automatically adjust brightness and monitor environmental conditions to enhance comfort and power efficiency. Certified EPEAT Gold and EEI Level F, the IFP8663 balances performance, security, and sustainability—making it an ideal solution for modern, connected workspaces.
| Category | Specification |
|---|---|
| Display | |
| Panel Size | 86" TFT LCD module with DLED backlight, ADS |
| Resolution | 3840 x 2160 (4K UHD) |
| Brightness | 450 nits (typ.) |
| Contrast Ratio | 5000:1 |
| Response Time | 8ms |
| Viewing Angle | 178° (H) / 178° (V) |
| Colors | 1.07B (8-bit + FRC) |
| Backlight Life | 50,000 hours |
| Surface Treatment | 9H hardness, Anti-glare, Anti-fingerprint, Anti-bacterial |
| Orientation | Landscape |
| Platform | |
| Processor | Octa-Core CPU (A76x4 + A55x4) |
| RAM | 32GB LPDDR |
| Storage | 128GB eMMC |
| Operating System | Android 15 (EDLA Certified) |
| Touch System | |
| Technology | PCAP (Projected Capacitive) |
| Touch Points | 50-point (Windows & Android) |
| Touch Resolution | 32767 x 32767 |
| Palm Rejection | Yes (active and passive pen support) |
| Input Ports | |
| HDMI | 4 (HDMI 2.1 with CEC/ARC) |
| DisplayPort | 1 (DP 1.2) |
| Audio In | 1 (3.5mm) |
| RS232 | 1 |
| MicroSD Slot | 1 |
| OPS Slot | 1 |
| WiFi Slot | 1 |
| Output Ports | |
| HDMI Out | 1 (4K@60Hz) |
| Audio Out | 1 (3.5mm) |
| SPDIF | 1 (Optical) |
| LAN | 2x RJ45 (10/100/1000 Mbps, WOL, ProAV protocol) |
| USB Ports | |
| Type-A | 5x USB 3.2 Gen1 + 1x USB 2.0 (OTG) |
| Type-B | 3x (Touch 1/2) |
| Type-C | 3x (Front/Rear/Top) — DP 1.2, Touch, Ethernet, PD 65W–100W |
| Audio & Camera | |
| Speakers | 20W x2 + 20W Subwoofer |
| Microphone | Built-in 8-array mic |
| Camera Mount | Top camera plate included |
| Software Suite | |
| Annotation | myViewBoard for Android, myViewBoard for Windows |
| Whiteboarding | TeamOne |
| Wireless Casting | AirSync |
| Device Management | ViewSonic Manager |
| Launcher | ViewSonic Launcher UI |
| Sensors & Security | |
| Sensors | Light, PIR, Temperature, Humidity, eCO2, VOCs, PM2.5 |
| NFC Reader | Yes |
| Pen Sensor | Yes (Write Away™ supported) |
| Power | |
| Input Voltage | 100–240V AC ±10% |
| Power Consumption | 121.1W (On) / <0.5W (Off) |
| Mount & Dimensions | |

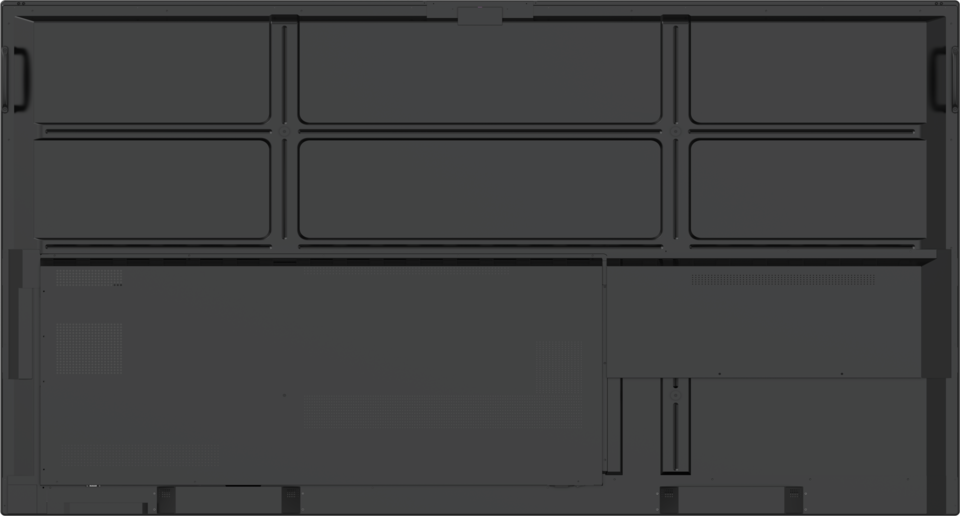

| VESA Mount | 800 x 600 mm |

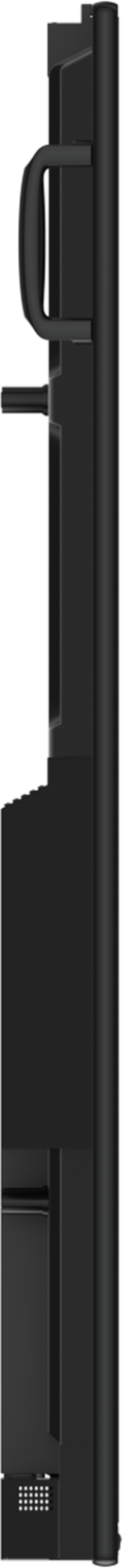

| Dimensions (W x H x D) | 1961.9 × 1172.5 × 79.5 mm |
| Weight | Net: 65.1 kg / Gross: 84.2 kg |
| Environmental | |
| Operating Temperature | 0°C – 40°C |
| Humidity | 20% – 80% RH (non-condensing) |
| Certifications | cTUVus, FCC, EPEAT, CE, CB, BSMI, NCC, RoHS, WEEE, ErP, Flicker-Free, Low Blue Light |
| Energy & Sustainability | ENERGY STAR 8.0 / EEI Level F |
| Package Contents | Power cord, HDMI cable, Type-C cable, USB touch cable, 2x pens, RS232 adapter, remote, batteries, camera plate, wall-mount screws, quick start guide |
