Description

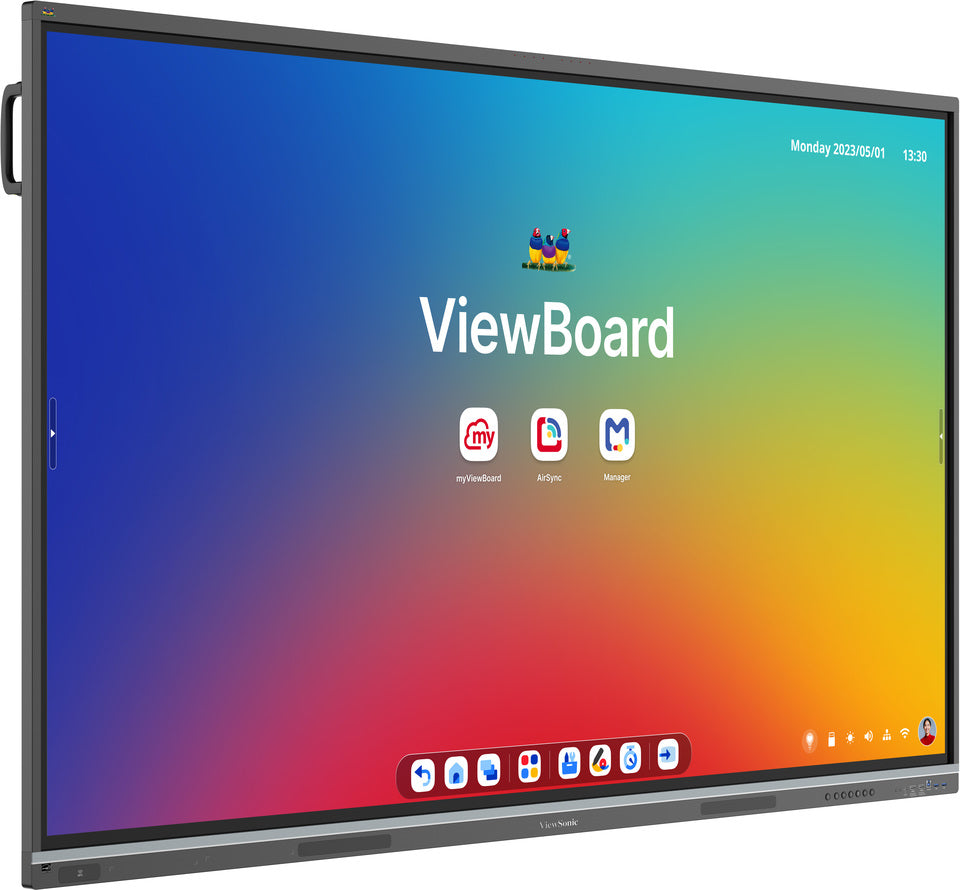

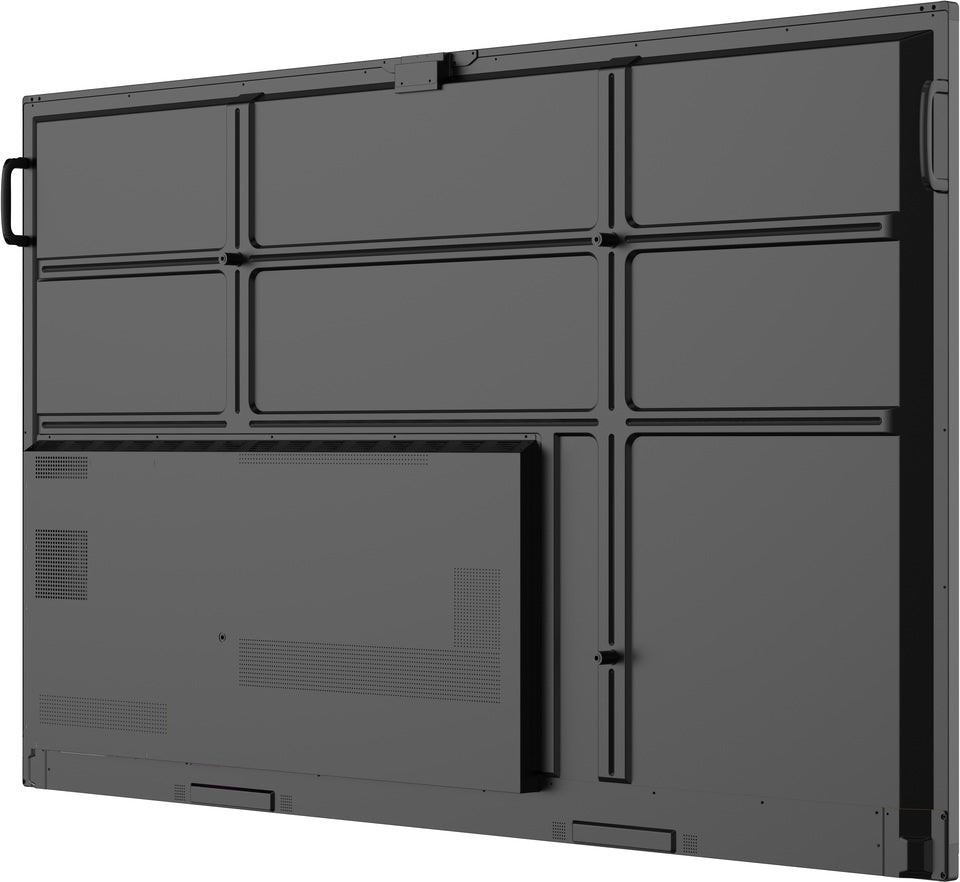

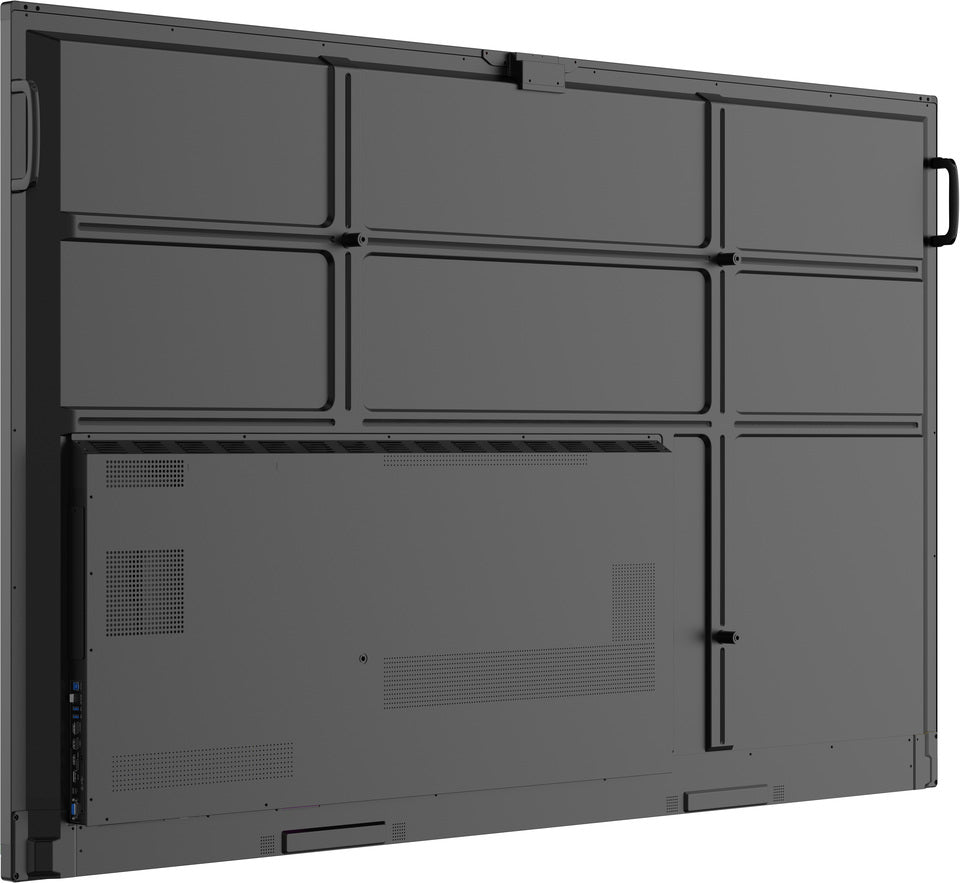

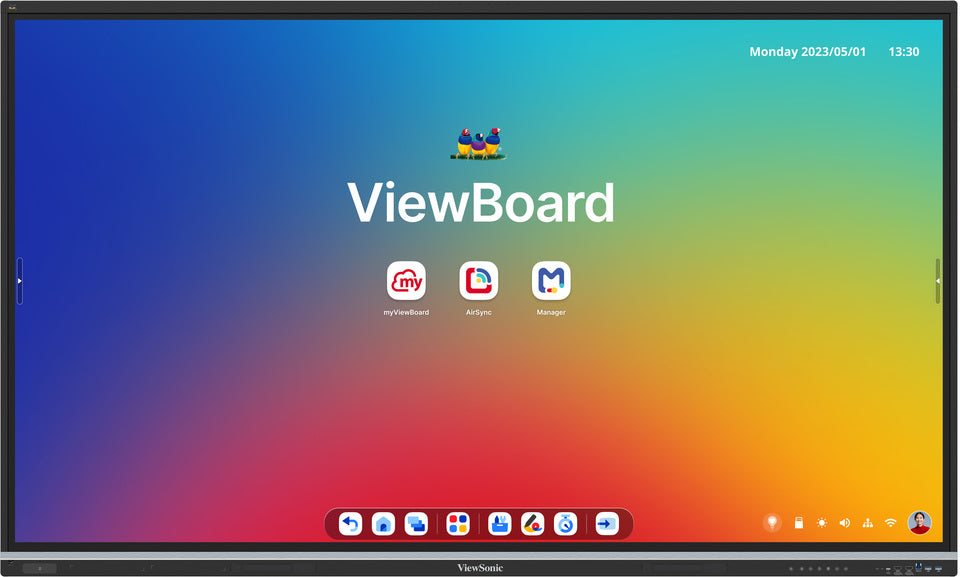

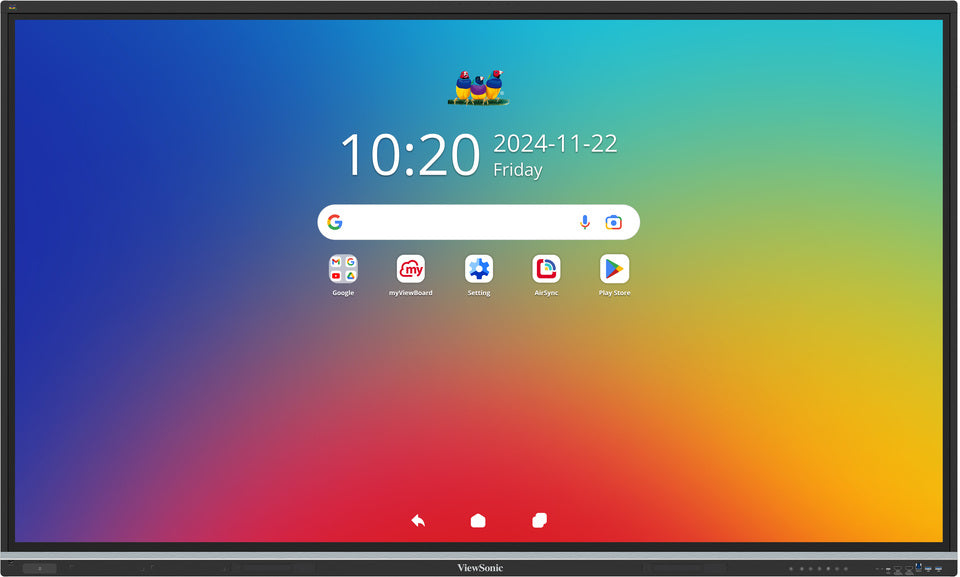

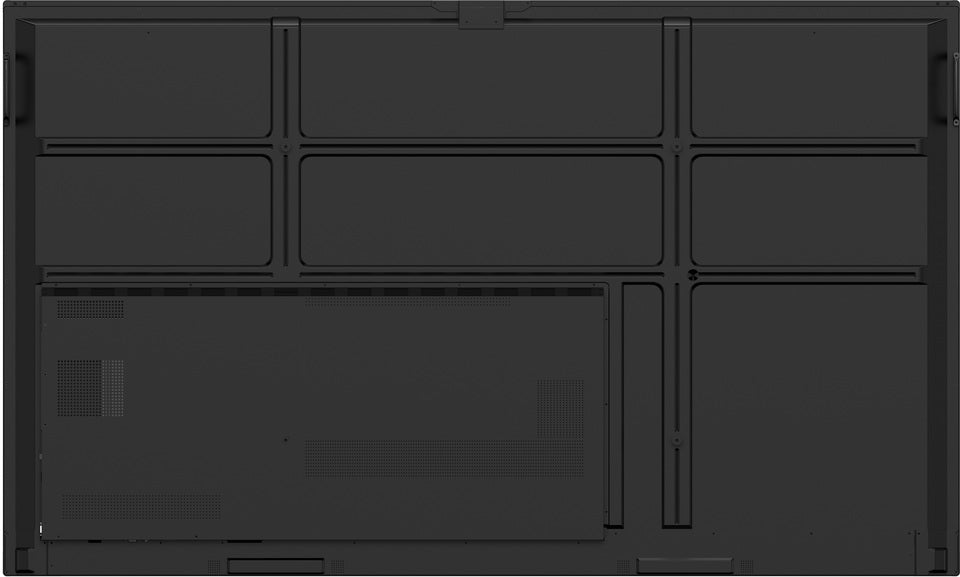

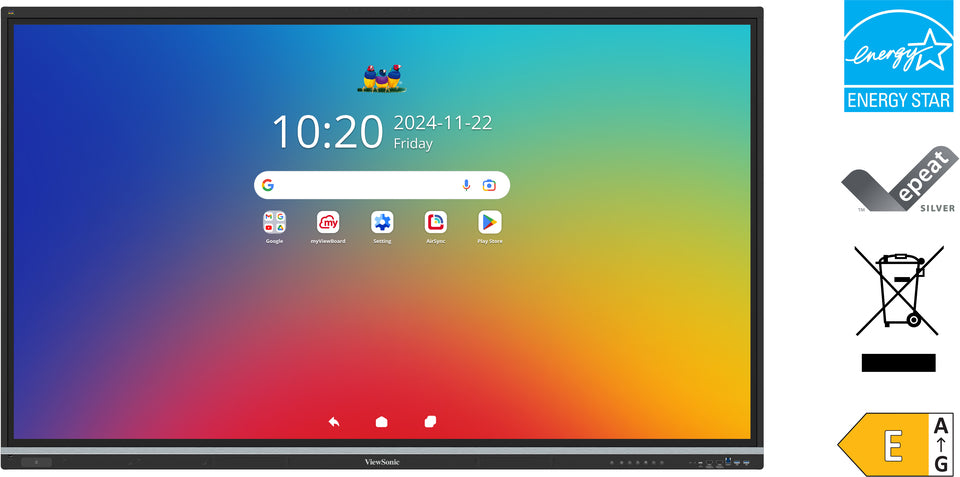

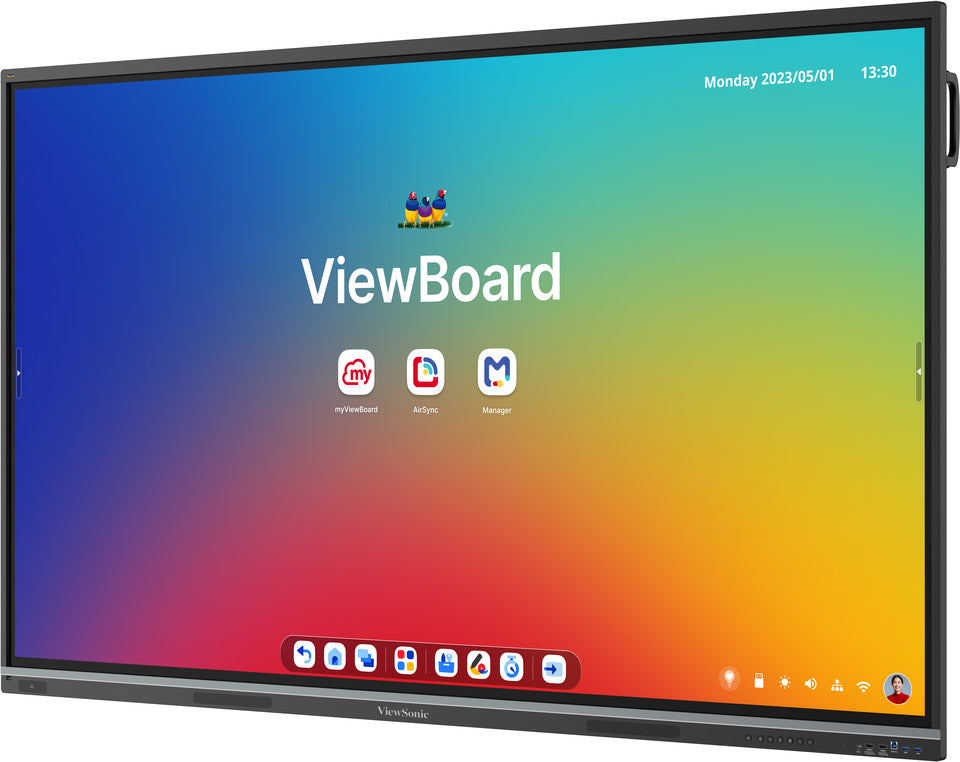

Transform any classroom or meeting space into a dynamic collaboration hub with the ViewSonic® ViewBoard® IFP8651. This 86-inch 4K interactive display is part of the next-generation IFP51 Series, combining cutting-edge interactivity with sustainable design. Featuring Write Away instant annotation, 50-point touch with advanced palm rejection, and EDLA certification powered by Android 14, the IFP8651 delivers seamless functionality and secure access to Google Play apps.
Equipped with NFC and SSO sign-in, teachers and presenters can instantly access their personalized settings. The integrated 70W sound system with subwoofer and 8-microphone array ensures crystal-clear audio for immersive lessons and conferences. The IFP8651 also integrates ViewSonic’s Education Software Suite—offering intuitive whiteboarding, wireless presentation, and centralized device management—making it an ideal choice for future-ready classrooms and collaboration spaces.
| Category | Details |
|---|---|
| Display | 86" TFT LCD with DLED Backlight, 3840x2160 UHD Resolution, 1.07B Colors, 400 nits Brightness (typ.), 1200:1 Contrast Ratio (typ.), 6.5ms Response Time, 178° Viewing Angles, 9H Hardness AG+AF Surface |
| Touch Technology | Ultra Fine IR Touch, 50-Point Touch (Android/Windows), 32767x32767 Resolution, Palm Rejection Supported |
| Processor & Storage | Octa-Core CPU, 16GB RAM, 128GB Storage |
| Operating System | EDLA Certified with Android 14 |
| Audio System | 25W x 2 Front Soundbar + 20W Subwoofer (70W total) |
| Microphone | 8-Microphone Array (Built-in) |
| Connectivity (Input) | HDMI x4 (Front x2 HDMI 2.1, Rear x2 HDMI 2.1 with ARC/CEC/HDCP), VGA x1, DisplayPort x1, Audio x1, RS232 x1, Micro SD Slot, OPS Slot x1 |
| Connectivity (Output) | HDMI x1 (HDMI 2.1), Audio Line Out x1, SPDIF (Optical) x1 |
| USB Ports | Type-A x5 (USB 3.2 Gen 1 / SmartPort USB), Type-B x2, Type-C x3 (Up to 65W PD, DP1.2, Ethernet 100M) |
| LAN | Dual RJ45 Ports (10/100/1000M) |
| Special Features | NFC Reader, Light Sensor, Pen Sensor (Write Away), Simple LAN Sharing, USB SmartPort |
| Compatibility | RGB/HDMI PC: 1920x1080 @60Hz; HDMI/DP: 3840x2160 |
| Software Suite | myViewBoard for Android, myViewBoard for Windows (Pro), AirSync Wireless Presentation, ViewSonic Manager, ViewSonic Launcher |
| Power | 100–240V AC ±10%; Power Consumption: On 111.45W, Off <0.5W |
| Mounting | VESA 800x600 mm |
| Dimensions (W x H x D) | 77.05 x 46.36 x 3.36 in (1957 x 1177.6 x 85.5 mm) |
| Weight | Net: 128.88 lb (58.46 kg); Gross: 156.59 lb (71.03 kg) |
| Certifications | EPEAT Silver, Energy Star 8.0, FCC, CE, RoHS, ErP, REACH, TUV Low Blue Light & Flicker-Free |
| Package Contents | Power Cord, USB-C Cable, USB Touch Cable, 2x Passive Pens, Quick Start Guide, RS232 Adapter, Camera Plate, HDMI Cable, Remote Control with Batteries, Screws and Clamps |
| Compatible Slot-in PCs | VPCF5-W33-G1, VPC37-W53-G1, VPC35-W53-G1, VPC-A31-O1 |
