Description

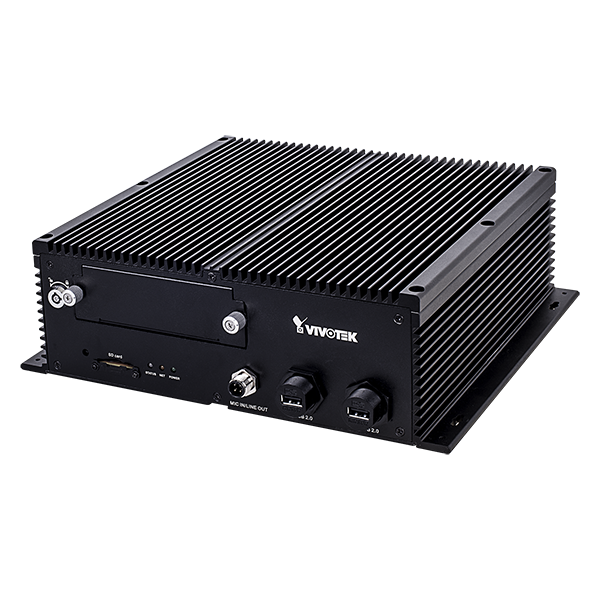

The Vivotek NV9311P-M12 is a rugged, high-performance 8-channel mobile network video recorder (NVR) engineered for demanding transportation surveillance applications. Designed to deliver 1080p real-time monitoring with advanced H.265 compression, it ensures superior video quality while optimizing bandwidth and storage efficiency.
Equipped with 8x 802.3at/af M12 PoE ports, the NV9311P-M12 simplifies camera connectivity and power delivery in harsh mobile environments. Its EN50155 and MIL-STD-810G certified chassis guarantees reliable operation under extreme vibration, shock, and temperature conditions, making it ideal for buses, trains, and other transit vehicles.
The device integrates a built-in G-sensor for vibration and impact alerts, and a GNSS module supporting GPS, GALILEO, and GLONASS for precise location tracking. With LAN, Wi-Fi, and LTE options, as well as seamless compatibility with VAST 2 VMS, the NV9311P-M12 enables real-time remote video streaming, Google Maps-based GPS tracking, and comprehensive fleet management.
Additional features include fisheye dewarp support, programmable power delay, low-voltage protection, and a built-in heater for reliable performance in extreme climates. Compact yet powerful, the NV9311P-M12 is a complete mobile video solution for next-generation transportation safety and fleet intelligence.
| Feature | Specification |
|---|---|
| Model | NV9311P-M12 |
| Product Type | H.265 8-Channel Mobile Network Video Recorder |
| Operating System | Embedded Linux |
| Video Channels | 8 channels real-time live view |
| Video Format | H.265, H.264, MJPEG |
| Decoding Capability | Up to 3840Ć2160 @ 120 fps (4CH); 1920Ć1080 @ 480 fps (16CH) |
| Display Output | HDMI x1, VGA x1 |
| Display Resolution | 3840Ć2160, 1920Ć1080, 1280Ć720 |
| Fisheye Dewarp Modes | 1O, 1P, 1R, 1O3R, 1O8R |
| Audio | G.711, G.726; Mic-in (reserved), Line-out x1 |
| Recording Modes | Continuous, schedule, manual, event, activity adaptive |
| Recording Throughput | 64 Mbps |
| Storage | 1Ć internal 2.5" HDD/SSD; SD card slot (reserved) |
| Backup | Scheduled FTP backup |
| Playback | Up to 4 channels; timeline, calendar, event search, storyboard |
| Network Interface | 10/100/1000 Mbps Ethernet (M12) x1 |
| Wireless Options | Wi-Fi IEEE 802.11a/b/g/n/ac (optional), LTE (optional) |
| Video Throughput (Remote) | 96 Mbps |
| PoE Ports | 8Ć 802.3at/af compliant M12 PoE (total max. 64 W) |
| Protocols | IPv4, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, DDNS, IP Filter |
| GNSS | GPS, GALILEO, GLONASS supported |
| G-Sensor | Built-in with adjustable sensitivity |
| Event Detection | Motion, PIR, tampering, DI/DO, disconnection, storage, GPS, G-sensor |
| Event Actions | Recording, email snapshot, buzzer, PTZ, FTP, DO, fullscreen, send to CMS |
| External Interfaces | USB 2.0 x3, Alarm In x8, Alarm Out x4, RS232 (reserved) |
| Power Input | DC 12Vā48V Ā±10% |
| Power Features | Programmable delay on/off, surge protection, low-voltage protection |
| Power Consumption | Max. 149 W (PoE & heater on); Max. 15 W (heater off, no HDD) |
| Operating Temperature | -40Ā°C ~ 55Ā°C (up to 70Ā°C intermittent) |
| Humidity | 0% ā 95% |
| Dimensions | 284 Ć 230 Ć 90 mm |
| Weight | 4.06 kg (without HDD) |
| Certifications | CE, FCC, VCCI, C-Tick, EN50155, EN61373, UL, CB, EN45545, EN50121-3-2/4, MIL-STD-810G |
| Software Compatibility | VAST 2 VMS, Shepherd, iViewer (iOS & Android) |
| Warranty | 36 months |
