Description

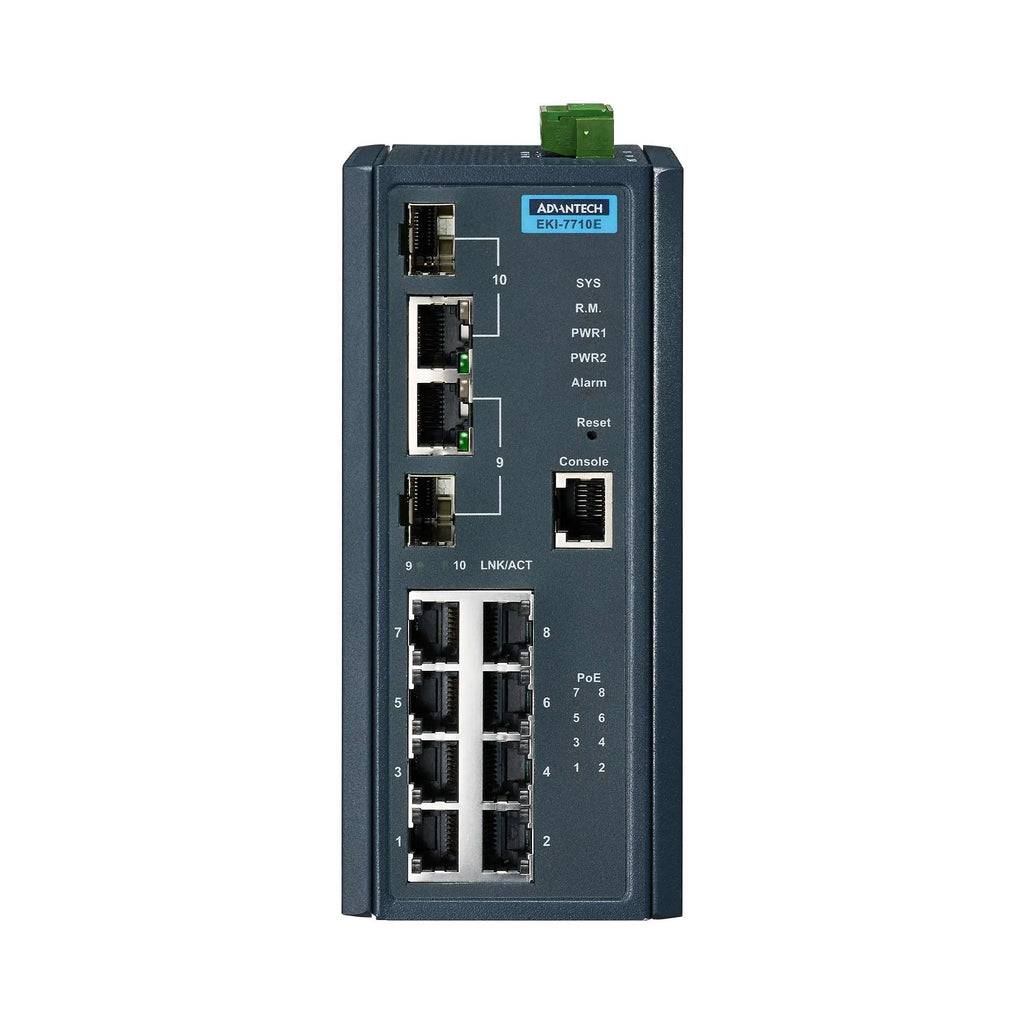

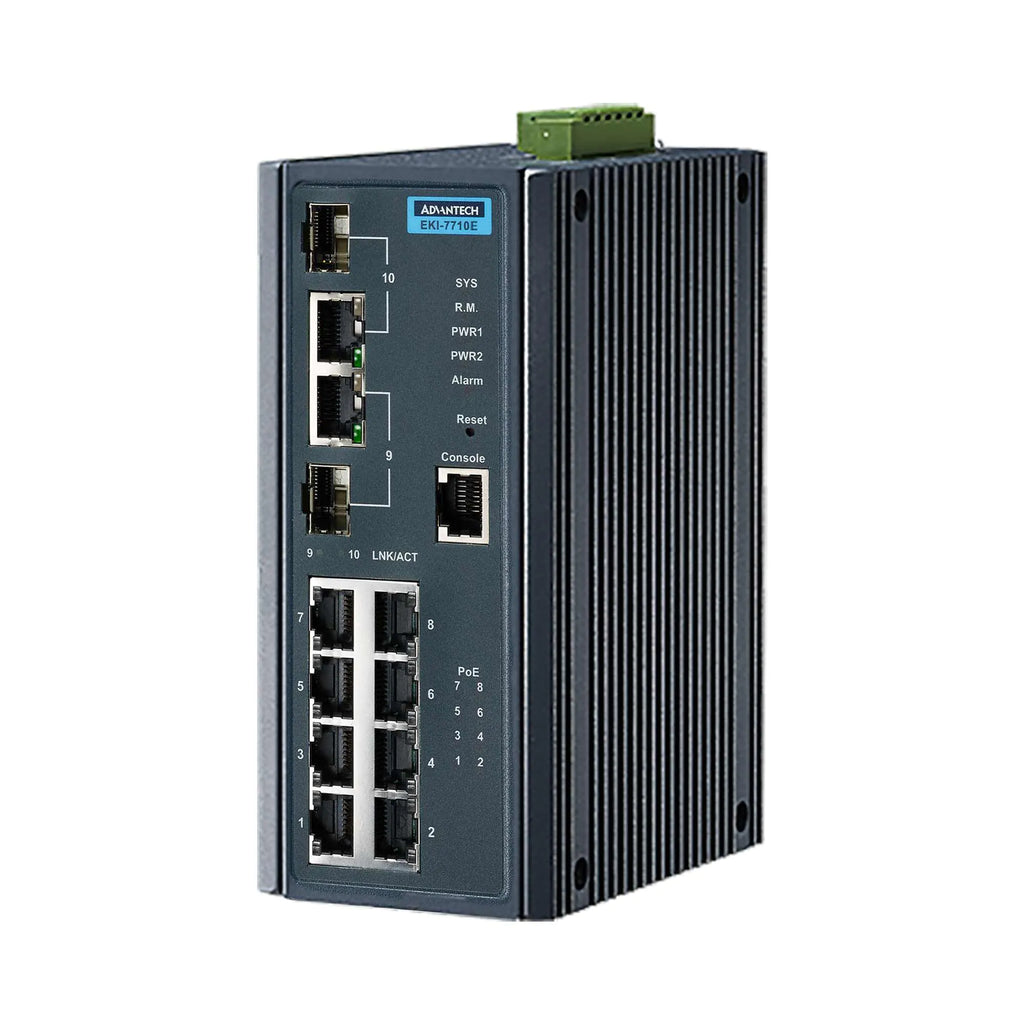

The Advantech EKI-7710E-2CPI-AE is a rugged, industrial-grade managed PoE Ethernet switch designed for mission-critical networking in harsh environments. Equipped with 8 Fast Ethernet PoE ports and 2 Gigabit copper/SFP combo uplink ports, it delivers reliable high-speed connectivity and power for devices such as IP cameras, wireless access points, PLCs, and industrial automation equipment.
Built for industrial resilience, the switch supports wide operating temperatures, redundant dual power inputs, and ultra-fast network recovery with X-Ring Pro technology (<20 ms). Advanced security features including 802.1X authentication, ACL, SNMPv3, HTTPS, SSH, and SFTP ensure secure remote management and stable operation. Its DIN-rail and wall-mount design makes it ideal for factory automation, transportation, and smart infrastructure deployments.
| Specification | Details |
|---|---|
| Brand | Advantech |
| SKU | EKI-7710E-2CPI-AE |
| Product Type | Managed Industrial PoE Ethernet Switch |
| Total Ports | 10 Ports (8 FE + 2 Gigabit Combo) |
| Ethernet Ports | 8 × 10/100BASE-TX RJ-45 |
| Uplink Ports | 2 × 10/100/1000BASE-T or SFP Combo |
| PoE Standard | IEEE 802.3at/af (Ports 1–8) |
| Max PoE Output | Up to 30W per port |
| Switching Capacity | 5.6 Gbps |
| MAC Address Table | 8K Entries |
| Jumbo Frame Support | Up to 10,240 Bytes |
| Redundancy | X-Ring Pro (<20 ms recovery), RSTP/STP, ERPS |
| Management Options | Web, Telnet, SNMP v1/v2c/v3 |
| Security Features | 802.1X, ACL, RADIUS, TACACS+, SNMPv3, HTTPS, SSH |
| Power Input | Redundant Dual 24–48 VDC |
| Power Budget | 120W |
| Relay Output | 1 Fault Relay Output |
| Operating Temperature | -40°C to 75°C (Wide Temp Industrial Grade) |
| Enclosure | Metal Shell, IP30 Rated |
| Mounting Options | DIN-Rail or Wall Mount |
| Dimensions (W × H × D) | 74 × 152 × 105 mm |
| Certifications | UL 62368, CE, FCC Class A, NEMA TS-2, EN 50121-4 |
