Description

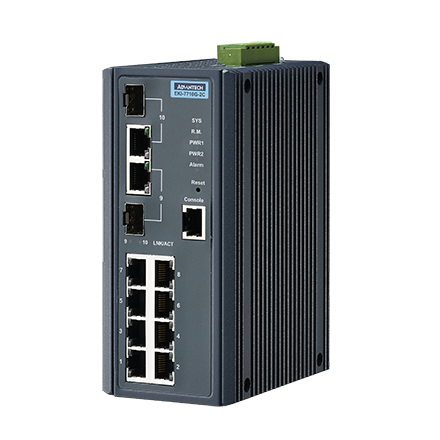

The Advantech EKI-7710G-2C-AE is a high-performance, industrial-grade managed Ethernet switch designed for demanding automation and mission-critical networking environments. It features 8 Gigabit RJ-45 ports plus 2 Gigabit combo ports (Copper/SFP), providing flexible connectivity for a wide range of industrial devices.
Built for network reliability, the switch supports X-Ring Pro redundancy with ultra-fast recovery times under 20 ms, ensuring stable communication even during link failures. It also includes advanced Layer 2 management, cybersecurity protections, and easy deployment tools such as Advantech IXM for faster setup and reduced engineering costs.
With its rugged IP30-rated metal housing, DIN-rail mounting support, and dual redundant power inputs, the EKI-7710G-2C-AE is ideal for factory networks, transportation systems, and industrial control applications.
| Specification | Details |
|---|---|
| Brand | Advantech |
| Model / SKU | EKI-7710G-2C-AE |
| Product Type | Managed Redundant Industrial Ethernet Switch |
| Total Ports | 10 Gigabit Ports |
| RJ-45 Ports | 8 × 10/100/1000BASE-T/TX |
| Combo Ports | 2 × Copper/SFP Combo (mini-GBIC) |
| Console Port | RS-232 (RJ45) |
| Switching Capacity | 20 Gbps |
| Transmission Rate | 14.8 Mpps |
| MAC Address Table | 8K Entries |
| Jumbo Frame Support | Up to 10,240 Bytes |
| Redundancy Protocols | X-Ring Pro (<20 ms), RSTP/STP, MSTP, ERPS |
| VLAN Support | 802.1Q, QinQ (802.1ad), VLAN ID 1–4094 |
| Security Features | 802.1X, ACL, RADIUS, TACACS+, SNMPv3, HTTPS, SSH, SFTP |
| Management Methods | Web UI, SNMP v1/v2c/v3, Telnet, NMS Support |
| Power Input | Dual Redundant 12–48 VDC |
| Power Consumption | 12.1W @ 48V DC |
| Relay Output | 1 Fault Relay Output |
| Enclosure | Metal Housing |
| Protection Rating | IP30 |
| Mounting Options | DIN-Rail or Wall Mount |
| Operating Temperature | -10°C to 60°C |
| Dimensions (W × H × D) | 74 × 152 × 105 mm |
| Certifications | UL 62368, CE, FCC Class A, IEC 62443-4-2 SL2 |
