Description

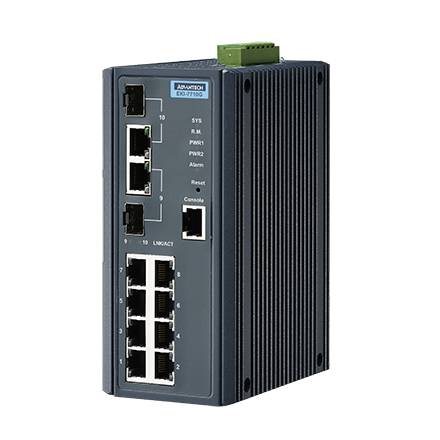

The Advantech EKI-7710G-2CI-AE is an industrial-grade managed Gigabit Ethernet switch designed for demanding automation and transportation networks. It features 8 Gigabit RJ-45 ports plus 2 Gigabit copper/SFP combo ports, delivering flexible connectivity for mixed device environments.
Built with advanced redundancy technologies such as X-Ring Pro and RSTP/STP, the switch ensures ultra-fast recovery times under 20 ms, providing continuous network stability in mission-critical operations.
With wide operating temperature support (-40°C to 75°C), dual redundant 12–48 VDC power inputs, and robust security functions including 802.1X, ACL, SNMPv3, SSH, and HTTPS, the EKI-7710G-2CI-AE is ideal for harsh industrial applications requiring reliability, performance, and secure remote management.
| Specification | Details |
|---|---|
| Brand | Advantech |
| Model / SKU | EKI-7710G-2CI-AE |
| Product Type | Managed Industrial Ethernet Switch |
| Total Ports | 10 Ports (8 RJ-45 + 2 Combo) |
| RJ-45 Ports | 8 × 10/100/1000BASE-T/TX |
| Combo Ports | 2 × Gigabit Copper/SFP (mini-GBIC) |
| Switching Capacity | 20 Gbps |
| Transmission Rate | 14.8 Mpps |
| Redundancy Support | X-Ring Pro, RSTP/STP, MSTP, ERPS |
| Recovery Time | < 20 ms |
| Power Input | Dual Redundant 12–48 VDC |
| Power Consumption | 12.1W @ 48 VDC |
| Relay Output | 1 Fault Relay Output |
| Security Features | 802.1X, ACL, RADIUS, TACACS+, SNMPv3, HTTPS, SSH, SFTP |
| Management Methods | Web, Telnet, SNMP v1/v2c/v3, NMS Support |
| Protection Class | IP30 |
| Installation Options | DIN-Rail or Wall Mount |
| Operating Temperature | -40°C to 75°C (Wide Temp Model) |
| Enclosure Material | Metal Housing |
| Dimensions (W×H×D) | 74 × 152 × 105 mm |
| Certifications | UL 62368, CE, FCC Class A, IEC 62443-4-2 SL2 |
