Description

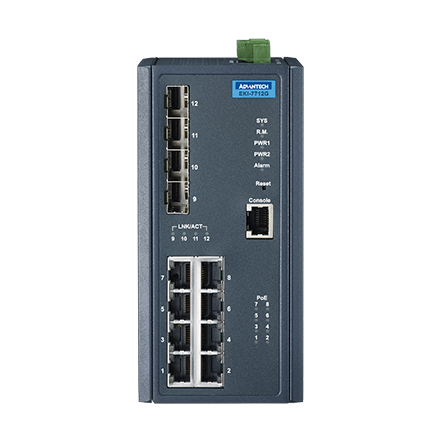

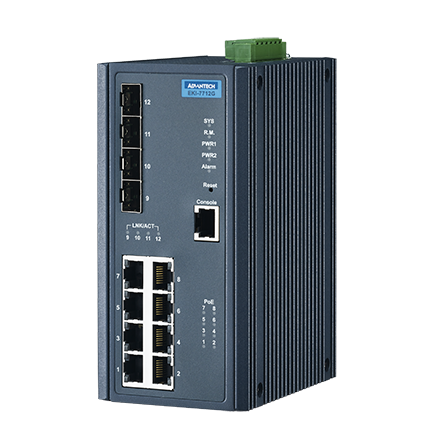

The Advantech EKI-7712G-4FPI-AE is a rugged, high-performance managed industrial PoE switch designed for demanding industrial networking environments. It features 8 Gigabit Ethernet PoE ports supporting IEEE 802.3af/at, delivering up to 30W per port with a total PoE power budget of 240W, ideal for powering IP cameras, wireless access points, and industrial automation devices.
Equipped with 4 SFP (mini-GBIC) fiber uplink ports, the switch enables reliable long-distance connectivity for industrial backbone networks. Advanced management capabilities including Web, Telnet, and SNMP, along with enterprise-grade security features such as 802.1X authentication, RADIUS, TACACS+, and MD5 encryption, ensure secure and efficient network operations.
Built to withstand harsh conditions, the EKI-7712G-4FPI-AE operates in extreme temperatures from -40°C to 75°C, making it suitable for factory floors, transportation systems, and outdoor installations. Backed by a 5-year warranty, it provides long-term reliability for mission-critical applications.
| Specification | Details |
|---|---|
| Brand | Advantech |
| Manufacturer Part Number | EKI-7712G-4FPI-AE |
| Product Type | Managed Industrial PoE Ethernet Switch |
| Network Device Type | Switch |
| Connectivity Technology | Wired |
| Data Transfer Rate | 1 Gbps (Gigabit Ethernet) |
| Total Ports | 13 Ports |
| RJ-45 Ports | 8 × 10/100/1000BASE-T/TX Gigabit PoE |
| SFP Ports | 4 × SFP (mini-GBIC) |
| Additional Interface | RS-232 (RJ45) Console Port |
| PoE Standard Support | IEEE 802.3af/at |
| Max PoE Output per Port | Up to 30W |
| Total PoE Power Budget | 240W |
| MAC Address Table Size | 8K |
| Jumbo Frame Support | Up to 10240 Bytes |
| Management Protocols | Web, Telnet, SNMP |
| Security Features | 802.1X, RADIUS, TACACS+, MD5 |
| Networking Standards | IEEE 802.1D, 802.1s, 802.1w |
| Power Requirement | 46–57 VDC |
| Operational Power Consumption | 12.1 Watts |
| MTBF | 1,001,782 Hours |
| Operating Temperature Range | -40°C to 75°C |
| Storage Temperature Range | -40°C to 85°C |
| Dimensions (W × D × H) | 2.91 × 4.13 × 5.98 Inches |
| Weight | 1.1 kg (Approx. 1.48 lbs listed) |
| Warranty | 5-Year Warranty |
| UNSPSC Code | 43222612 |
| TAA Compliant | No |
