Description

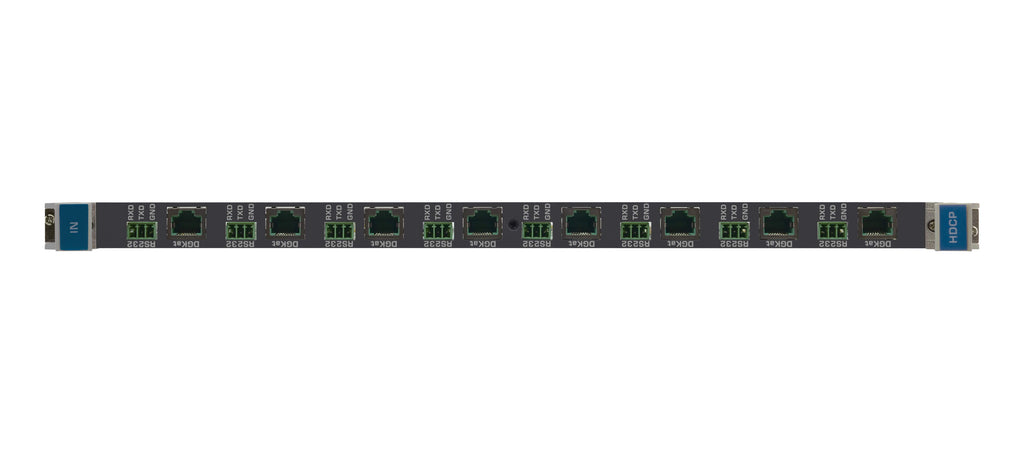

The Kramer DGKat-IN8-F64/STANDALONE is an eight-channel HDMI and RS-232 over DGKat twisted-pair input card designed for the VS-6464 Modular Multi-Format Digital Matrix Switchers. Engineered for high-performance signal distribution, it delivers reliable long-distance HDMI transmission, full HDCP/HDMI compliance, and advanced DGKat™ signal integration technology.
Supporting data rates up to 4.95Gbps, 3D pass-through, and Kramer’s proprietary equalization and re-clocking technologies, this card ensures stable, high-quality signal delivery across demanding AV environments. With Power Connect support for compatible transmitters and robust RS-232 control, it is ideal for scalable, professional AV matrix switching applications.
| Category | Details |
|---|---|
| Input Type | 8 × TP (RJ-45) HDMI/RS-232 DGKat inputs |
| Serial Ports | 8 × RS-232 ports (3-pin terminal blocks) |
| Max Data Rate | 4.95Gbps total (1.65Gbps per channel) |
| System Range | Up to 90m (295ft) @ 1080i/60Hz; up to 70m (230ft) @ 1080p/60Hz with Kramer DGKat cables |
| Standard Compliance | HDMI 1.3a, HDCP 1.4 |
| 3D Pass-Through | Supported |
| RS-232 | Bidirectional local port |
| Processing Technology | Kramer Equalization & Re-Clocking |
| Power Connect | Supported for compatible TP transmitters |
| Operating Temperature | 0°C to +40°C (32°F to 104°F) |
| Storage Temperature | –40°C to +70°C (–40°F to 158°F) |
| Humidity | 10%–90% non-condensing |
| Regulatory Compliance | CE, FCC, RoHS, WEEE |
| Product Dimensions (W × D × H) | 39.50 × 18.00 × 2.00 cm (15.55" × 7.09" × 0.79") |
| Product Weight | 0.5 kg (1.1 lbs) |
| Shipping Dimensions | 47.70 × 23.50 × 4.80 cm (18.78" × 9.25" × 1.89") |
| Shipping Weight | 0.8 kg (1.8 lbs) |
