Description

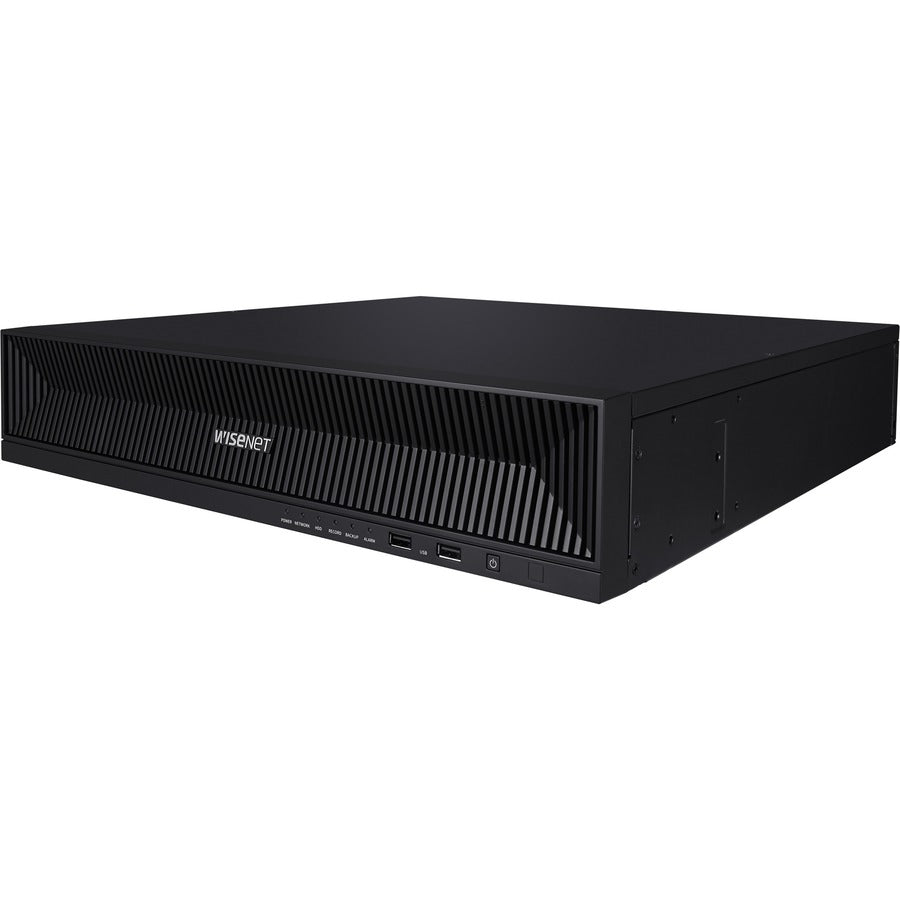

The Wisenet XRN-1620B2 is a high-performance 16-channel 4K network video recorder designed for professional surveillance environments that require reliable recording, advanced analytics support, and large-capacity storage. This model includes a pre-installed 12 TB HDD, with expansion available up to 80 TB using eight SATA drives.
Supporting resolutions up to 32MP and a maximum recording throughput of 140Mbps, the XRN-1620B2 ensures smooth capture from high-resolution cameras. It offers HDMI/VGA monitor outputs, user-friendly UI/UX, fisheye dewarping (via CMS), dynamic event support, AI search with Wisenet AI cameras, and robust H.265/H.264/MJPEG codec compatibility.
Ideal for medium to large surveillance deployments, this NVR provides multi-channel playback, smart search, extensive event triggers/actions, multi-user access, failover (N+1), and easy configuration via QR code.
| Category | Specification |
|---|---|
| Model | Wisenet XRN-1620B2 |
| Channels | Up to 16 channels |
| Pre-installed Storage | 12 TB HDD |
| HDD Bays | 8 × SATA (up to 80 TB total) |
| Supported HDD Size | Up to 10TB per drive |
| Supported Resolutions | CIF to 32MP |
| Recording Bandwidth | Max. 140Mbps |
| Codec Support | H.265, H.264, MJPEG |
| Monitor Outputs | HDMI (4K 3840×2160@30Hz), VGA (1080p@30Hz) |
| Display Modes | Dynamic layout, clone mode (up to 16 divisions), expand mode (up to 9 divisions) |
| AI Features | AI search (Wisenet AI cameras), object attribute search |
| Fisheye Dewarping | Supported via CMS |
| Event Triggers | Alarm input, video loss, camera events (motion, analytics, defocus, audio), dynamic event, user event |
| Event Actions | Email, push, PTZ preset, alarm out, buzzer, monitor out, FTP, SUNAPI command, shutdown |
| Playback | Max. 32Mbps playback bandwidth, up to 64CH simultaneous (local 16CH, remote 16CH per user) |
| Network Protocols | IPv4/IPv6, TCP/IP, UDP, RTP/RTSP, NTP, HTTP/HTTPS, DHCP, SMTP, IGMP, SNMP, ONVIF Profile-S, SUNAPI |
| Audio Support | 16CH network audio, G.711/G.726/AAC, 2-way audio |
| Remote Users | Search (3), Live Unicast (10), Multicast (20) |
| Redundancy | Failover N+1, ARB support |
| USB Ports | 3 total (Front: 2×USB 2.0, Rear: 1×USB 3.0) |
| Alarm I/O | 4 × input, 2 × output |
| Power Input | 100–240VAC ±10%, 50/60Hz |
| Power Consumption | Approx. 130W |
| Operating Temperature | 0°C to +40°C (32°F to 104°F) |
| Operating Humidity | 20% to 85% RH |
| Dimensions | 440 × 89.8 × 428.4 mm (17.32 × 3.54 × 16.87 in) |
| Weight | 5.71 kg (12.59 lb) |
| Material / Color | Metal chassis / Black |
