Description

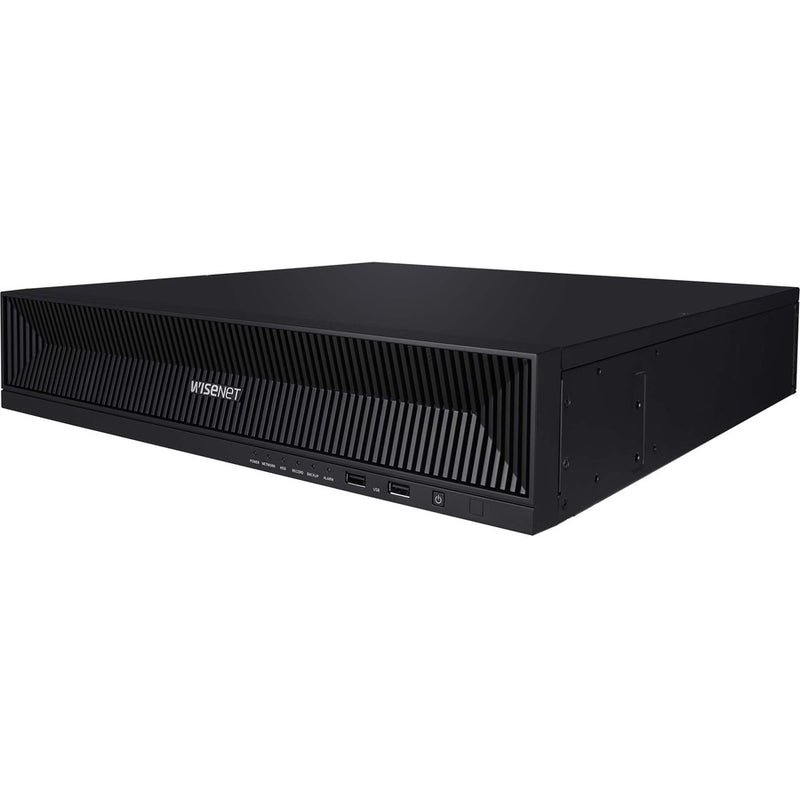

The Wisenet XRN-1620SB1 is a high-performance 16-channel 4K NVR designed for medium to large surveillance deployments requiring reliable recording, advanced analytics, and intuitive system management. Equipped with 12 TB of pre-installed storage, this NVR supports up to 32MP camera resolution, ensuring crystal-clear video capture across all connected channels.
With 16 built-in PoE+ ports, the unit enables true plug-and-play installation while delivering up to 200W PoE budget for cameras. Its 140Mbps recording throughput, H.265/H.264/MJPEG support, and dual HDMI/VGA display output provide smooth monitoring and playback. Integration with Wisenet AI cameras unlocks AI search capabilities, while Dynamic Event support allows new camera event types without system updates.
Designed for operational efficiency, the XRN-1620SB1 includes multi-channel simultaneous playback, fisheye dewarping, bookmark management, secure remote access, and powerful device management tools. With four SATA bays (supporting up to 24TB total storage) and RAID-1, this NVR ensures scalable performance and data protection in demanding environments.
| Category | Specification |
|---|---|
| Channels | 16 channels |
| Max Camera Resolution | Up to 32MP |
| Recording Throughput | Max. 140Mbps |
| Video Codecs | H.265, H.264, MJPEG |
| Display Outputs | HDMI (4K 3840×2160 30Hz), VGA (1080p 30Hz) |
| Multi-Screen Display | Dynamic layouts, clone/expand modes |
| Playback Bandwidth | Max. 32Mbps |
| Simultaneous Playback | Up to 16CH local / 16CH remote per user |
| Fisheye Dewarping | Supported (CMS) |
| Storage | 12 TB HDD Installed; 4× SATA bays (max 24TB), supports up to 6TB per drive |
| RAID | RAID-1 |
| PoE Ports | 16× PoE+ (10/100Mbps), 200W total budget |
| Network Interfaces | 2× RJ-45 LAN/WAN (1Gbps) |
| Audio | 16CH network audio, 1 audio out |
| Alarms | 4 inputs, 2 outputs |
| USB Ports | 2× USB 2.0 front, 1× USB 3.0 rear |
| AI & Analytics | AI search with Wisenet AI cameras |
| Event Triggers | Video loss, MD, analytics, audio, defocus, camera events, Dynamic Event |
| Event Actions | Email, push, PTZ preset, alarm out, buzzer, FTP, monitor out, SUNAPI |
| Remote Access | Windows/macOS, Chrome/Edge/Safari, Wisenet Mobile |
| Security | IP filtering, access logs, encryption, signed firmware |
| Power Input | 100–240VAC, 50/60Hz |
| Power Consumption | Max. 310W |
| Operating Temperature | 32°F to 104°F (0°C to +40°C) |
| Dimensions | 440 × 89.8 × 428.4 mm (17.32 × 3.54 × 16.87 in.) |
| Weight | 5.76 kg (12.70 lb) |
