Description

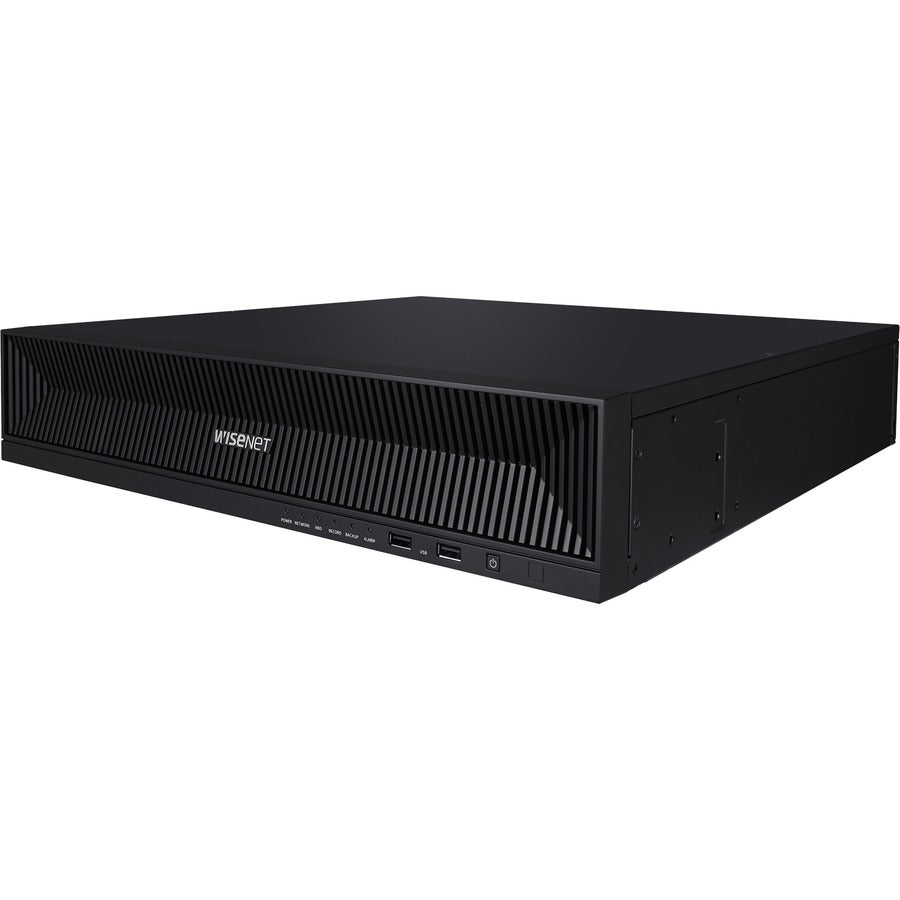

The Wisenet XRN-1620B2-16TB is a professional-grade 16-channel 4K NVR designed for high-resolution surveillance environments requiring reliability, scalability, and advanced analytics. It supports up to 32MP camera resolution, delivers 140Mbps recording bandwidth, and comes pre-installed with 16TB of storage, expandable up to 80TB via eight internal SATA drives.
Engineered with H.265/H.264/MJPEG compression, dual-monitor (HDMI/VGA) display, fisheye dewarping, WiseStream technology, and AI search when paired with Wisenet AI cameras, this NVR ensures efficient monitoring and accelerated event investigation. Additional features include failover (N+1), Automatic Recovery Backup (ARB), dynamic event handling, and a plugin-free web interface. Ideal for commercial, enterprise, and critical security deployments.
| Category | Specification |
|---|---|
| Channels | 16CH network camera inputs |
| Max Camera Resolution | Up to 32MP |
| Recording Bandwidth | 140Mbps max |
| Playback Bandwidth | 32Mbps max |
| Compression Formats | H.265, H.264, MJPEG |
| Display Output | HDMI (4K UHD), VGA (FHD) |
| Multi-Screen Display | Up to 16 divisions (local), 1/2H/2V/3V/4/6/8/9 (web) |
| Local Display Modes | Clone, Expand, Virtual channel view |
| Recording Modes | Normal, Dual stream, Schedule, Event (Pre/Post), Bookmark |
| Event Triggers | Alarm input, video loss, camera analytics, defocus, audio, dynamic event, user event |
| Event Actions | Email, push, PTZ preset, alarm out, buzzer, monitor out, FTP, shutdown |
| Simultaneous Playback | Up to 64CH (16 local + 16×3 remote users) |
| Fisheye Dewarping | Supported (CMS) |
| Storage Capacity | 8 × SATA bays (up to 10TB per drive, 80TB max) |
| Pre-Installed Storage | 16TB HDD |
| Backup Options | BU/EXE/AVI (GUI), JPG/AVI (network) |
| Network Protocols | IPv4/IPv6, TCP/IP, UDP, RTP/RTSP, HTTP/HTTPS, DHCP, SMTP, IGMP, SNMP, ONVIF Profile S, SUNAPI |
| Audio | 16CH input (network), G.711/G.726/AAC |
| Remote Users | Search (3), Live Unicast (10), Multicast (20) |
| Security | IP filtering, user access logs, 802.1x, signed firmware, device certificate |
| Viewer Compatibility | WAVE, SSM, Webviewer, Smart Viewer, Wisenet Mobile |
| Mobile Support | iOS & Android, QR-code P2P setup |
| Redundancy | Failover N+1, ARB support |
| Interface Ports | HDMI ×1, VGA ×1, Audio Out ×1, RJ-45 ×2 (1Gbps), Alarm In ×4, Alarm Out ×2, USB ×3 (2× front USB2.0, 1× rear USB3.0) |
| Operating System | Embedded Linux |
| Operating Temperature | 0°C to +40°C (32°F to 104°F) |
| Humidity | 20%–85% RH |
| Power Input | 100–240VAC ±10%, 50/60Hz |
| Power Consumption | 130W |
| Dimensions | 440 × 89.8 × 428.4 mm (17.32 × 3.54 × 16.87 in) |
| Weight | 5.71 kg (12.59 lb) |
| AI Search Support | Compatible with Hanwha/Wisenet AI cameras |
