Description

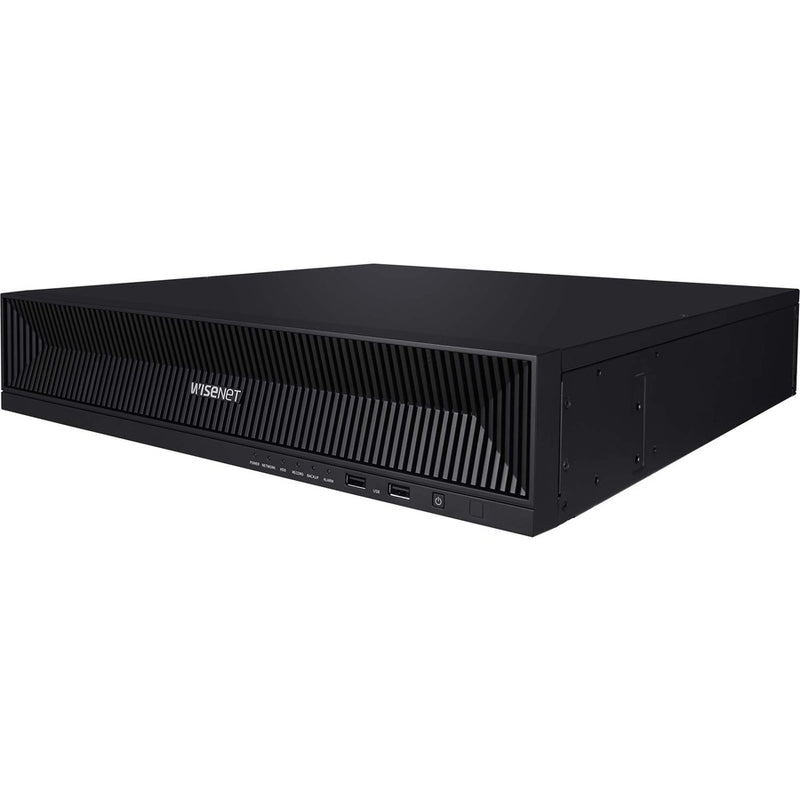

The Wisenet XRN-1620SB1 is a powerful 16-channel 4K NVR designed for professional surveillance environments requiring smooth recording, efficient monitoring, and intuitive control. With a built-in PoE+ switch, advanced AI search capabilities, and a highly responsive UI/UX, this NVR streamlines installation and daily operation.
Its timeline preview feature lets users hover and preview video clips instantly, accelerating multi-channel search workflows. The integrated live monitoring interface provides real-time status updates, digital PTZ control, and fast access to major events with support for up to 100 bookmarks. Dynamic Event support ensures new camera event types can be recognized without a system software update.
With up to 140 Mbps recording bandwidth, 32MP camera support, and dual HDMI/VGA outputs, the XRN-1620SB1 delivers high-performance recording and playback for medium to large surveillance deployments—all backed by Hanwha Vision’s reliable embedded Linux platform.
| Category | Specification |
|---|---|
| Channels & Video | 16 channels, up to 32MP resolution supported |
| Recording Bandwidth | Maximum 140 Mbps |
| Compression | H.265, H.264, MJPEG |
| Display Output | HDMI (4K UHD), VGA (1080p) |
| Multi-Screen Display | Dynamic layouts, clone mode (up to 16 div.), expand mode (up to 9 div.) |
| AI Functions | AI search when used with Wisenet AI cameras |
| Event Support | Dynamic Event support (new camera events without software updates) |
| Search & Playback | Timeline preview, bookmark search (up to 100), multi-channel playback |
| PoE Ports | 16× PoE+ ports (total PoE budget: 200W) |
| Storage | 16 TB HDD included; 4× SATA bays (supports up to 24TB total) |
| RAID | RAID 1 |
| Network Protocols | IPv4/IPv6, TCP/IP, UDP/IP, RTP/RTSP, NTP, HTTP/HTTPS, DHCP, SMTP, SNMP, ONVIF, SUNAPI |
| Remote Users | Max 4 users (local 1, remote 3) |
| Mobile Support | iOS, Android (live 16ch, playback 4ch) |
| Power Input | 100–240 VAC, 50/60 Hz |
| Max Power Consumption | 310W |
| Operating Temperature | 0°C to +40°C (32°F to 104°F) |
| Dimensions | 440 × 89.8 × 428.4 mm (17.32 × 3.54 × 16.87 in.) |
| Weight | 5.76 kg (12.70 lb) |
